Steering System Noise Diagnosis

There is some noise in all power steering systems. One of most common is a hissing sound evident at standstill parking. Hiss is a very high frequency noise similar to that experienced while slowly closing a water tap. The noise is present in every valve and results from high velocity fluid passing valve orifice edges. There is no relationship between this noise and performance of vehicles steering system. Hiss may be expected when steering wheel is at end of its travel or slowly turning when vehicle is at a standstill.

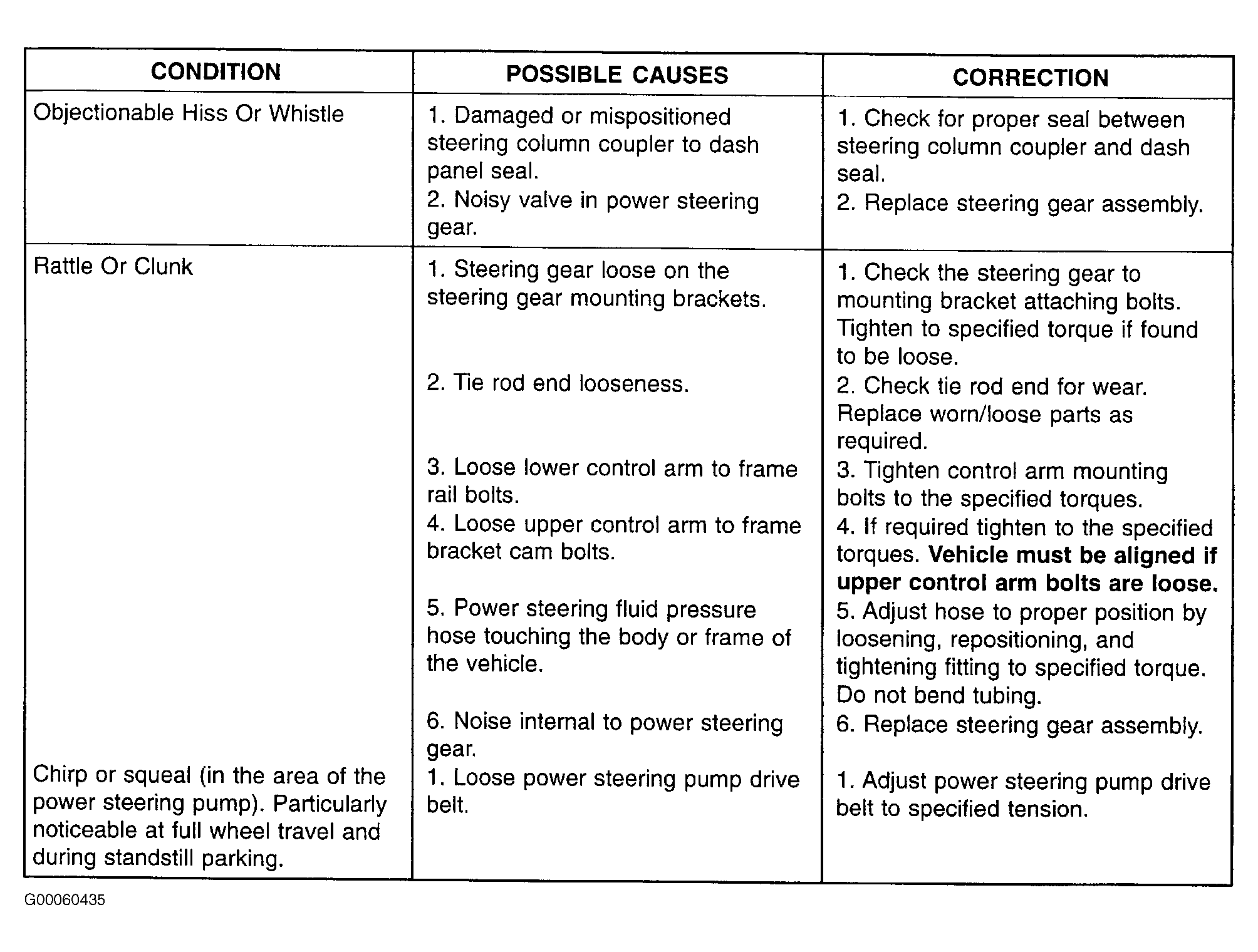

Fig 1: Symptom Diagnosis & Testing - Power Steering (1 Of 2)

Courtesy of CHRYSLER CORP.

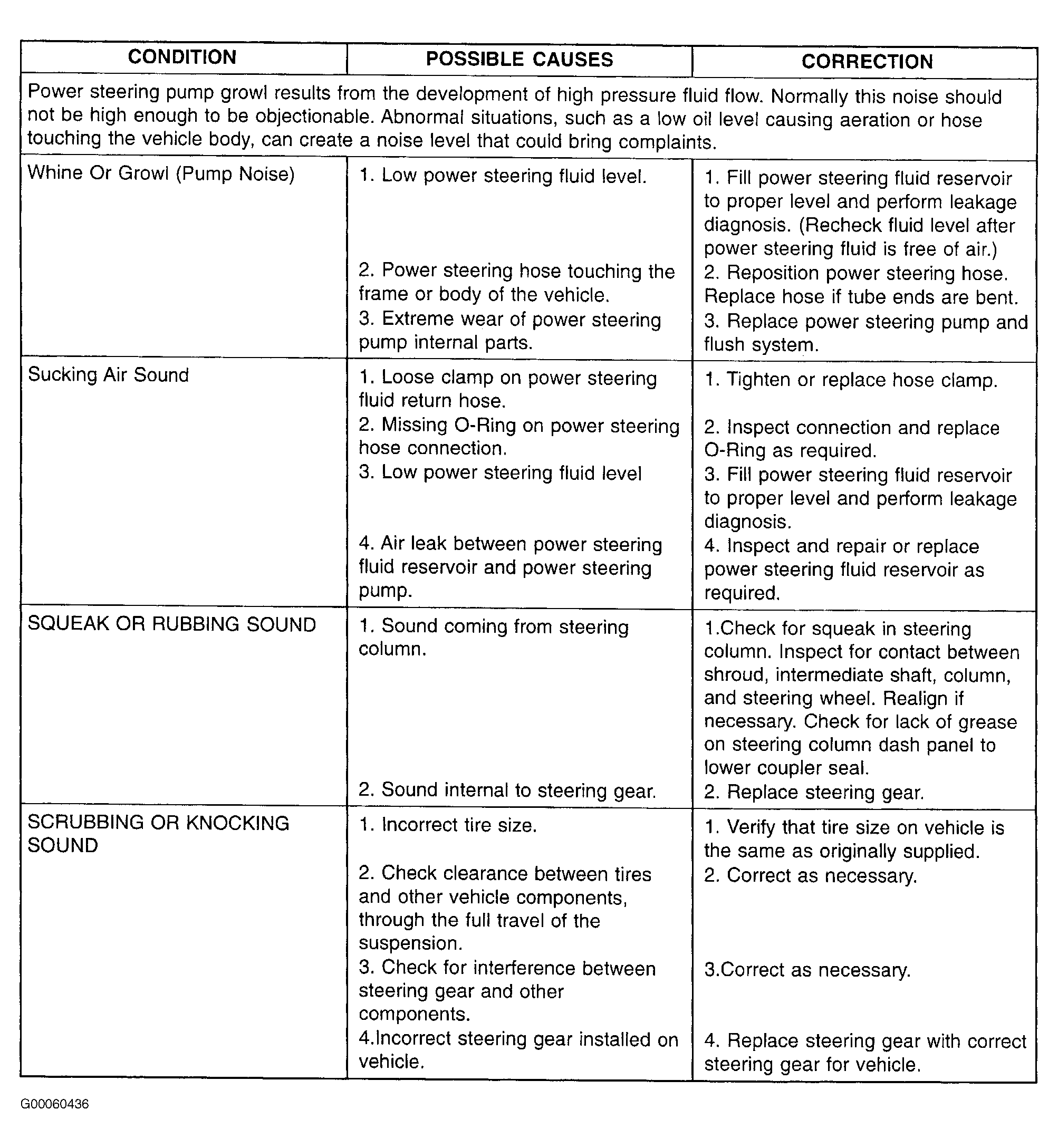

Fig 2: Symptom Diagnosis & Testing - Power Steering (2 Of 2)

Courtesy of CHRYSLER CORP.

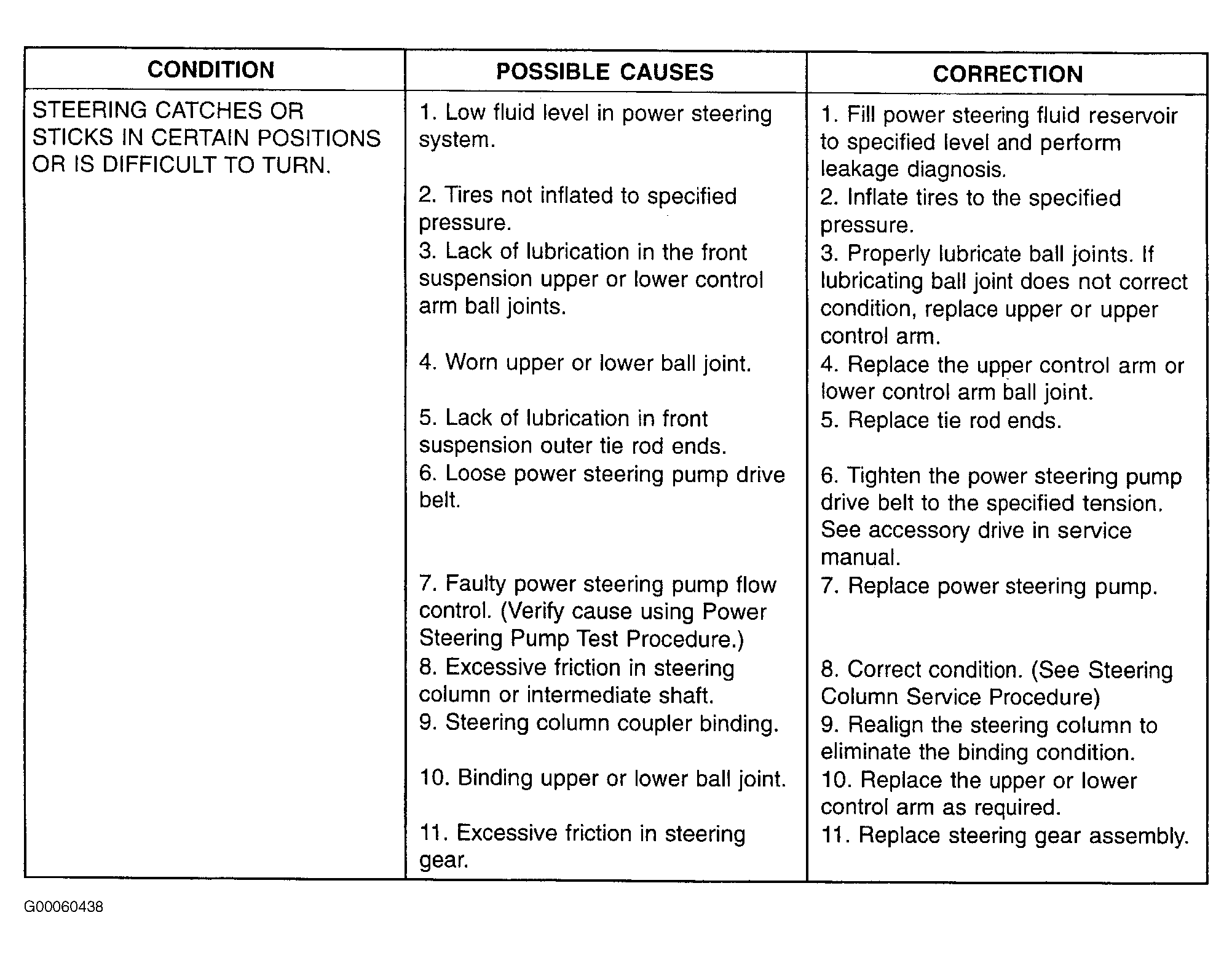

Fig 3: Symptom Diagnosis & Testing - Binding Sticking Seized

Courtesy of CHRYSLER CORP.

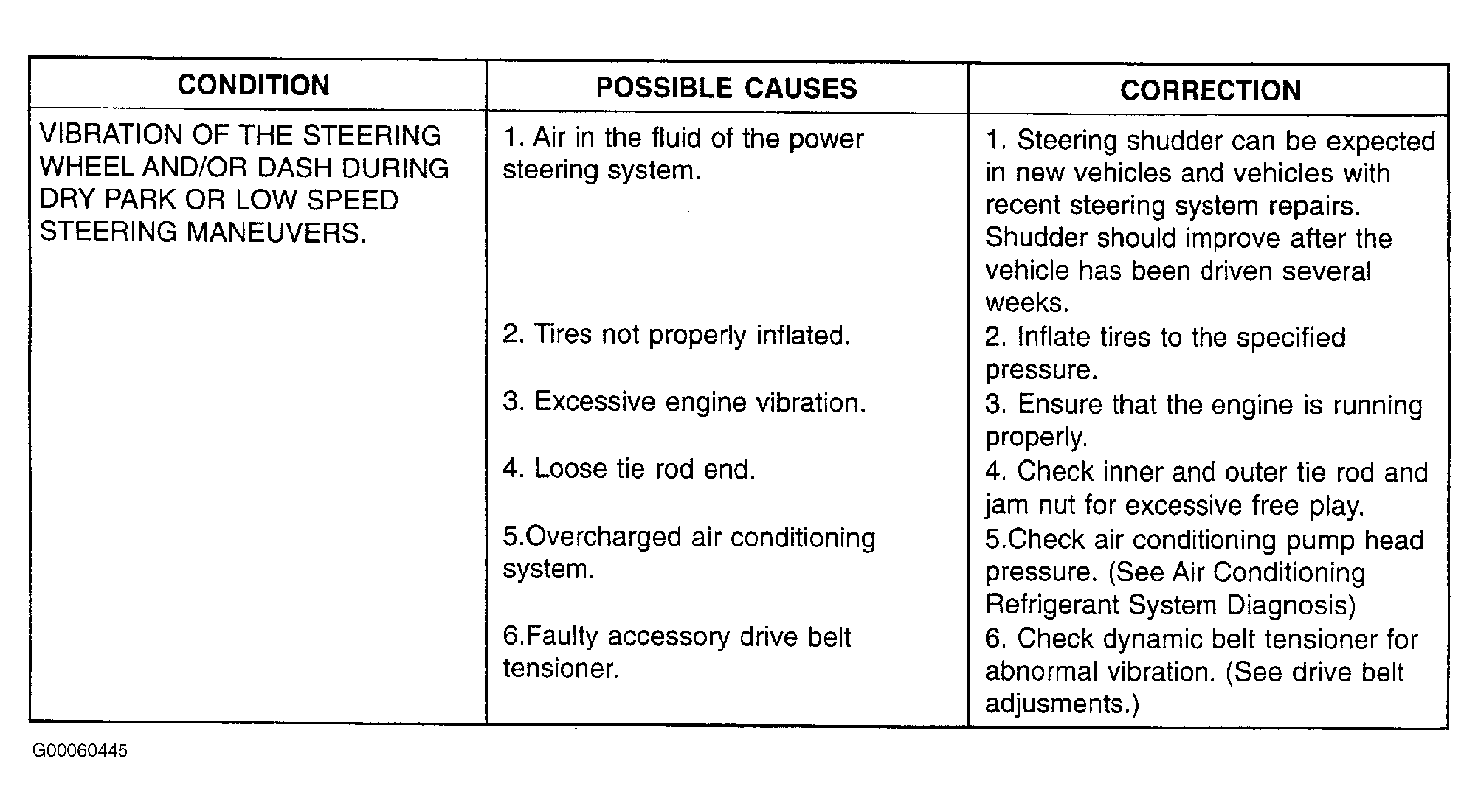

Fig 4: Symptom Diagnosis & Testing - Shake Shudder Vibration

Courtesy of CHRYSLER CORP.

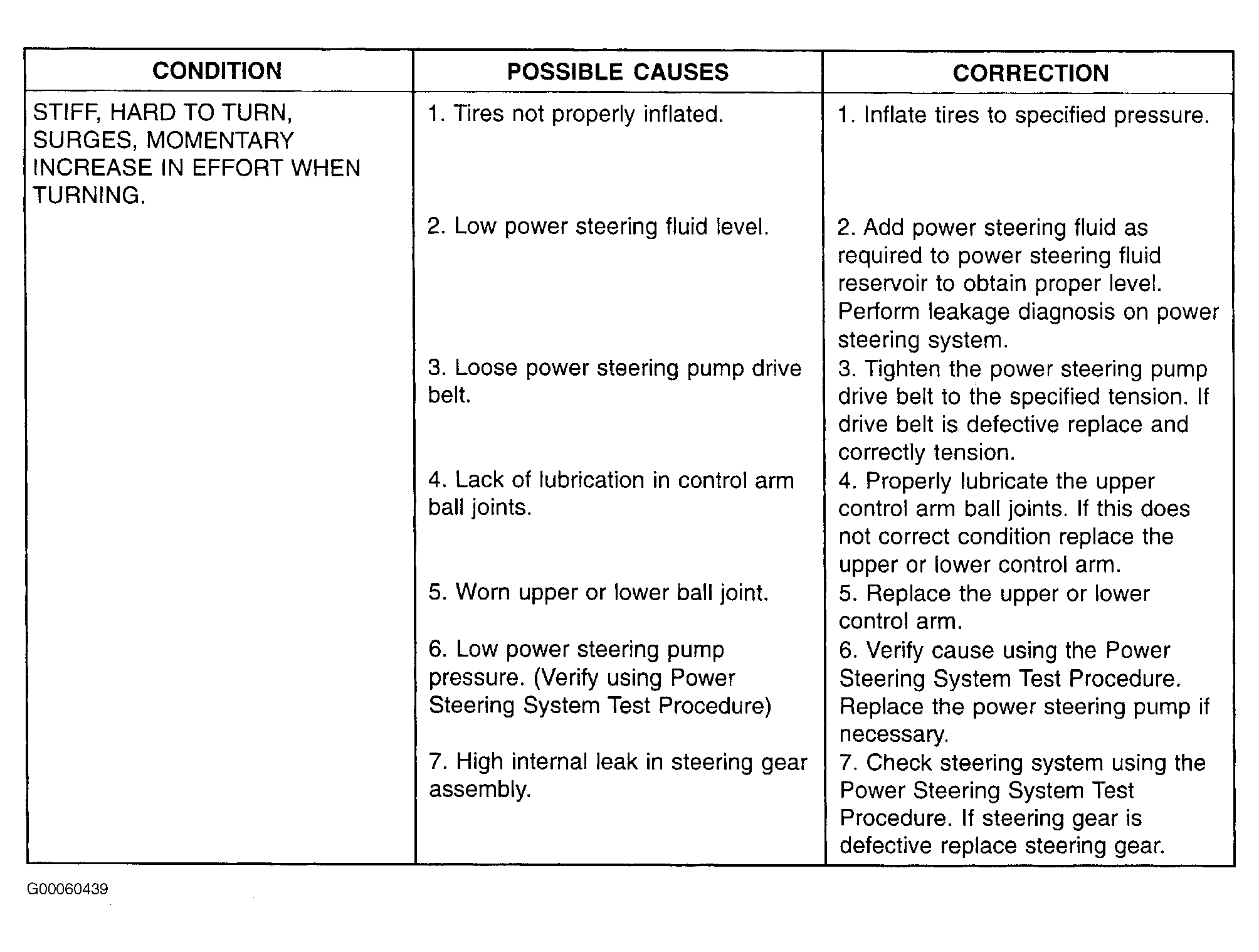

Fig 5: Symptom Diagnosis & Testing - Low Assist, No Assist, Hard Steering

Courtesy of CHRYSLER CORP.

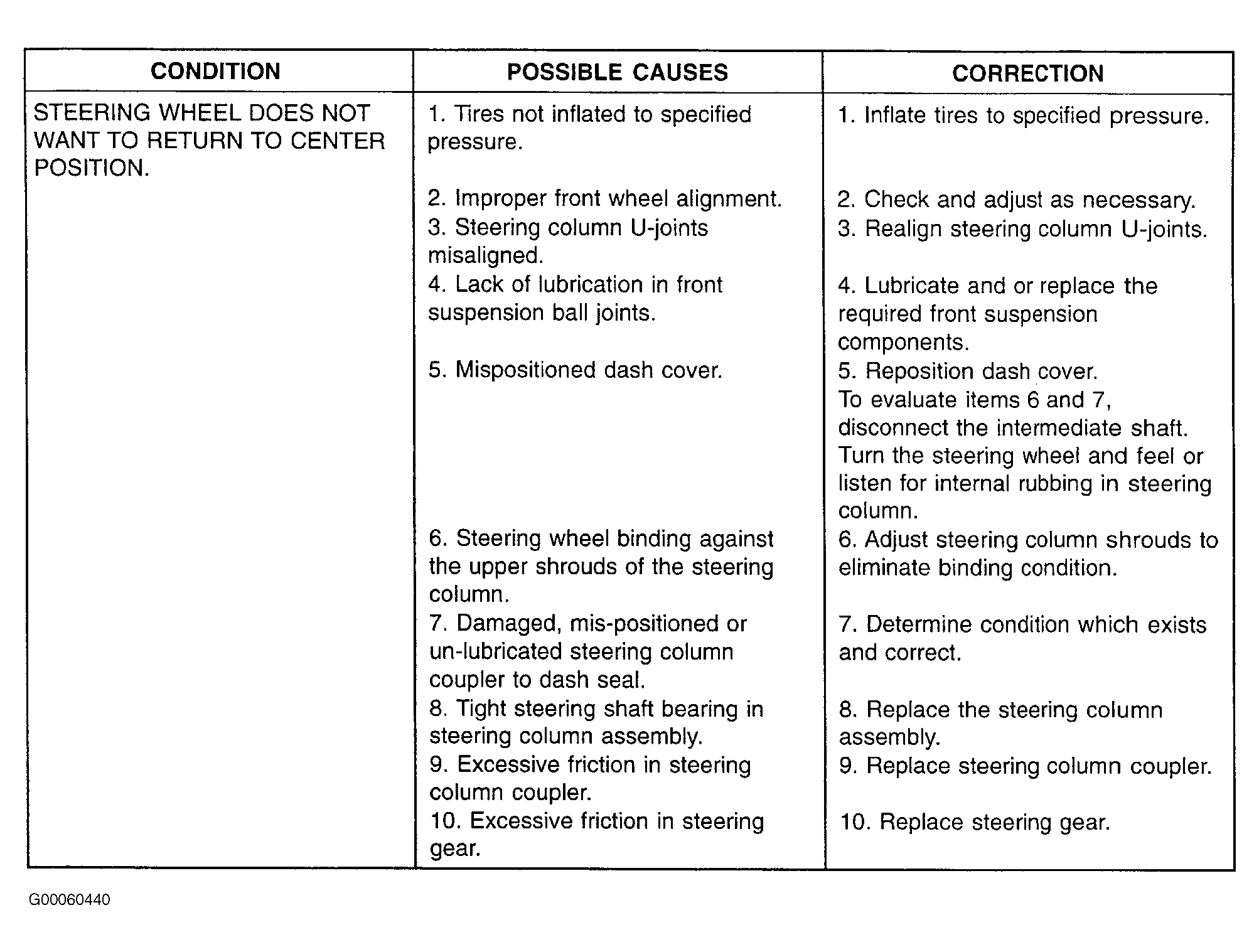

Fig 6: Symptom Diagnosis & Testing - Poor Return To Center

Courtesy of CHRYSLER CORP.

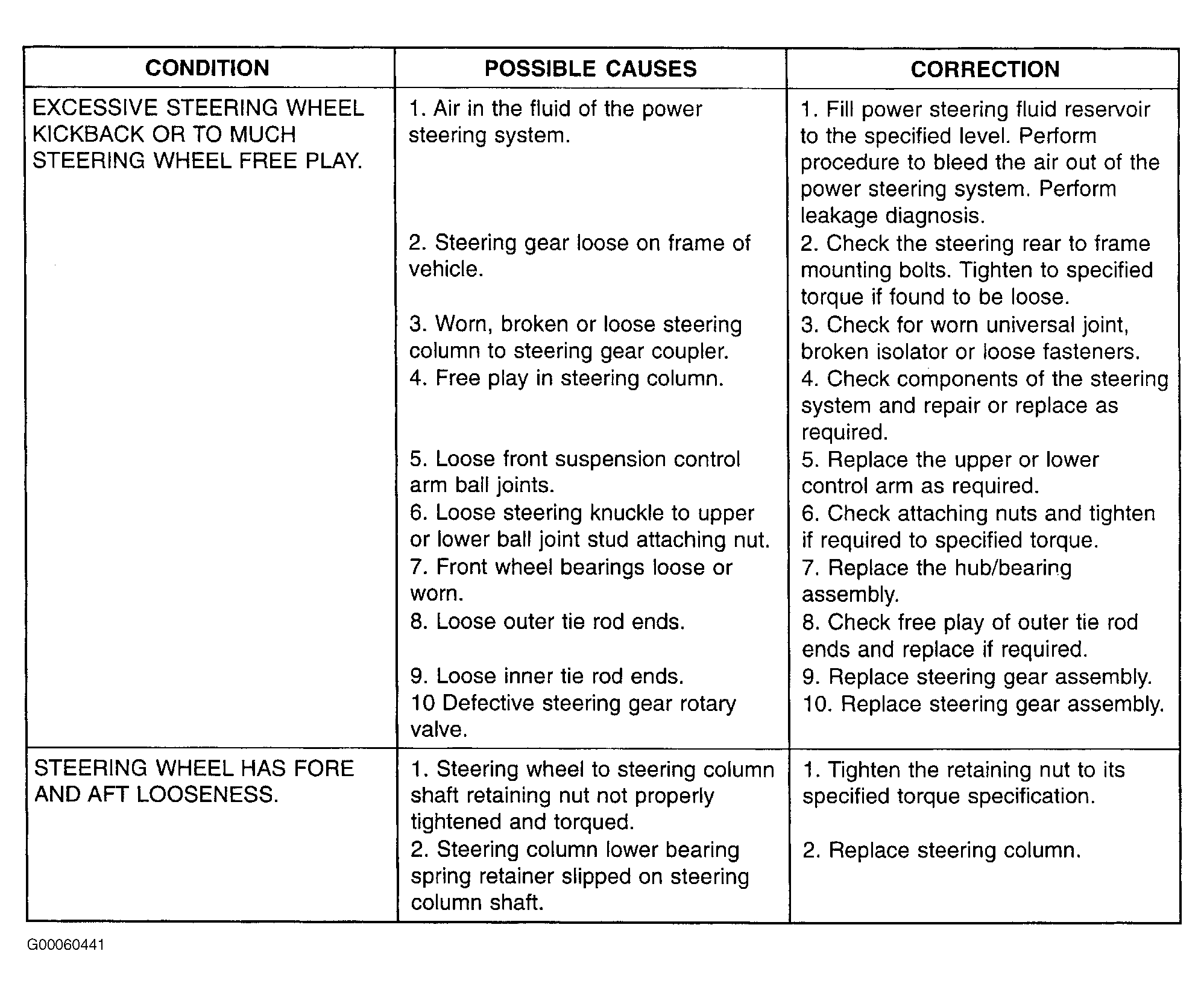

Fig 7: Symptom Diagnosis & Testing - Loose Steering

Courtesy of CHRYSLER CORP.

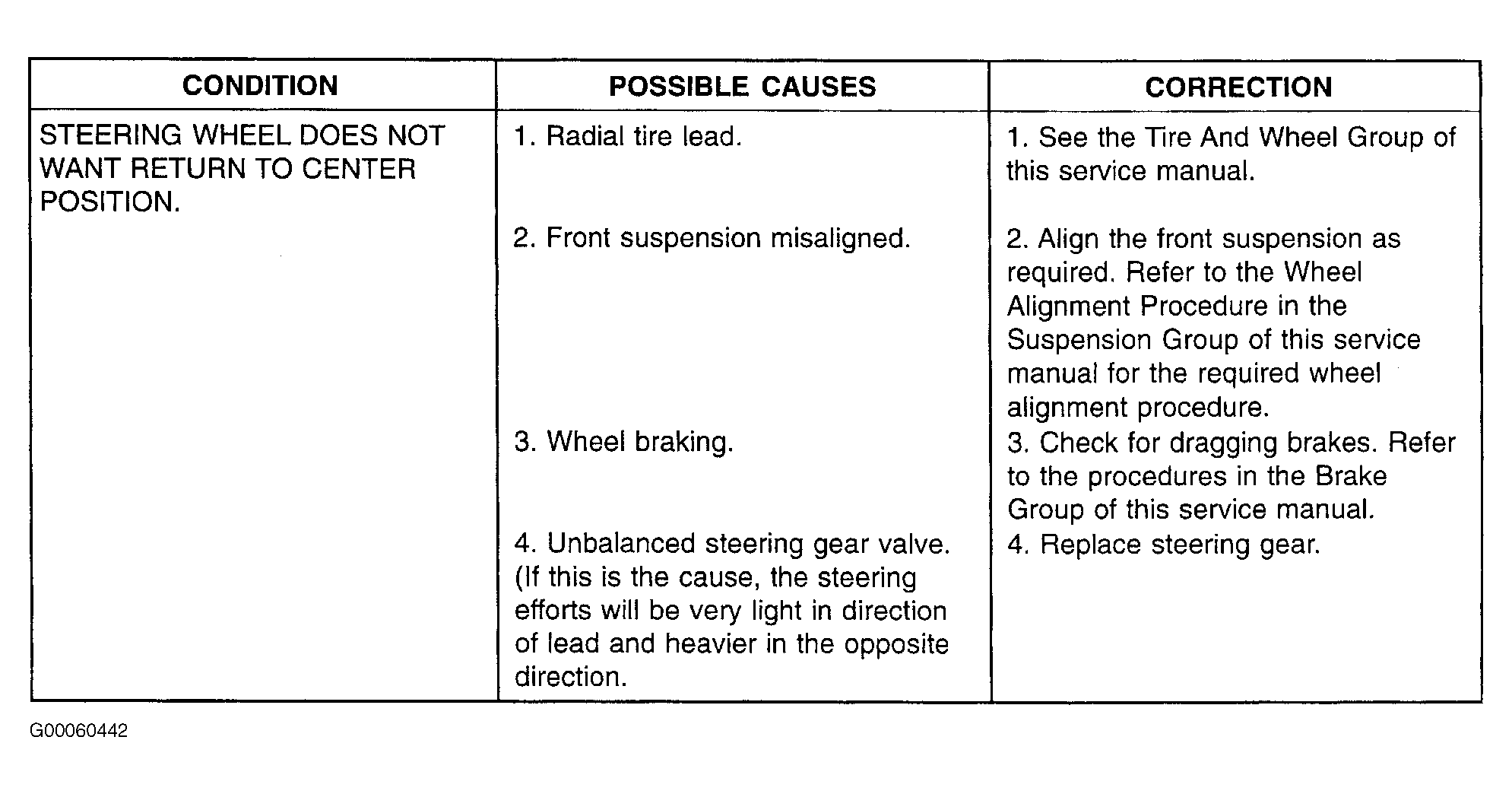

Fig 8: Symptom Diagnosis & Testing - Vehicle Leads To Side

Courtesy of CHRYSLER CORP.

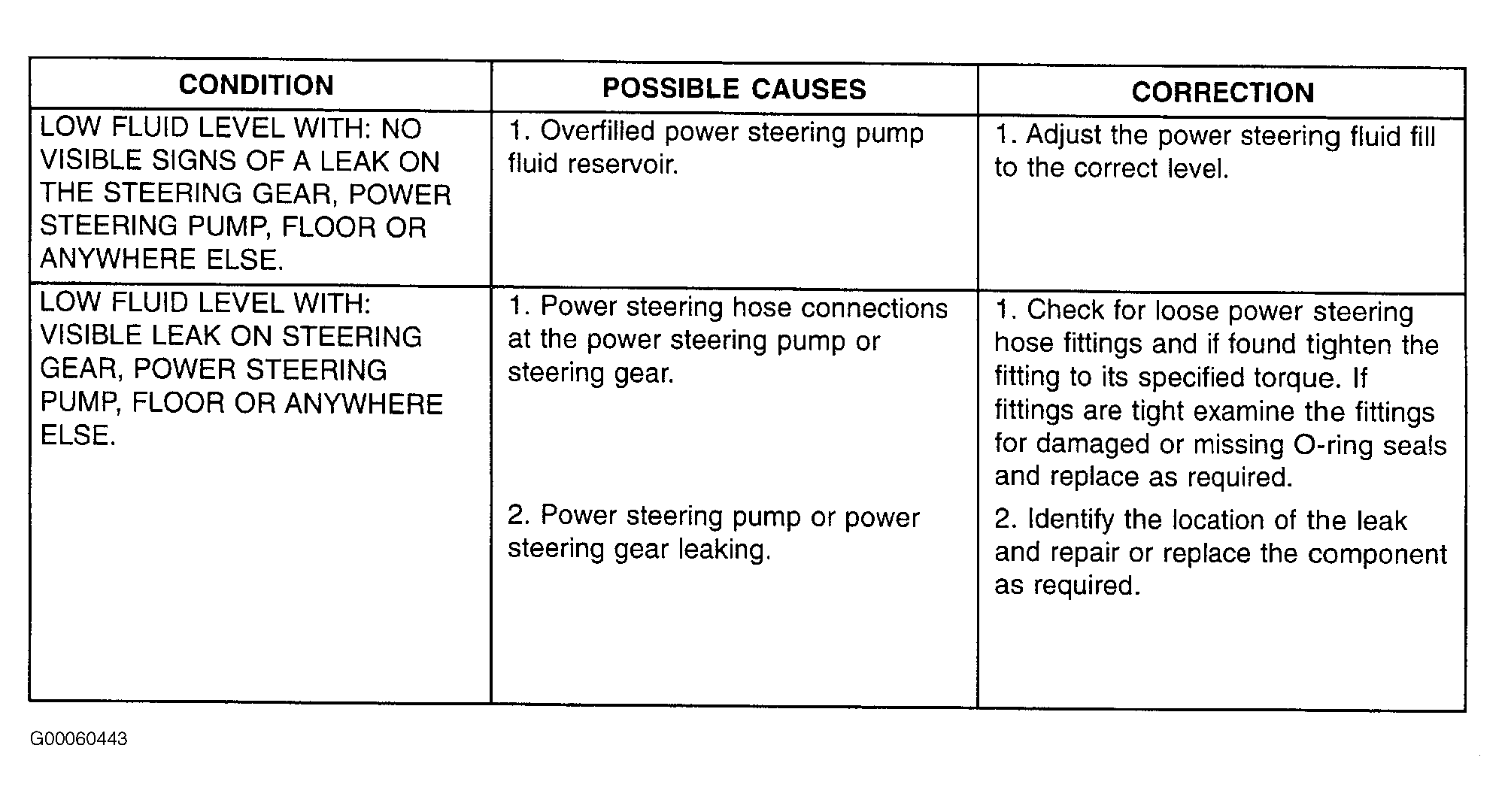

Fig 9: Symptom Diagnosis & Testing - Power Steering Fluid Leak

Courtesy of CHRYSLER CORP.

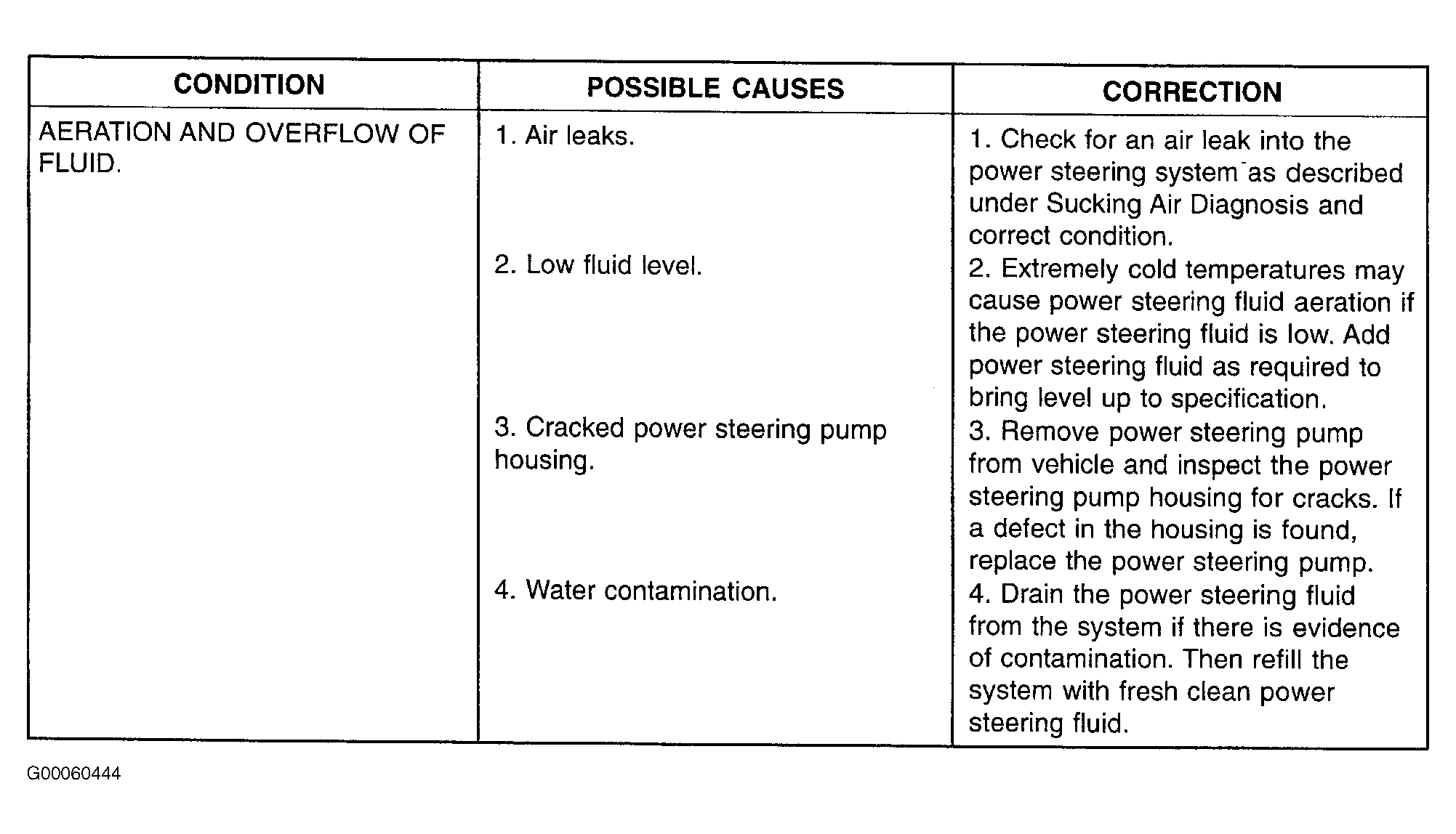

Fig 10: Symptom Diagnosis & Testing - Foamy Or Milky Power Steering Fluid

Courtesy of CHRYSLER CORP.
