Air Bag Connector Pin-Outs

Fig 1: Air Bag Control Module Connector C1 Pin-Out 1997 & 1999
G00061511Courtesy of CHRYSLER CORP.
Fig 2: Air Bag Control Module Connector C2 Pin-Out 1997 & 1999
G00061512Courtesy of CHRYSLER CORP.
Fig 3: Clockspring Connector Pin-Out Connector Pin-Out 1997 & 1999
G00061533Courtesy of CHRYSLER CORP.
Fig 4: Driver Air Bag Connector Pin-Out 1997 & 1999
G00061541Courtesy of CHRYSLER CORP.
Fig 5: Driver Air Bag Connector Pin-Out 2000-01
G00141402Courtesy of CHRYSLER CORP.
Fig 6: Left Front Impact Sensor Connector Pin-Out 1997 & 1999
G00061416Courtesy of CHRYSLER CORP.
Fig 7: Right Front Impact Sensor Connector Pin-Out 1997 & 1999
G00061459Courtesy of CHRYSLER CORP.
Fig 8: Passenger Air Bag Connector Pin-Out 1997 & 1999
G00061436Courtesy of CHRYSLER CORP.
Fig 9: Passenger Air Bag Disarm Switch Connector C1 Pin-Out 1997 & 1999
G00061437Courtesy of CHRYSLER CORP.
Fig 10: Passenger Air Bag Disarm Switch C1 Connector Pin-Out 2000-01
G00141403Courtesy of CHRYSLER CORP.

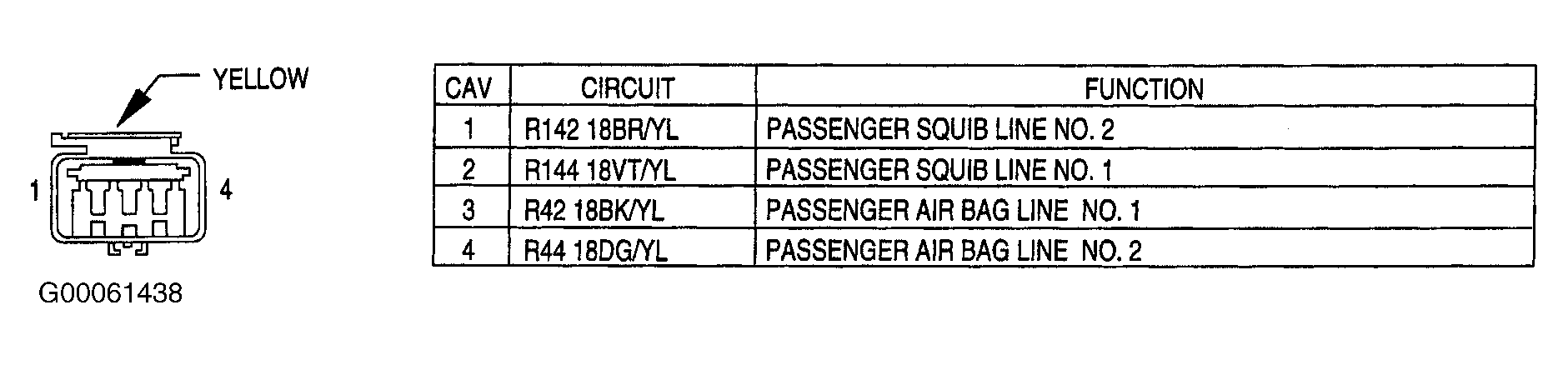

Fig 11: Passenger Air Bag Disarm Switch Connector C2 Pin-Out 1997 & 1999
G00061438Courtesy of CHRYSLER CORP.
