Removal & Installation

  1. Disconnect the negative battery cable. Remove air inlet hose and resonator box and air cleaner top. Remove the 3 fasteners from vacuum reservoir. See Fig 1. Remove electrical connector. Remove vacuum hoses. Remove vacuum reservoir.
  2. Install vacuum hoses to reservoir. Install electrical connector. Install 3 fasteners and tighten. Install air inlet hose and resonator box and air cleaner top. Connect the negative battery cable.

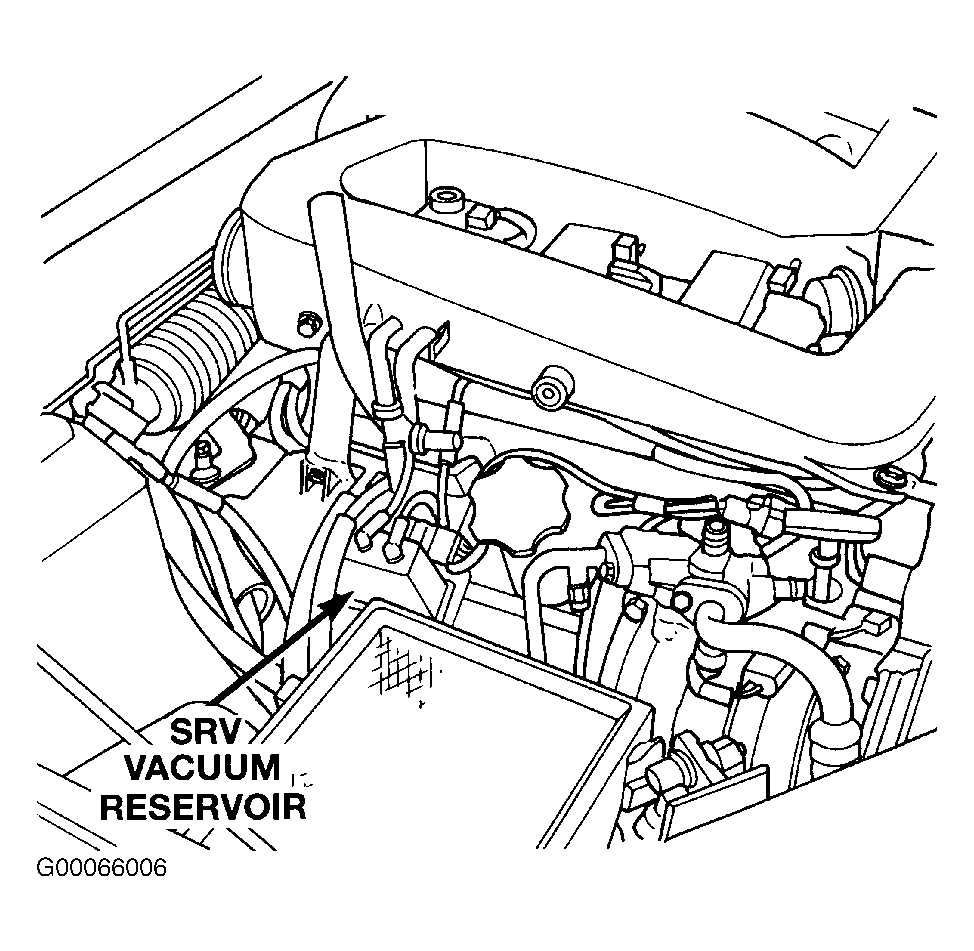

Fig 1: Vacuum Reservoir Location
G00066006Courtesy of CHRYSLER CORP.
