Right Engine Mount - Removal

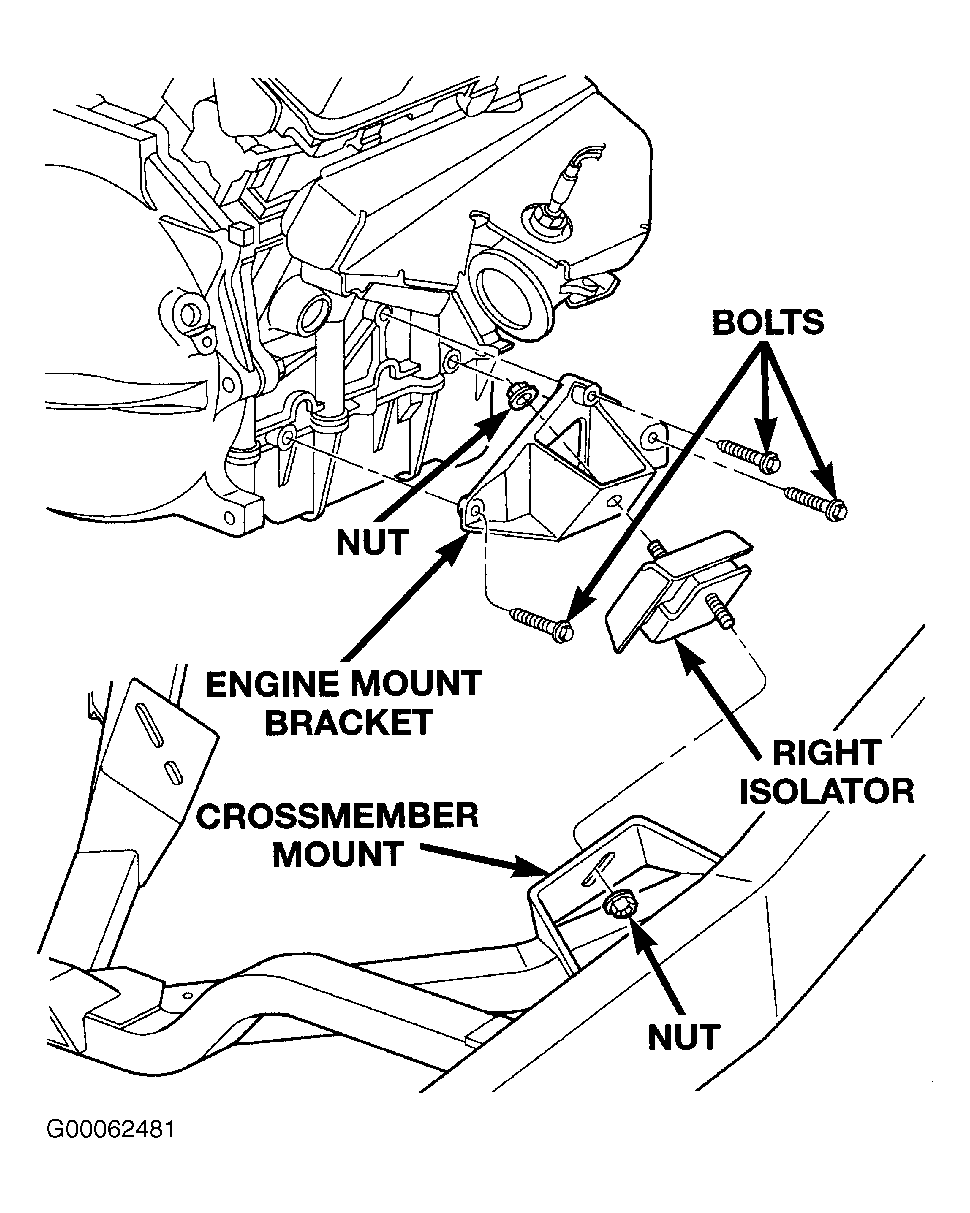

  1. Disconnect negative cable from battery. Raise vehicle on hoist. Remove right and left engine mount isolator attaching nuts from isolator to crossmember mount. See Figure. Support engine with a jack and a block of wood across full width of oil pan. Remove bolts holding engine mount bracket to engine.
    CAUTION: To prevent damage to propeller shaft bushings, raise engine only enough for mount removal and installation.
  2. Raise engine only enough to clear isolator stud. Remove engine mount isolator with engine mount bracket. Remove isolator from engine mount bracket.
