Removal & Installation

With camshaft sprockets removed. Refer to procedure outlined in this section. Use Special Tool C-3981B to remove camshaft oil seal. See Fig 1.
To install, apply light coat of engine oil to camshaft oil seal lip. Install oil seal using Special Tool 6788 Seal Protector Sleeve, see Fig 2, and Seal Installer 6052. See Fig 3.

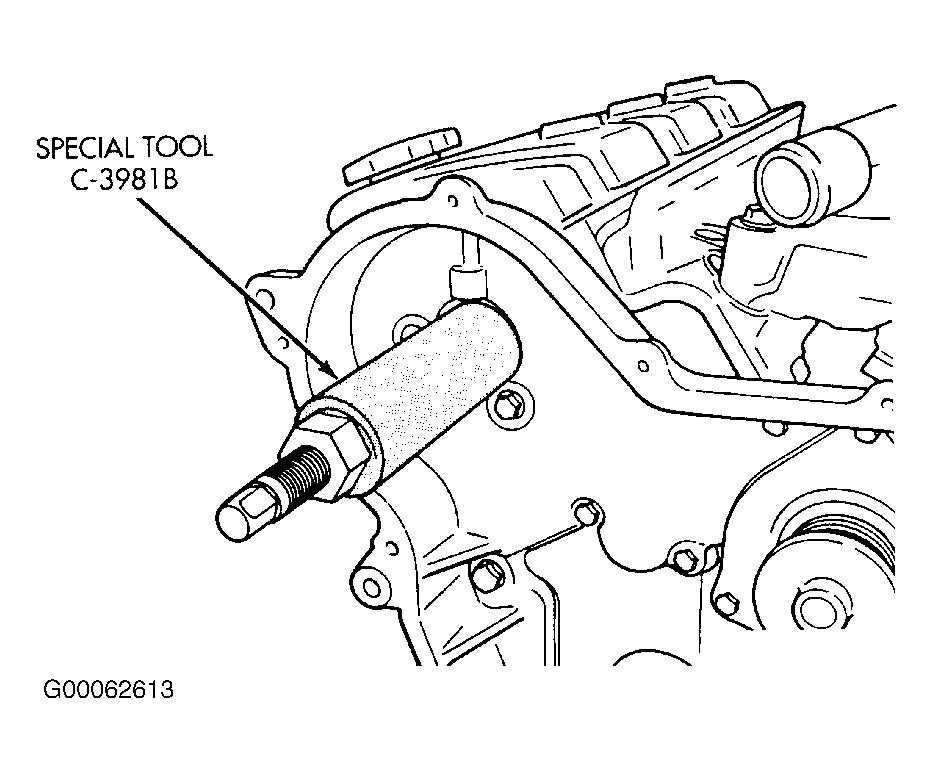

Fig 1: Camshaft Oil Seal - Removal

G00062613

Courtesy of CHRYSLER CORP.

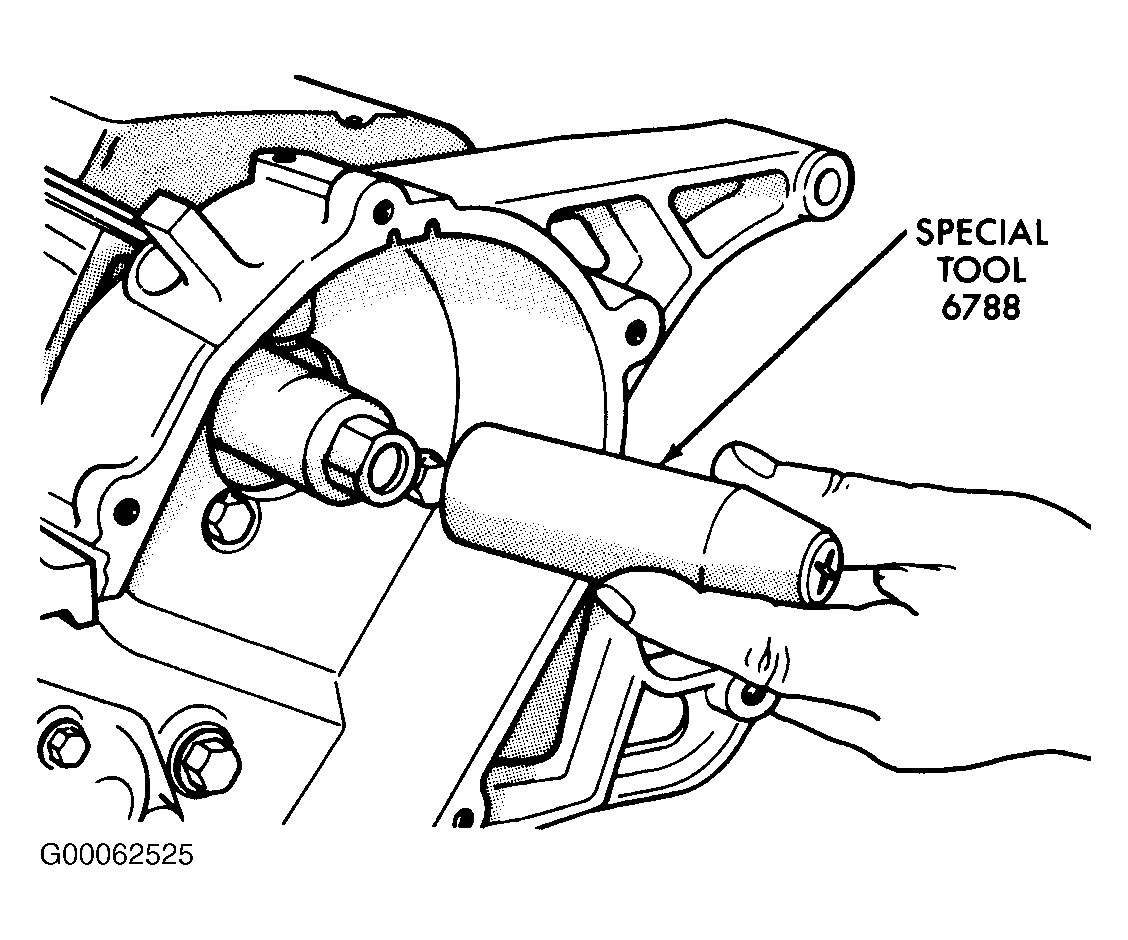

Fig 2: Camshaft Oil Seal Protector Sleeve

G00062525

Courtesy of DAIMLERCHRYSLER CORP.

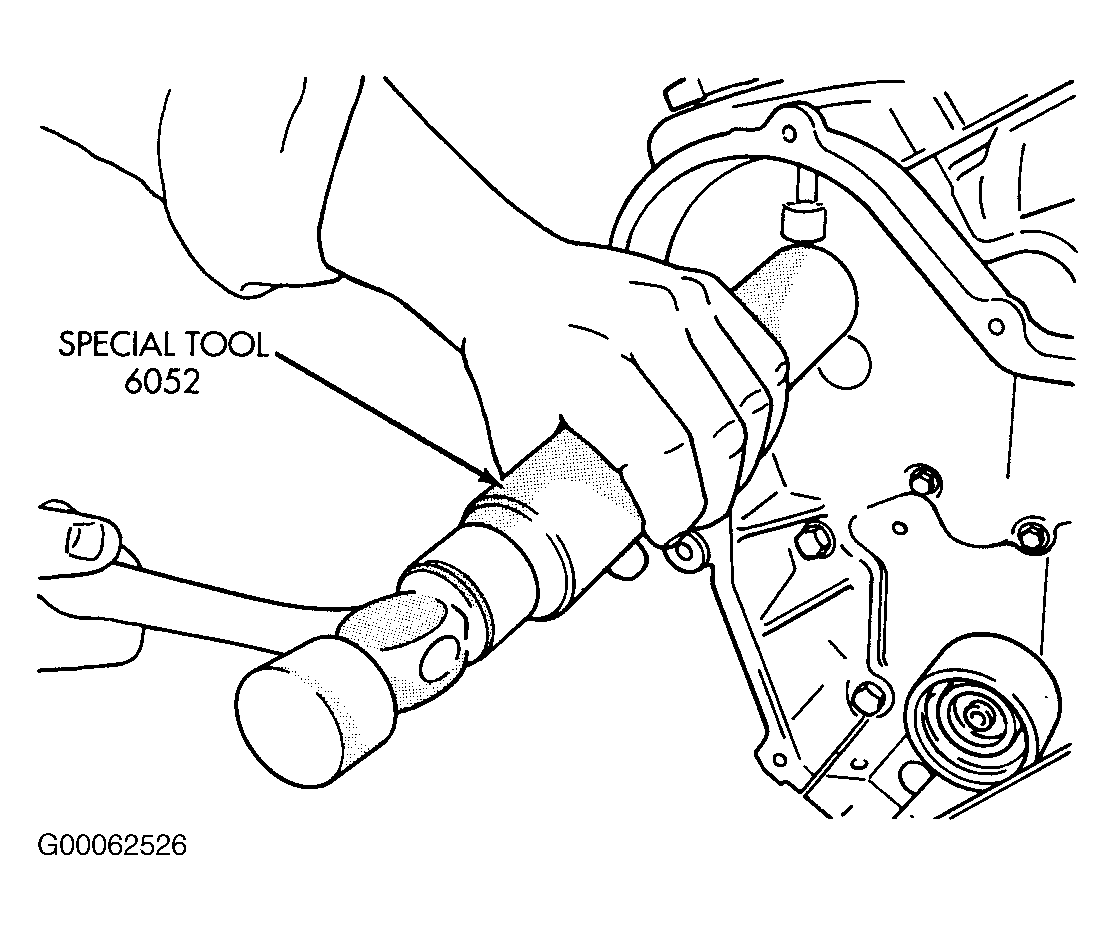

Fig 3: Camshaft Oil Seal - Installation

G00062526

Courtesy of DAIMLERCHRYSLER CORP.

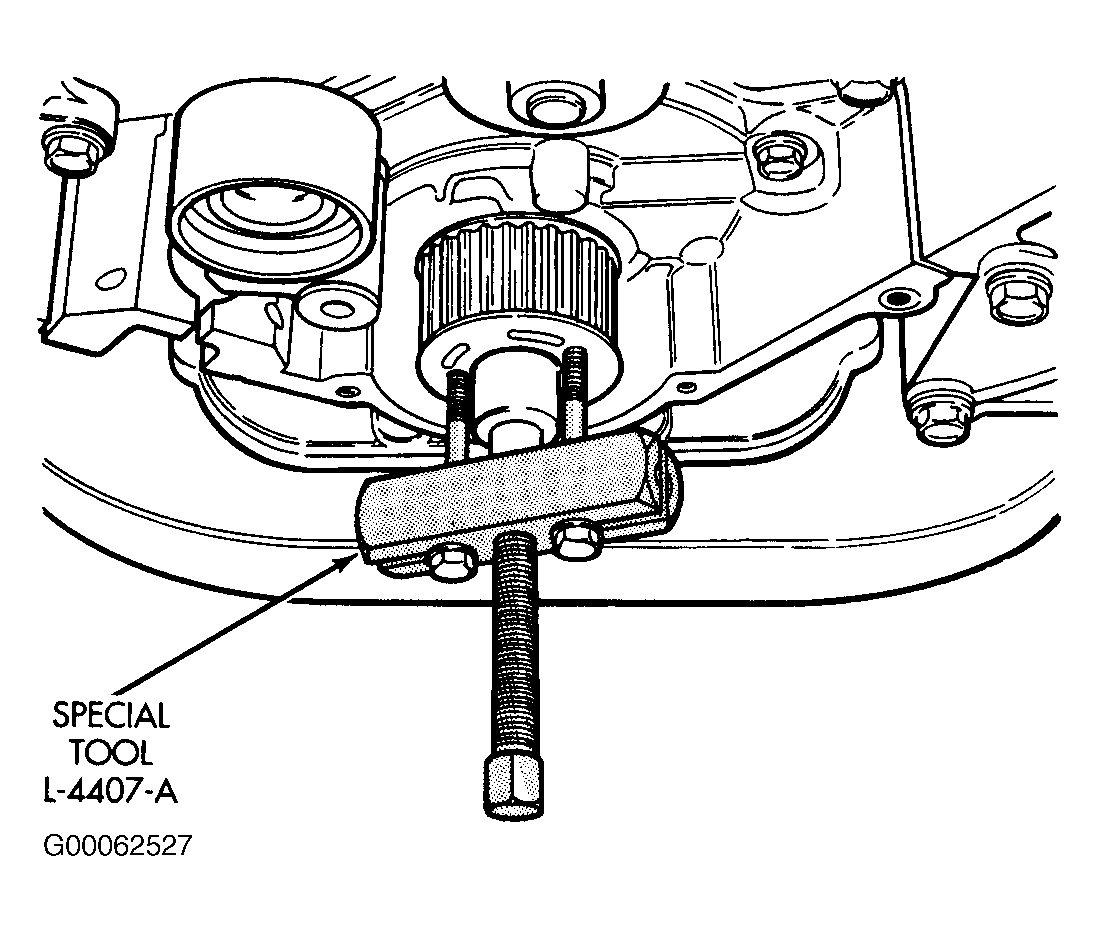

Fig 4: Crankshaft Sprocket - Removal

G00062527

Courtesy of DAIMLERCHRYSLER CORP.

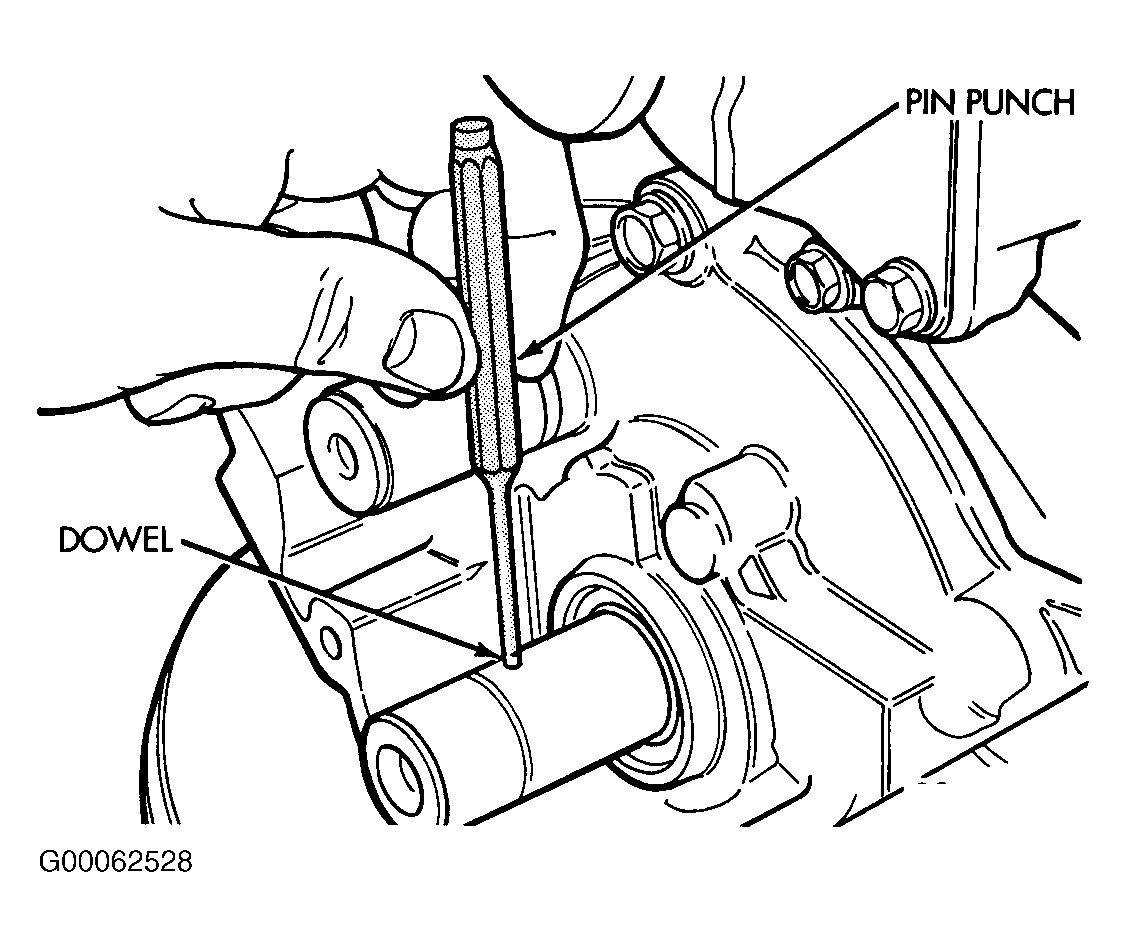

Fig 5: Crankshaft Sprocket Dowel Pin - Removal & Installation

G00062528

Courtesy of DAIMLERCHRYSLER CORP.

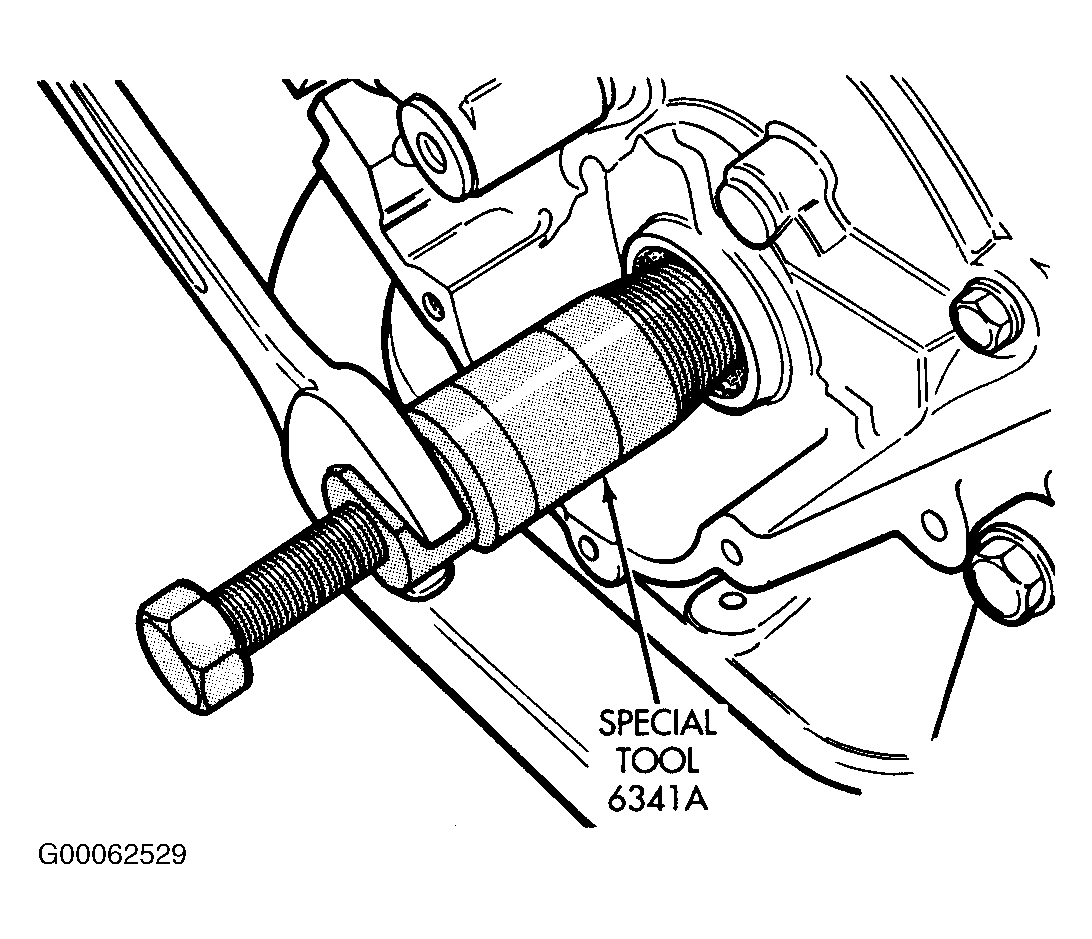

Fig 6: Removing Crankshaft Oil Seal With Special Tool 6341A

G00062529

Courtesy of DAIMLERCHRYSLER CORP.

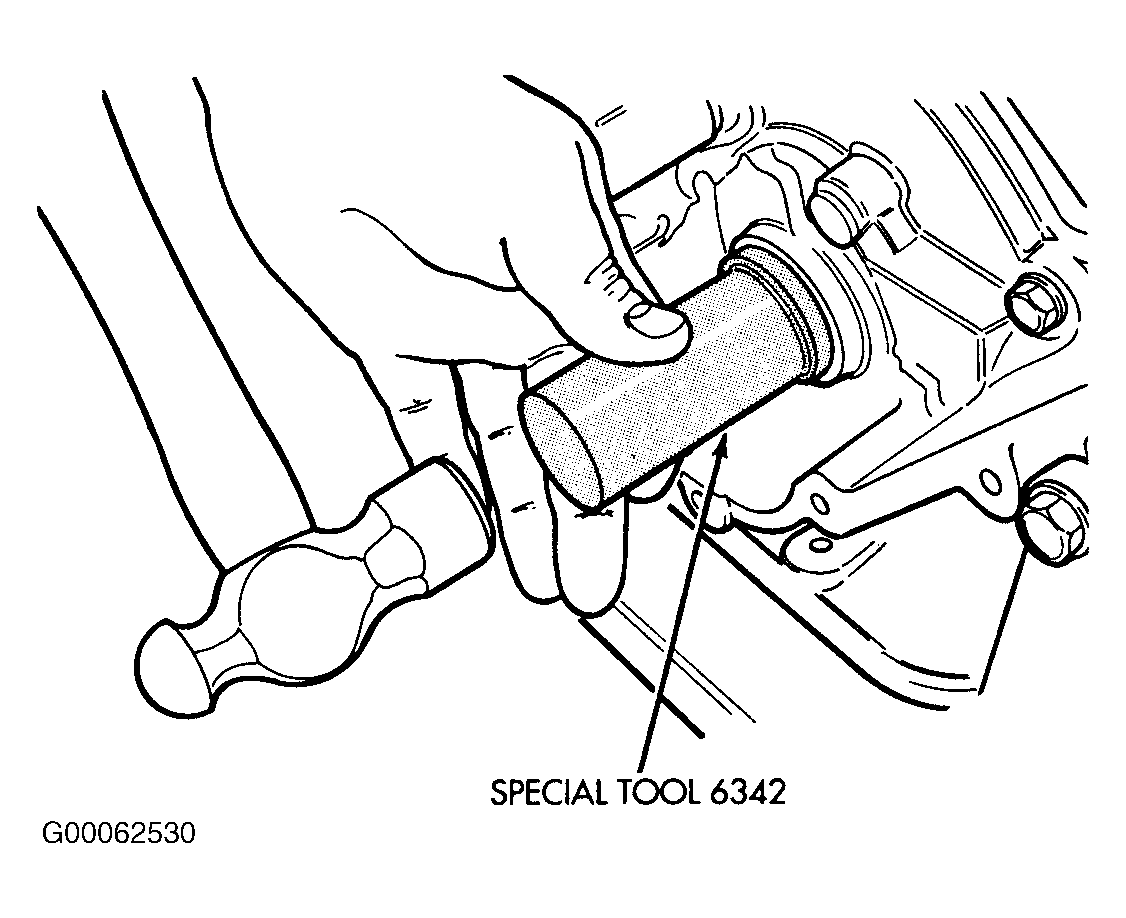

Fig 7: Installing Crankshaft Oil Seal With Special Tool 6342

G00062530

Courtesy of DAIMLERCHRYSLER CORP.
