Water Pump

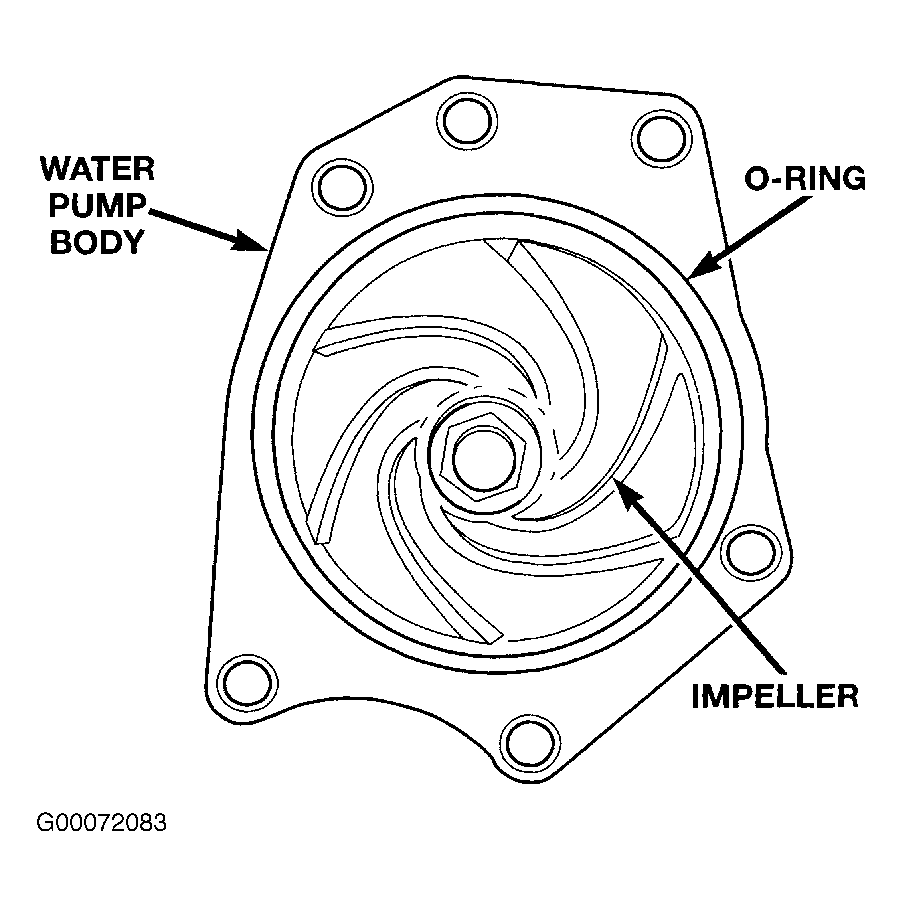

The water pump body is made of aluminum with a plastic impeller. The water pump body bolts directly to right rear timing belt cover, using an O-ring gasket for pump to cover sealing. See Fig 1 . The pump is driven by engine timing belt. The water pump is heart of cooling system, pumping coolant through engine block, cylinder head, heater core, and radiator.
