Engine Thermostat - 1999-2002 Prowler

The engine thermostat is located on lower left side of engine, near front. See Fig 1 . The thermostat is on inlet side of water pump. The thermostat has an air bleed located in thermostat flange.

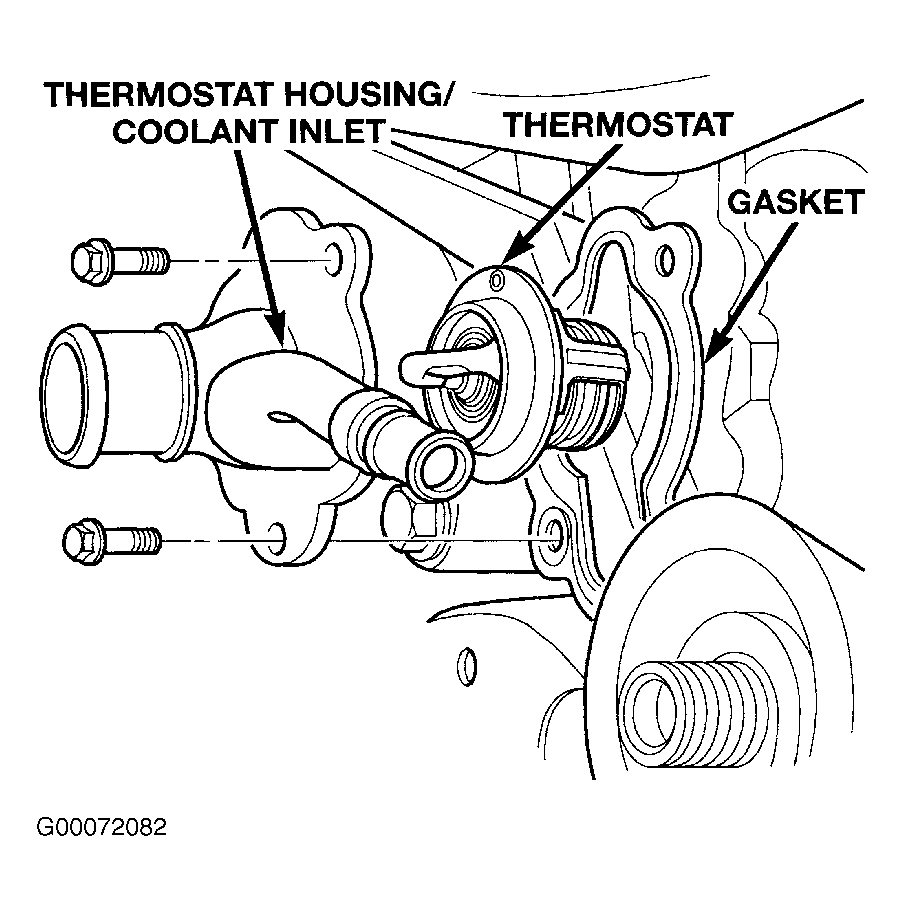

Fig 1: Thermostat & Housing (1999-2002 Prowler)
G00072082Courtesy of DAIMLERCHRYSLER CORPORATION
