Fuel & Temperature Gauge PC Board - Removal & Installation
- Disconnect and isolate negative battery cable. Remove cluster. Remove four cluster back cover retaining screws and remove cover.

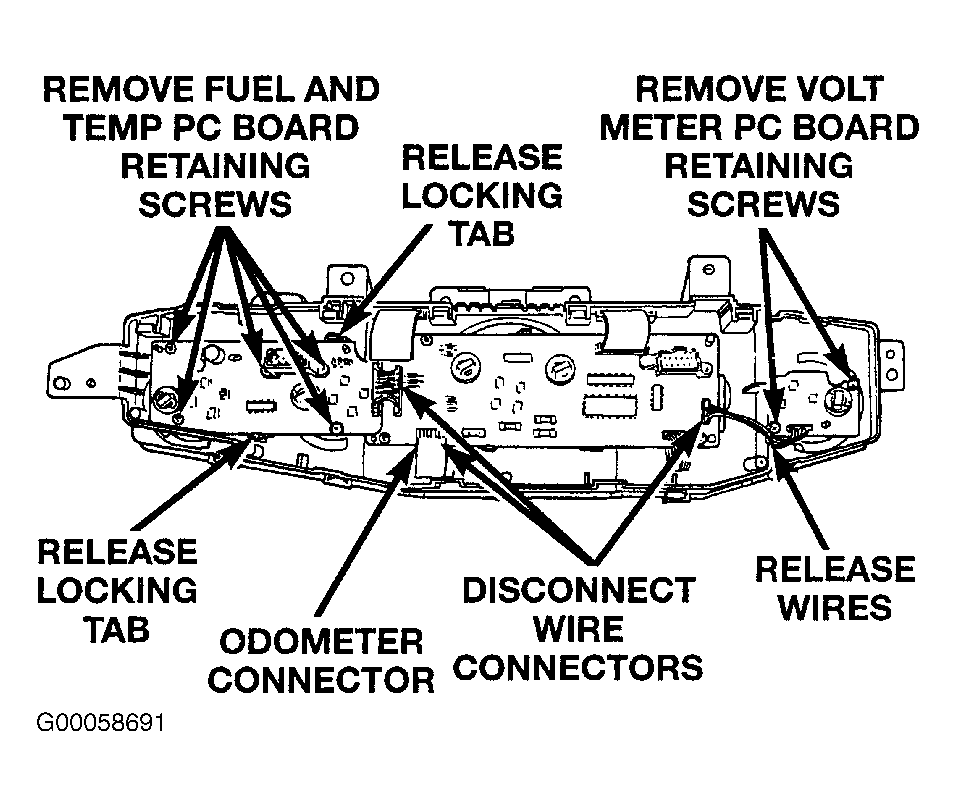

- Disconnect wire connector from fuel and temp printed circuit board to speedometer printed circuit board. Remove two printed circuit board attaching screws and remove two screws located at base of connector. See Fig 1. Remove PC board. To install, reverse removal procedures.
