Cluster Lamp (1999)
- Disconnect and isolate negative battery cable. Remove instrument panel top cover. To service lamps, remove lamp boxes. See Figure.

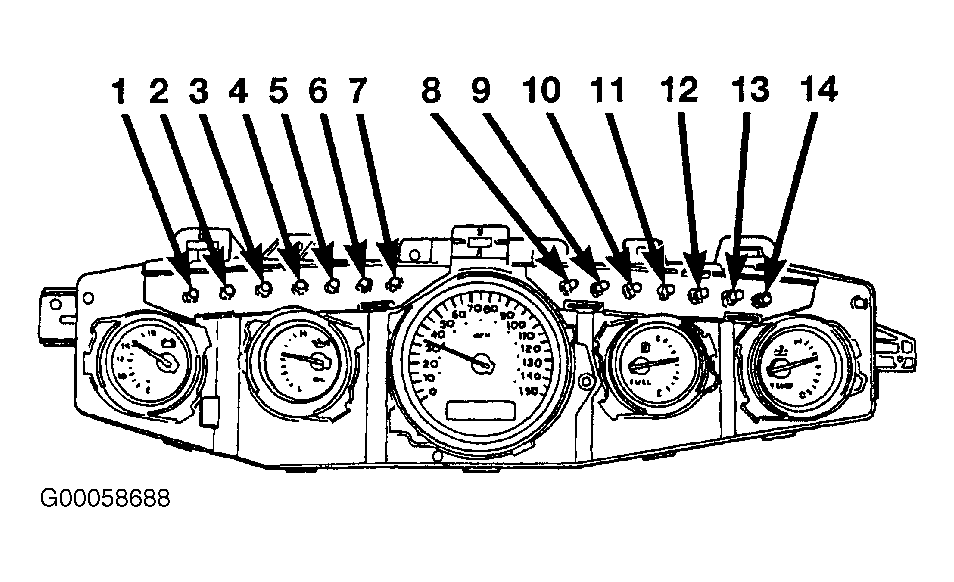

- For cluster lamp locations and bulb identification, see Fig 1 and BULB IDENTIFICATION (1999) . The indicator lamps use a 103 lamp, and illumination lamps use a 194 lamp. To service vehicle theft LED, mask/lens needs to be removed. The vehicle theft LED is a socket/lamps unit.

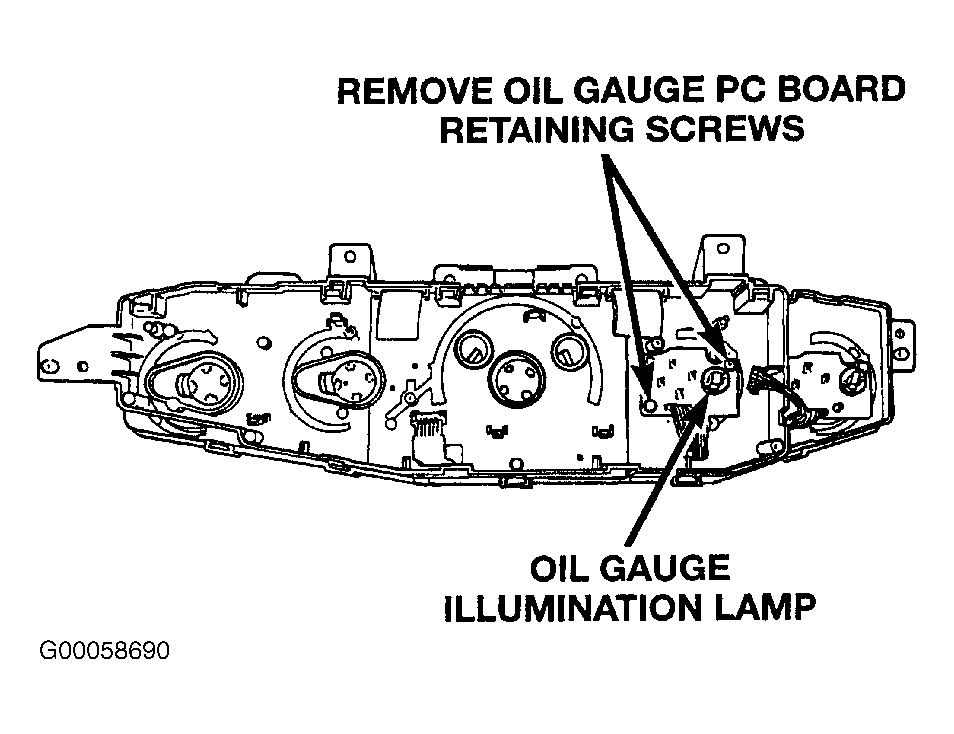

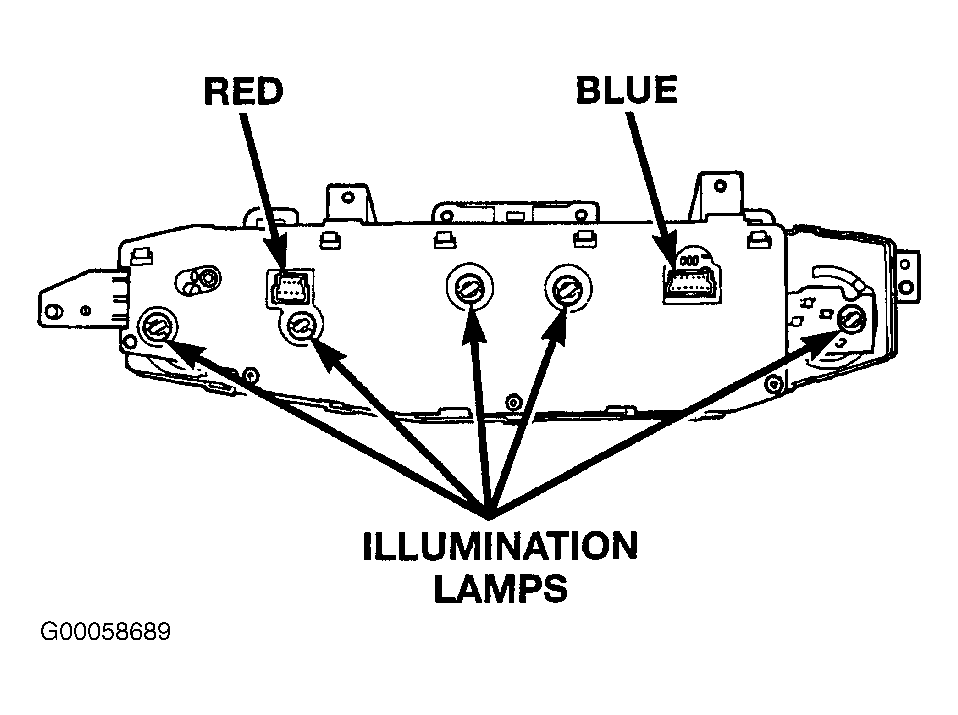

- Remove cluster to service illumination lamps. The lamps can be remove from rear of cluster. See Fig 2. To remove oil gauge illumination lamp, speedometer PC board will have to be removed. See Fig 3.
NOTE: See BULB IDENTIFICATION (1997) or BULB IDENTIFICATION (1999) table to identify bulb applications for cluster lamps shown in illustration. See Fig 1.
BULB IDENTIFICATION (1999)
| Bulb No. | Application |
|---|---|
| 1 | Low Washer Fluid |
| 2 | Check Gauge |
| 3 | Brake/Park Brake |
| 4 | High Beam Indicator |
| 5 | Seat Belt |
| 6 | Airbag |
| 7 | Left Turn Signal |
| 8 | Right Turn Signal |
| 9 | Service Engine Soon |
| 10 | Low Tire |
| 11 | Low Fuel |
| 12 | Cruise Active |
| 13 | Pass Airbag Off LED |
| 14 | Vehicle Theft LED |
