Center Bezel: Removal

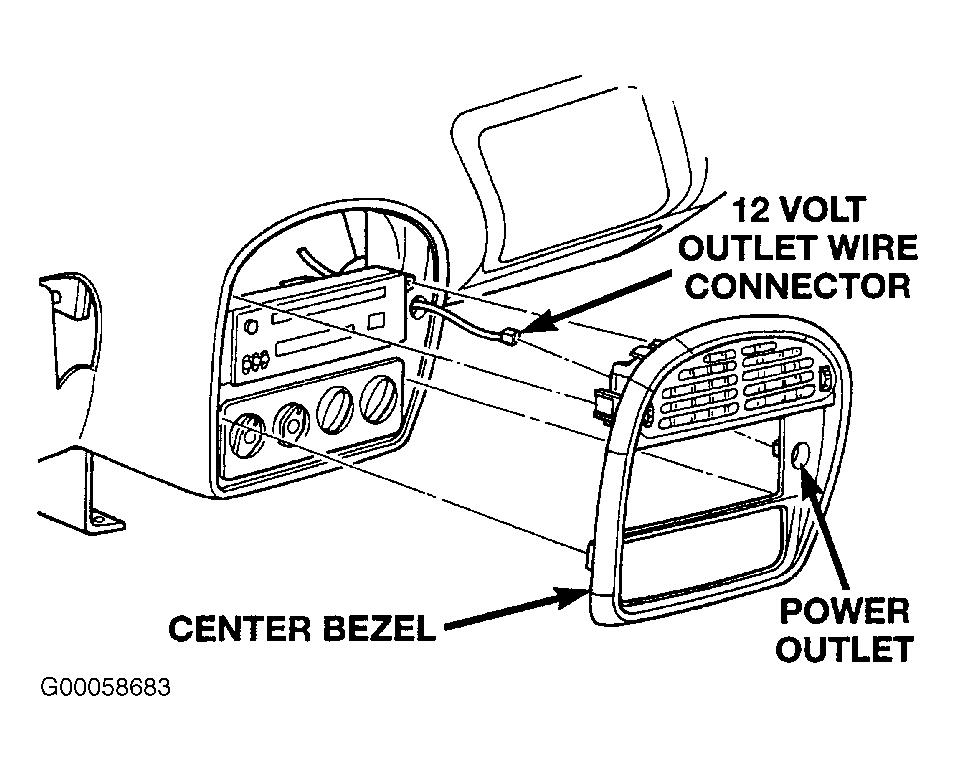

Pull center bezel straight rearward along sides of radio and A/C control openings to disengage four clips. See Figure. Disconnect power outlet wire connector.
