Releasing Park Brake Auto Adjuster

NOTE: The park brake lever can be in any position when releasing auto adjuster. To ease installation of center console, it is advisable to pull park brake lever handle all way up before removing lockout pin.
  1. Be sure rear park brake cables are properly installed in equalizer. Pull park brake lever handle all way up. Using pliers, firmly grasp park brake lever locking pin. Quickly remove locking pin from park brake lever mechanism. This will allow park brake lever mechanism to correctly adjust park brake cables.

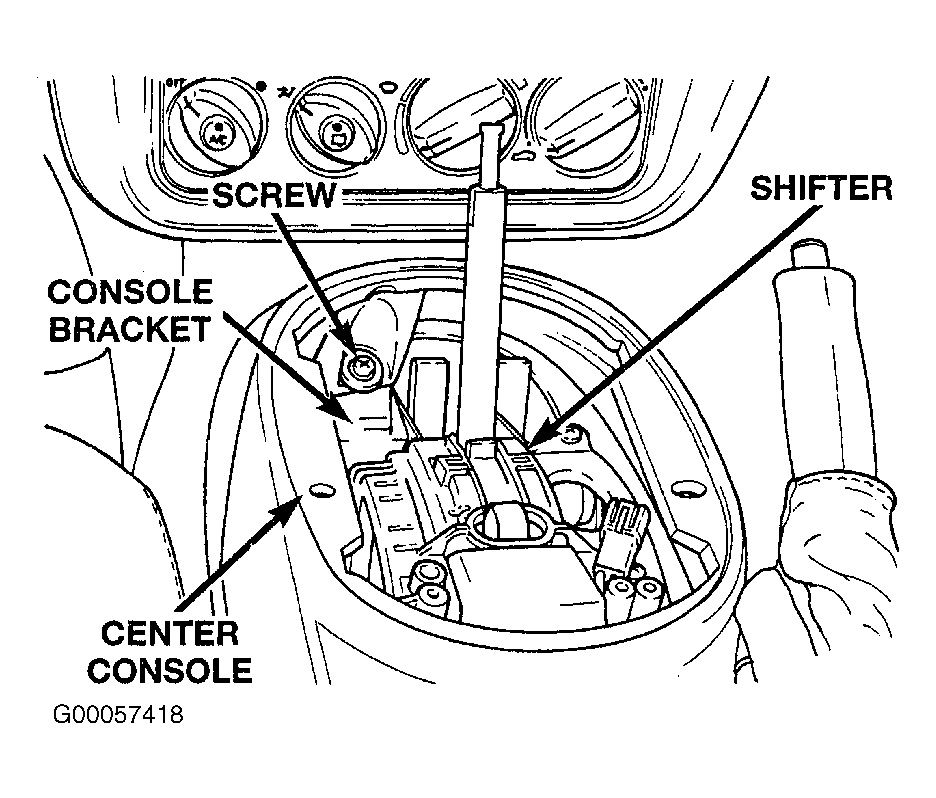

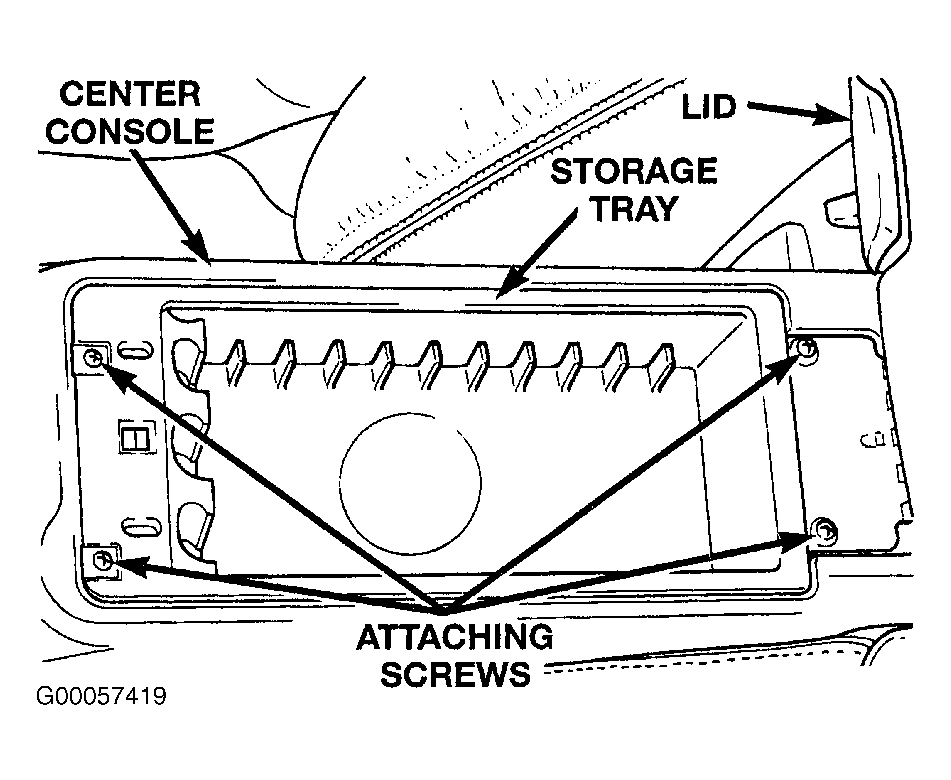

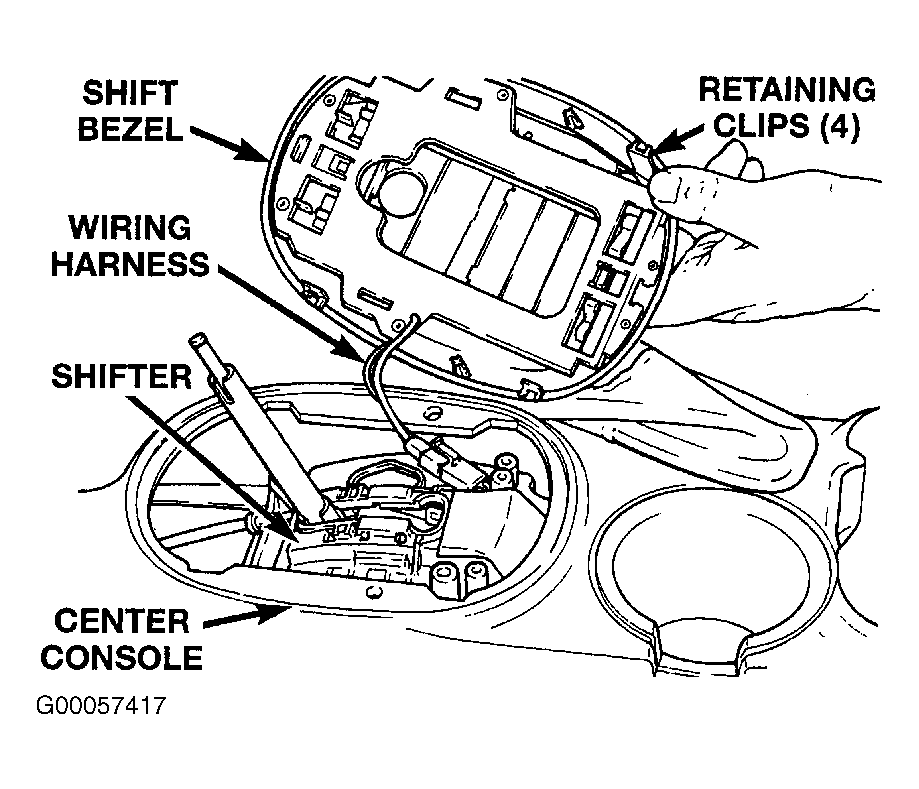

  2. Install center console. Install 4 screws, mounting console, storage tray and lid. See Figure . Install screw mounting front of center console to console bracket. See Figure . Connect shift bezel wiring harness to vehicle wiring harness. See Figure .
  3. Install shift bezel on center console. Shift bezel is installed by firmly pressing it down on center console until 4 retaining clips are holding it to center console. Install shift knob on shifter. Install and securely tighten set screw holding shift knob to shifter. Access to set screw is from front side of shift knob. See Figure .
  4. Cycle park brake lever once to position park brake cables. Then return park brake lever its released position. Check rear wheels of vehicle, they should rotate freely without dragging.
