Stop Lamp Switch: Removal

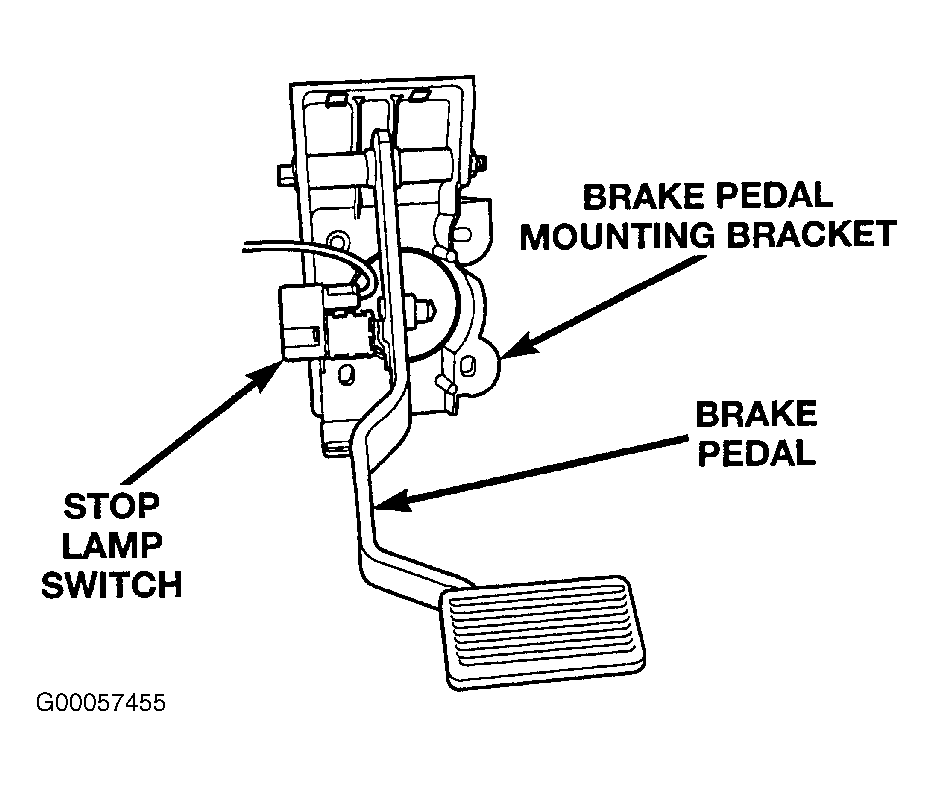

  1. Depress and hold brake pedal while rotating stop lamp switch in a counter-clockwise direction approximately 30 degrees. See Figure .
  2. Pull switch rearward and remove from its mounting bracket. Disconnect wiring harness connector from stop lamp switch.
