Master Cylinder Removal

NOTE: It is not necessary to bleed entire hydraulic system after replacing master cylinder fluid reservoir, providing that master cylinder has been filled and bled prior to installation.
  1. Attach Bleeding Tubes (Special Tool 8129) to master cylinder. See Fig 8 . Position bleeding tubes so outlets will be below surface of brake fluid when fluid reservoir is filled to proper level. Fill fluid reservoir to proper level with brake fluid conforming to DOT 3 specifications such as Mopar or Equivalent.
  2. Using a wooden dowel, slowly depress piston of master cylinder until it has bottomed in master cylinder then allow piston to return to released position. Repeat this step several times until no more air bubbles are expelled from bleeding tubes. Remove bleeding tubes from master cylinder. Plug output ports of master cylinder and install cap on fluid reservoir. Install master cylinder on vacuum booster.

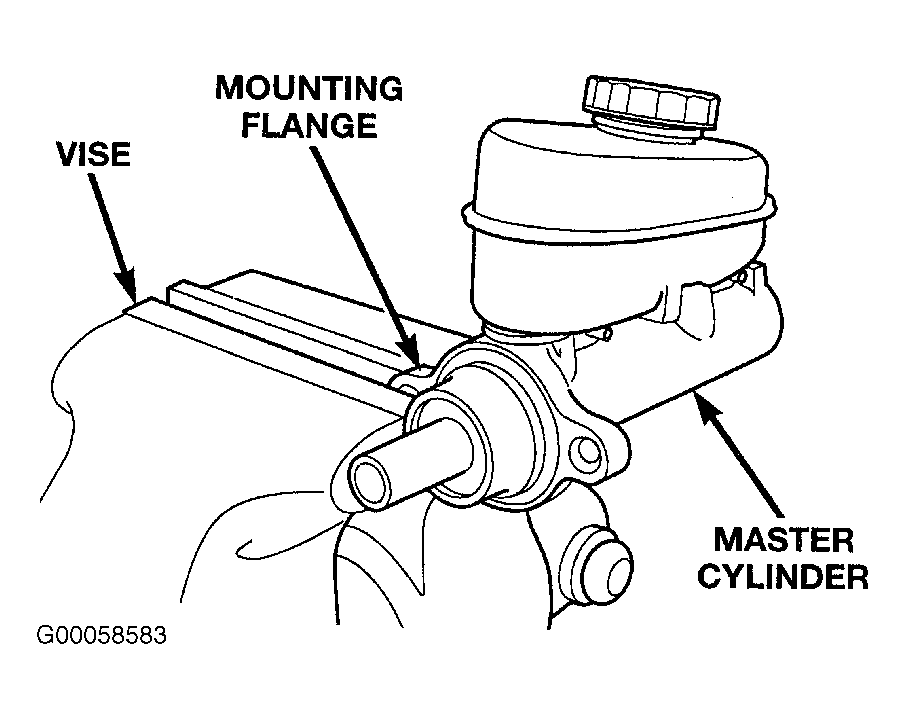

Fig 1: Mounting Master Cylinder In Vise
G00058583Courtesy of CHRYSLER CORP.
Fig 2: Removing Reservoir Retaining Pins
G00058584Courtesy of CHRYSLER CORP.

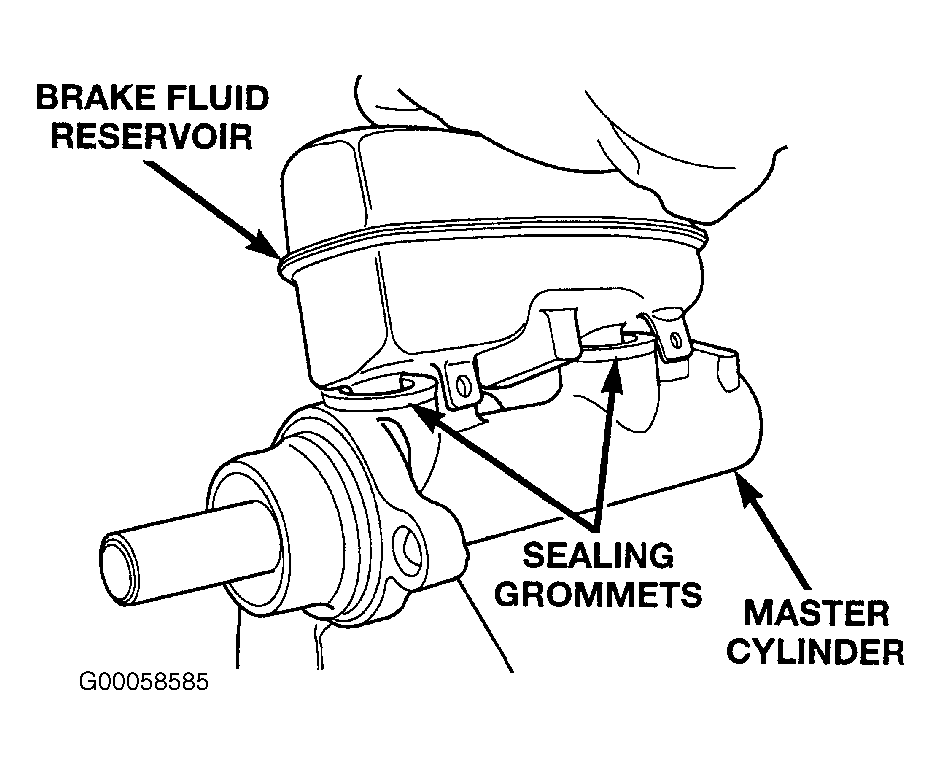

Fig 3: Removing Fluid Reservoir
G00058585Courtesy of CHRYSLER CORP.

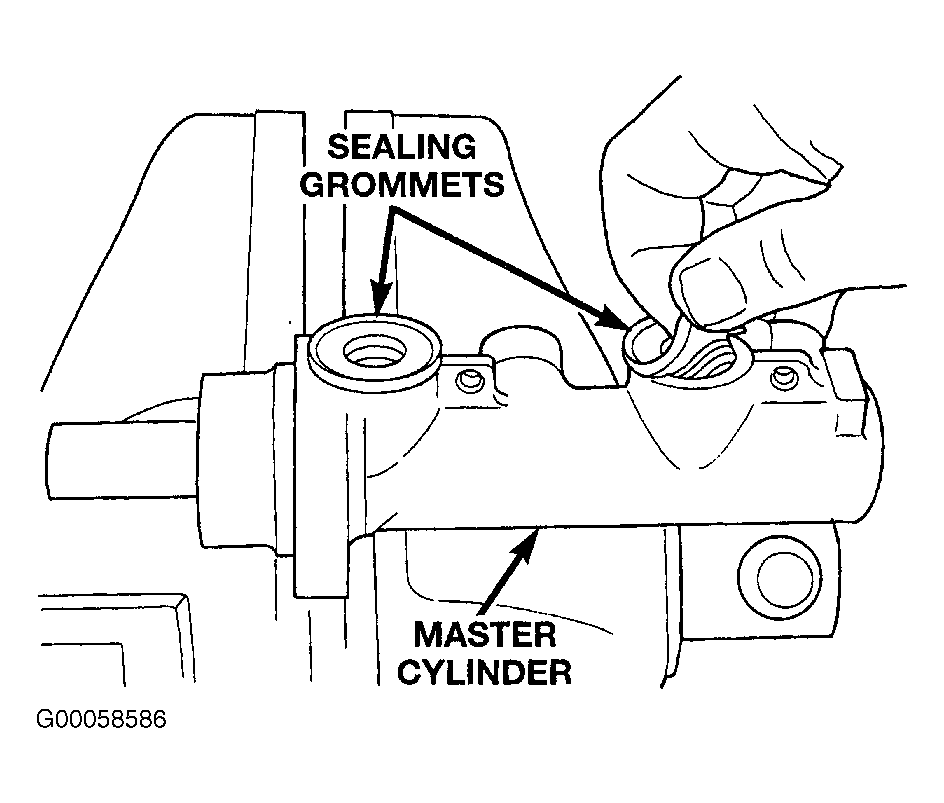

Fig 4: Remove Reservoir Seal Grommets
G00058586Courtesy of CHRYSLER CORP.
Fig 5: Installing Reservoir Seal Grommets
G00058587Courtesy of CHRYSLER CORP.
Fig 6: Installing Brake Fluid Reservoir
G00058588Courtesy of CHRYSLER CORP.
Fig 7: Reservoir Installed Position
G00058589Courtesy of CHRYSLER CORP.

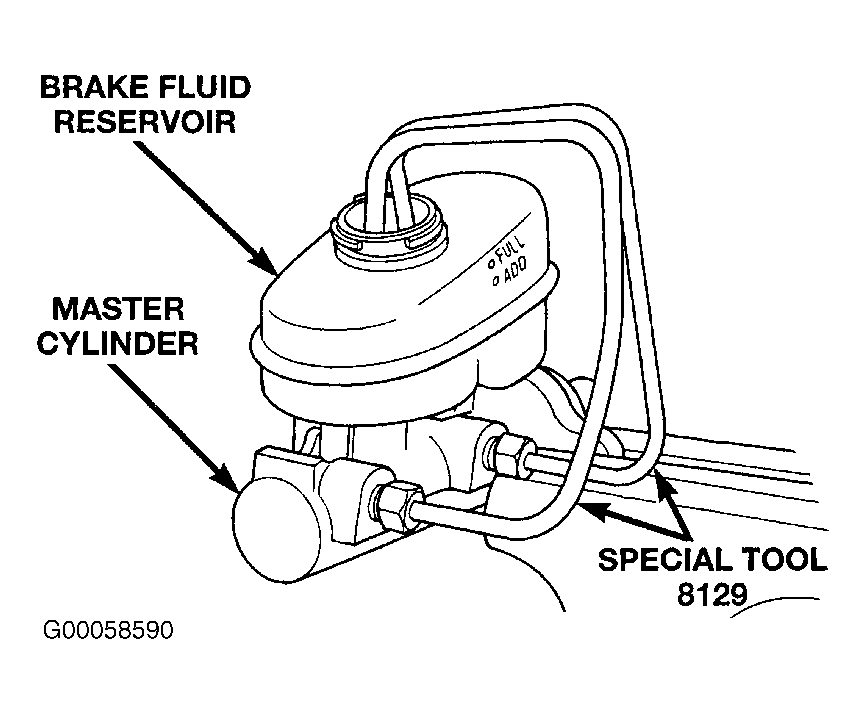

Fig 8: Bleeding Master Cylinder
G00058590Courtesy of CHRYSLER CORP.
