Brake Fluid Reservoir & Master Cylinder: Installation

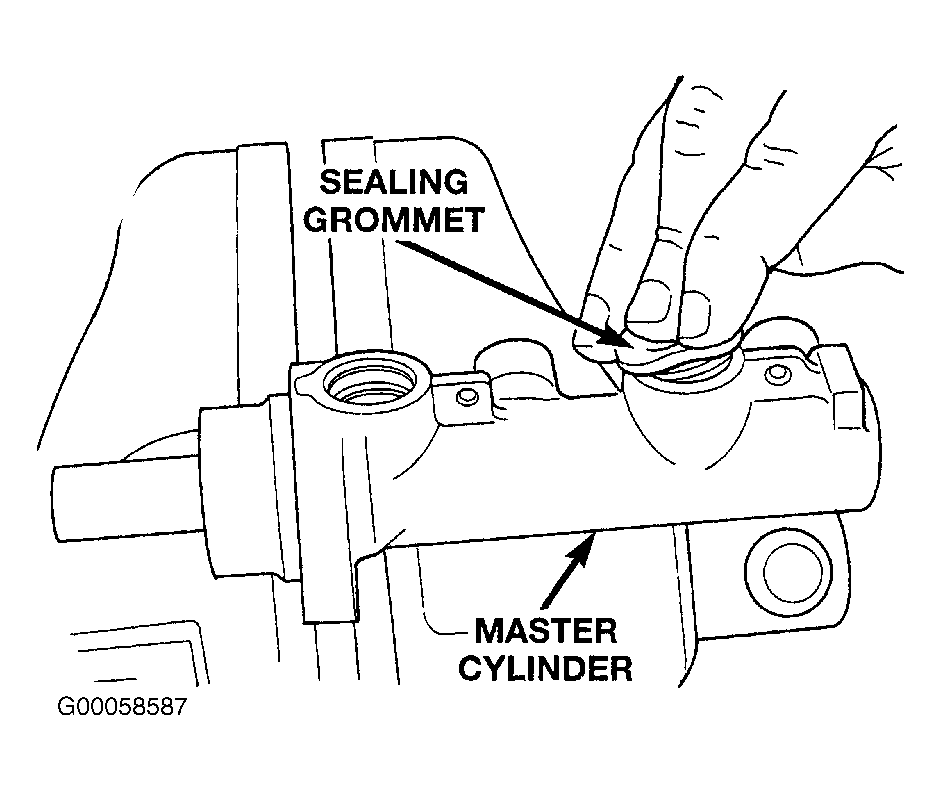

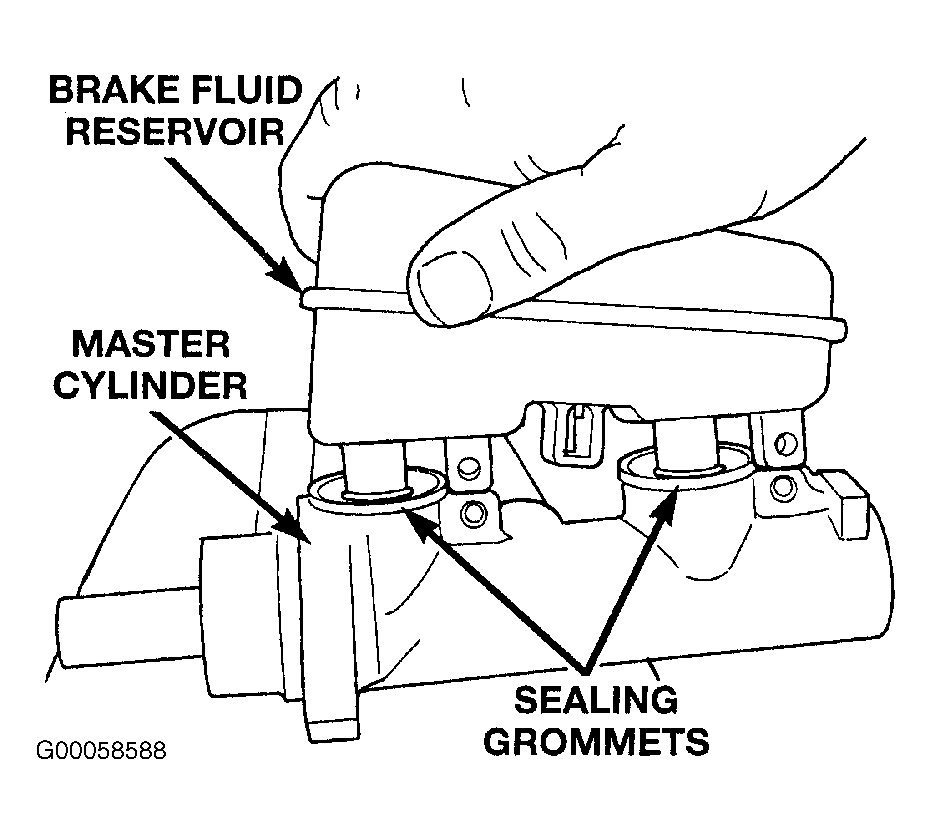

  1. Lubricate NEW brake fluid reservoir to master cylinder seal grommets with fresh clean brake fluid. Install new seal grommets in master cylinder. See Figure . Lubricate fluid ports on brake fluid reservoir with clean fresh brake fluid. Place fluid reservoir in correct position over seal grommets. See Figure .

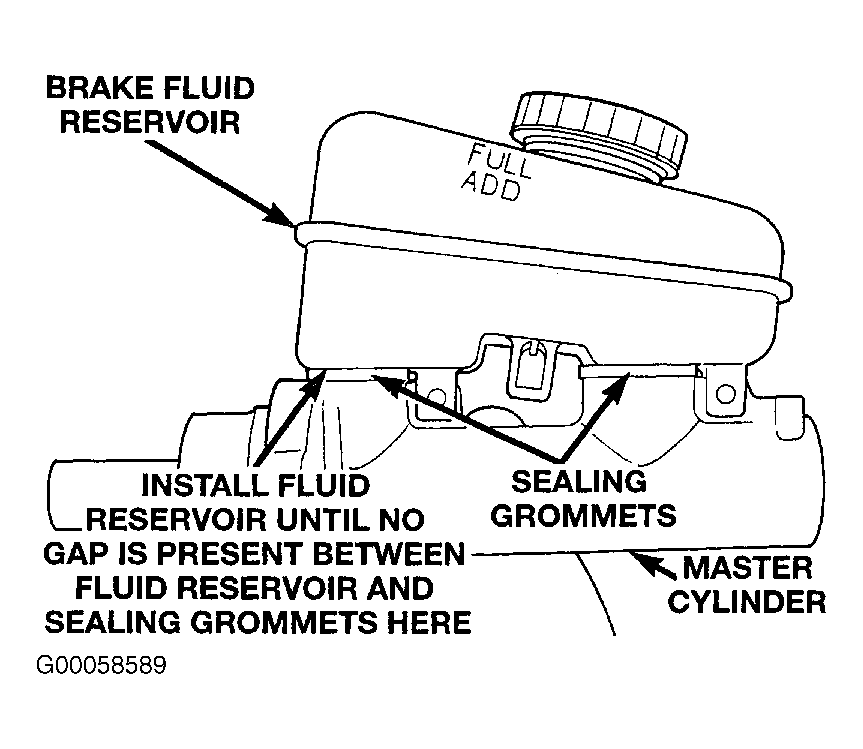

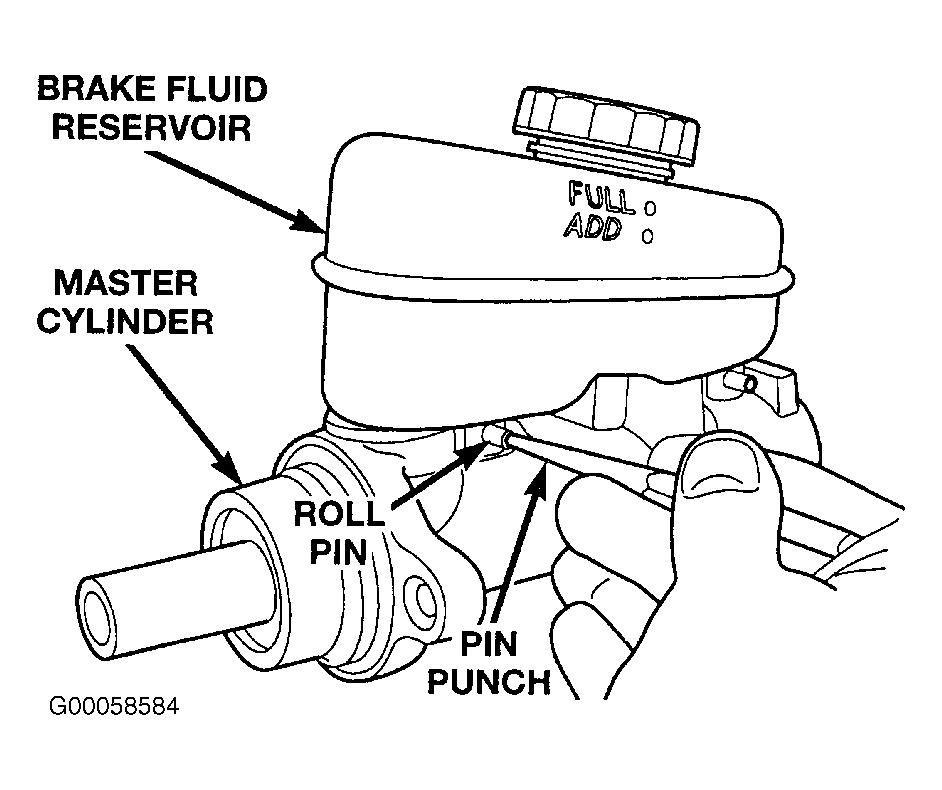

  2. Seat fluid reservoir into seal grommets/master cylinder using a rocking motion while firmly pushing down on fluid reservoir. Make sure brake fluid reservoir is installed on master cylinder until bottom of reservoir touches top of both seal grommets. See Figure . Using a pin punch install 2 roll pins retaining brake fluid reservoir to master cylinder. See Figure . Bleed master cylinder prior to mounting it on vacuum booster.
