Repair and Diagnosis (Single Page)
>>
Brakes
>>
Parking Brake System
>>
Disc Brakes
>>
Diagnosis & Testing
>>
Brake System Diagnosis
>>
Brake System Diagnostic Charts
Brake System Diagnostic Charts

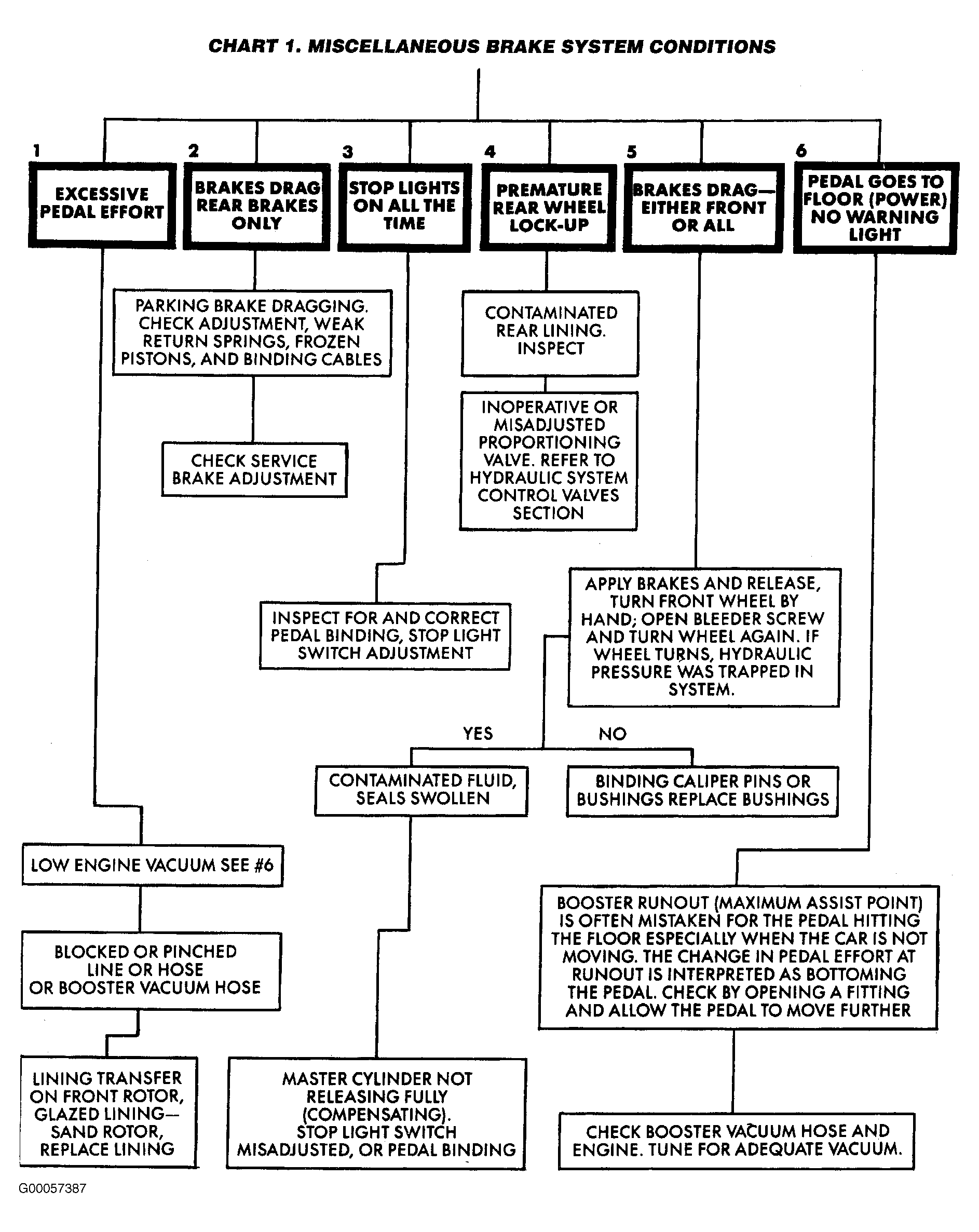

Fig 1: Chart 1: Miscellaneous Brake System Conditions (1 Of 4)
Courtesy of CHRYSLER CORP.

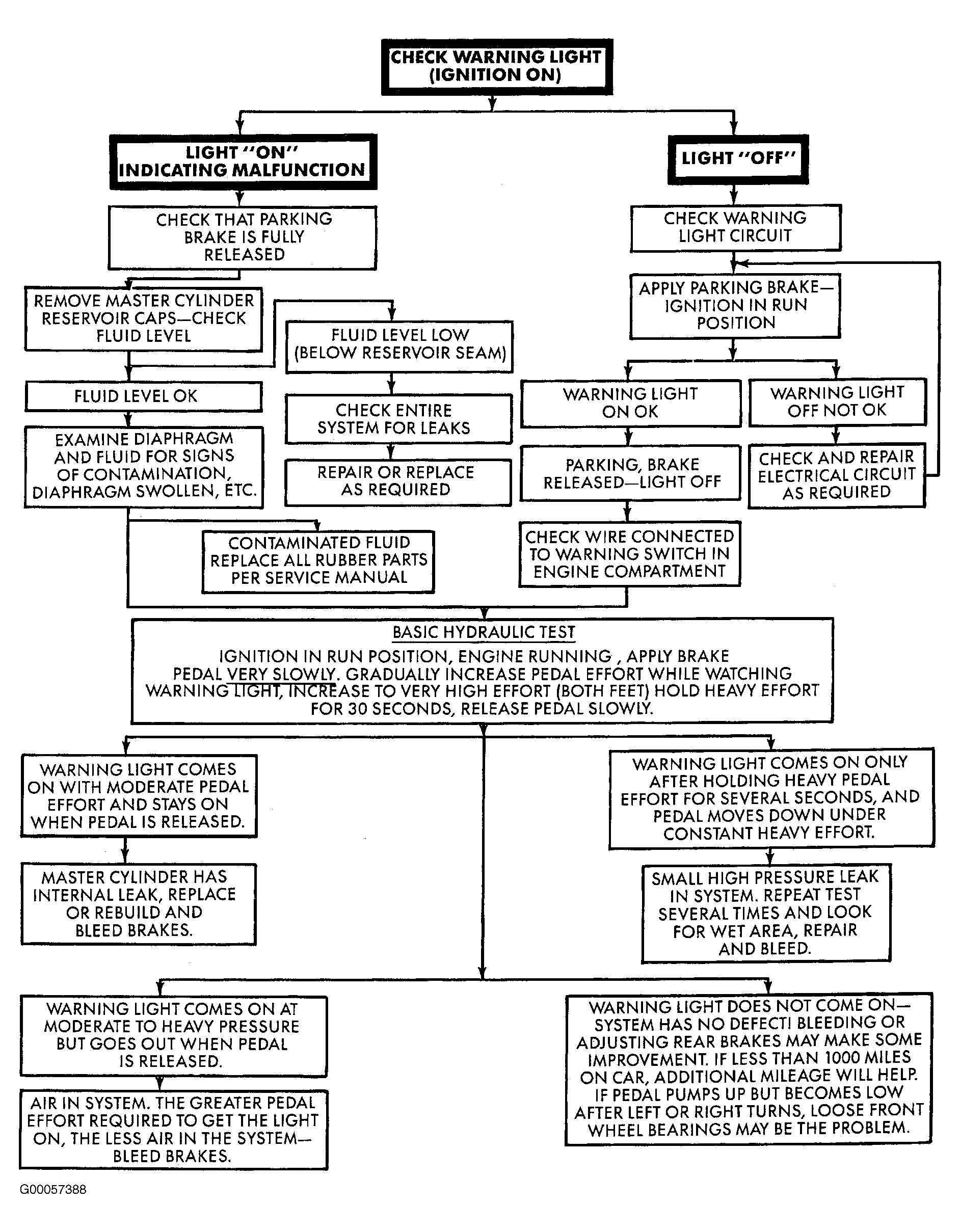

Fig 2: Chart 2: Brake Warning Lamp Diagnosis (2 Of 4)
Courtesy of CHRYSLER CORP.

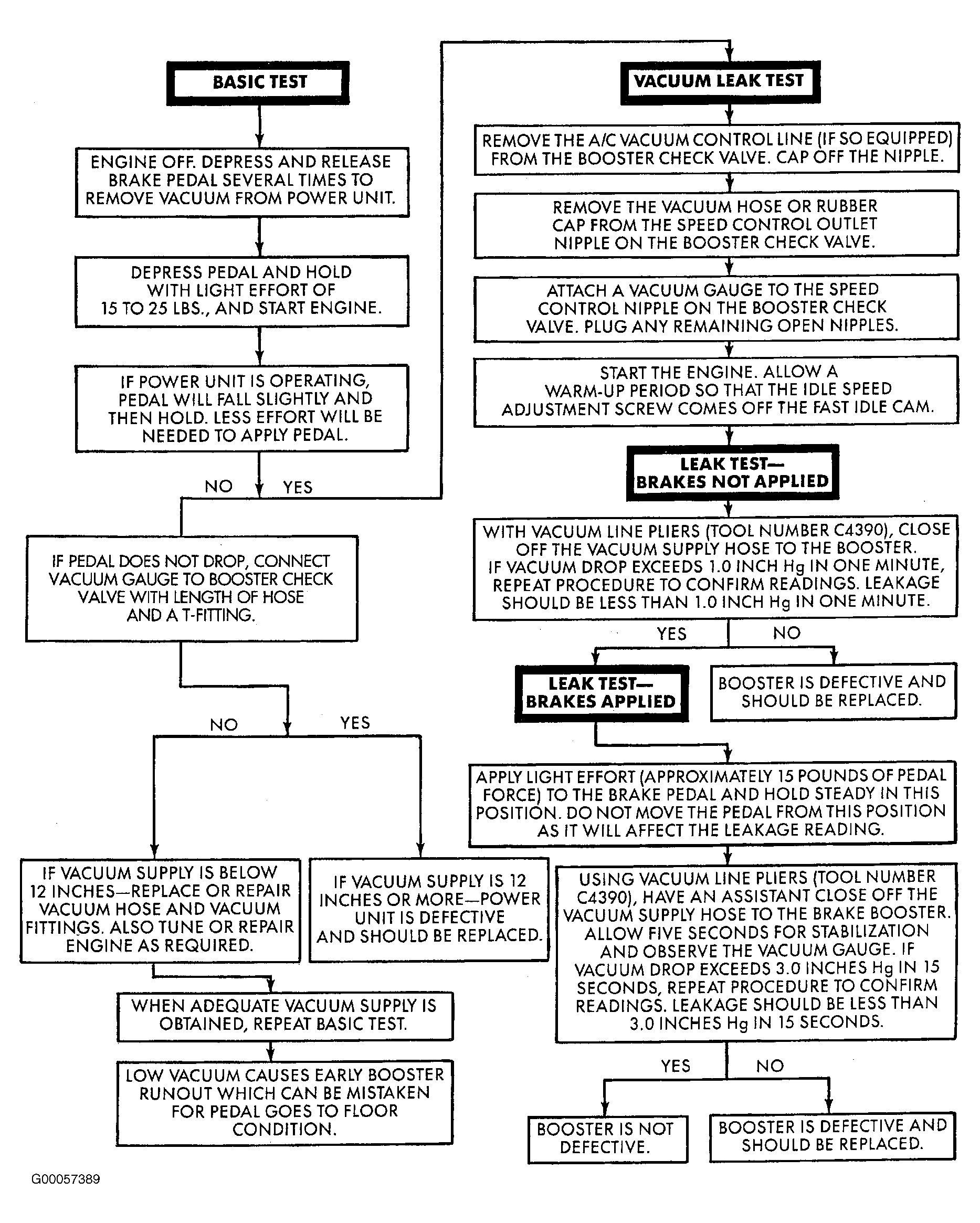

Fig 3: Chart 3: Power Brake System Diagnostics (3 Of 4)
Courtesy of CHRYSLER CORP.

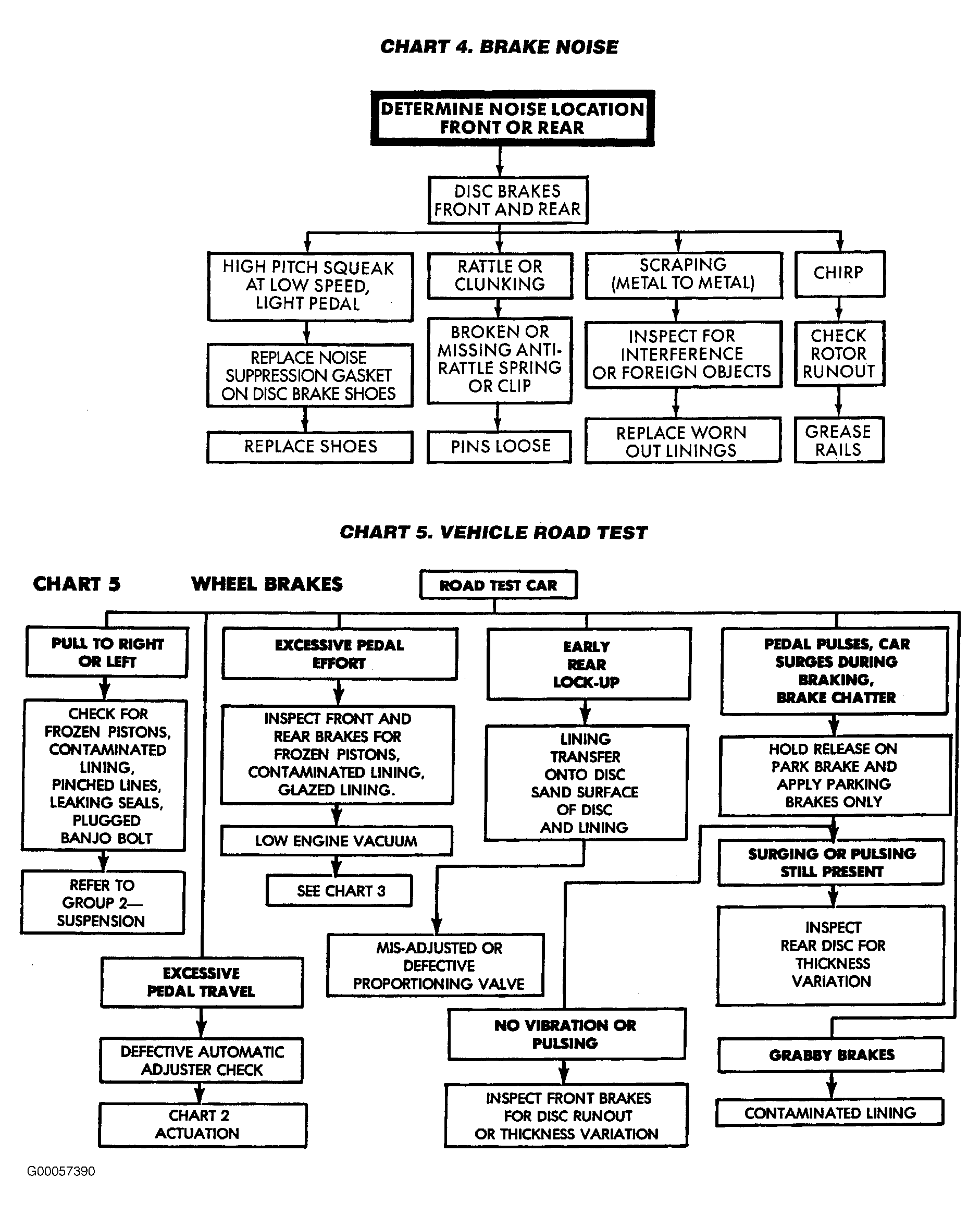

Fig 4: Chart 4-5: Brake Noise Diagnosis & Vehicle Road Test (4 Of 4)
Courtesy of CHRYSLER CORP.
