Rear Disc Brakes (1997): Hub/Bearing

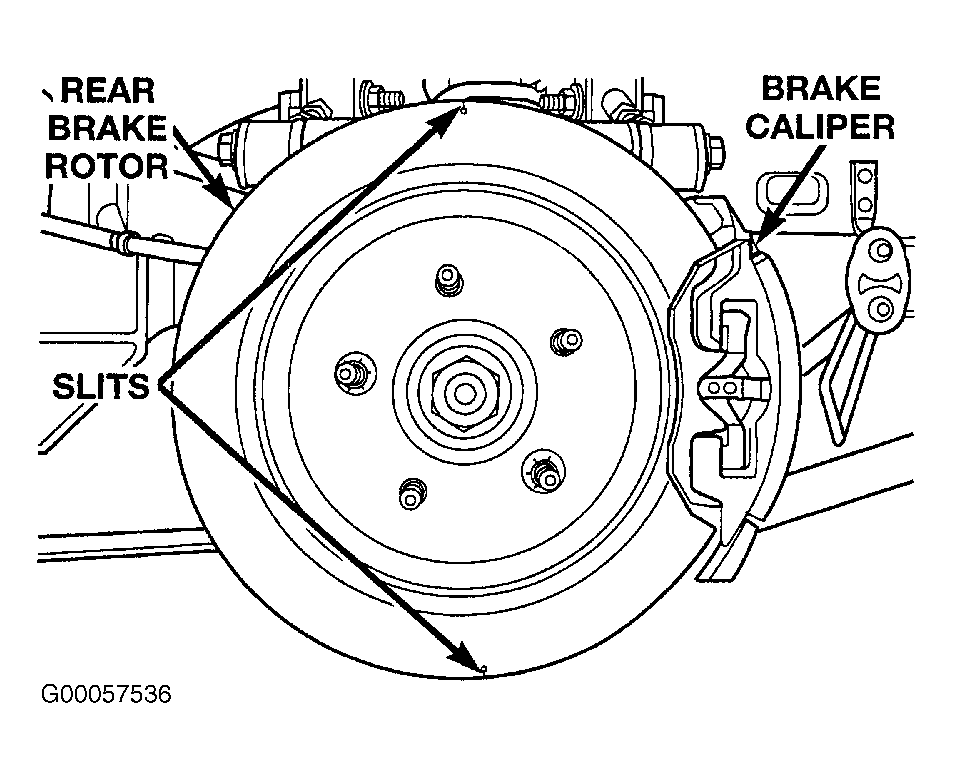

The hub/bearing is used to mount rear brake rotor and wheel. The rotor is mounted to front face of hub by wheel mounting studs and retained by wheel mounting nuts. The hub/bearing is mounted to steering knuckle using four mounting bolts. The transaxle halfshaft mounts to center of hub/bearing assembly using a hub nut.
