Resurfacing Brake Rotor

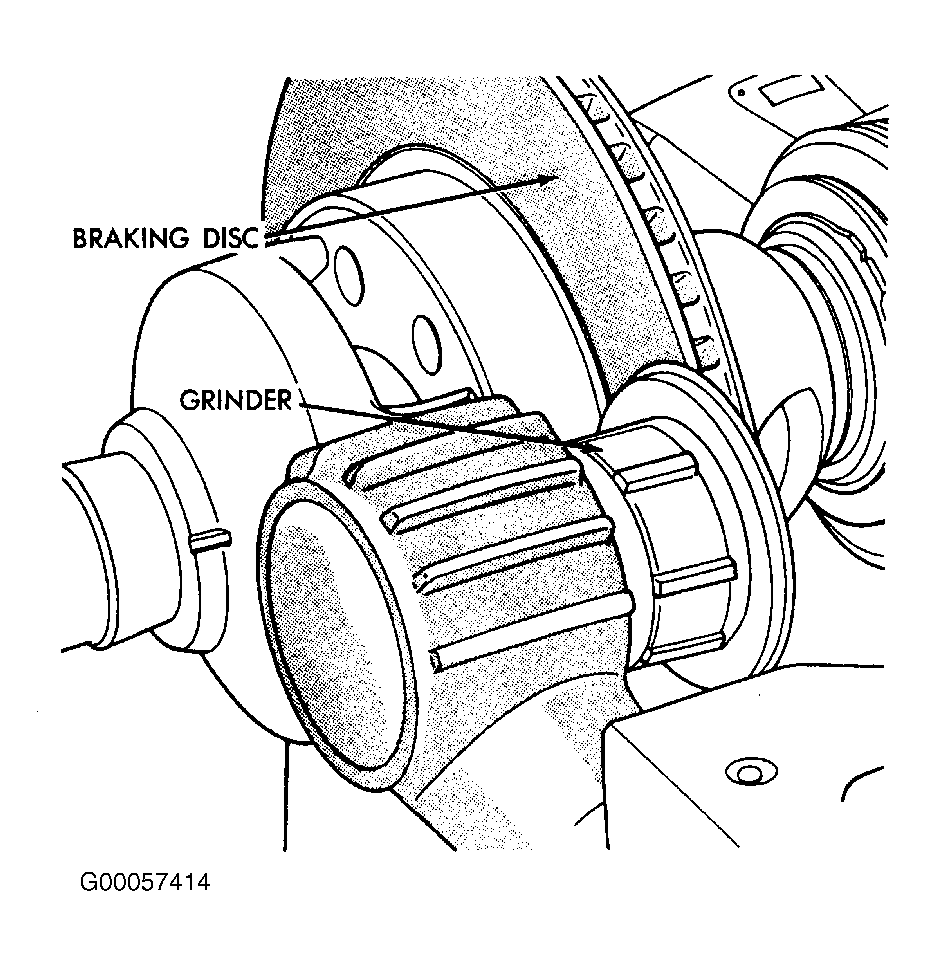

This operation can be used when a rotor's surface has rust, lining deposits, excessive lateral runout or thickness variation on it's braking surface. A sanding rotor attachment will remove surface contamination without removing much rotor material. See Figure . It will generally follow variations in thickness that are in rotor.

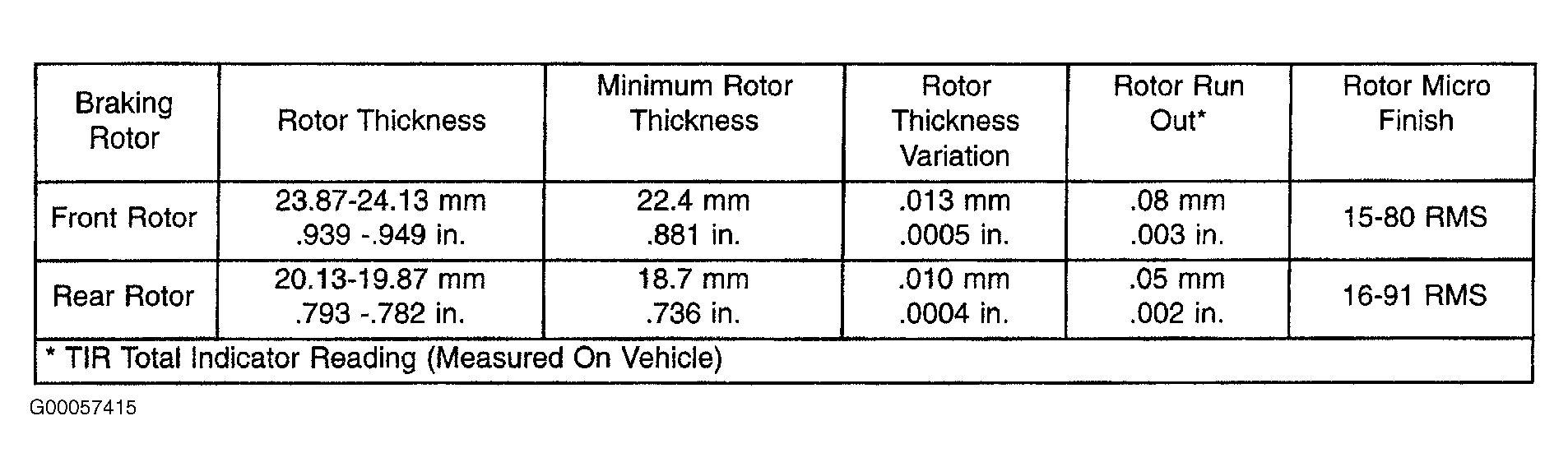

Fig 1: Rotor Refinishing Limits/Tolerances
G00057415Courtesy of CHRYSLER CORP.
