Front Disc Brakes: Notes

The single piston, floating caliper front disc brake system consists of following components. See Fig 1 and Fig 2 .

• Front disc brake caliper.
• Brake shoes and linings.
• Rotor
• Disc brake caliper adapter.
• Hub/Bearing

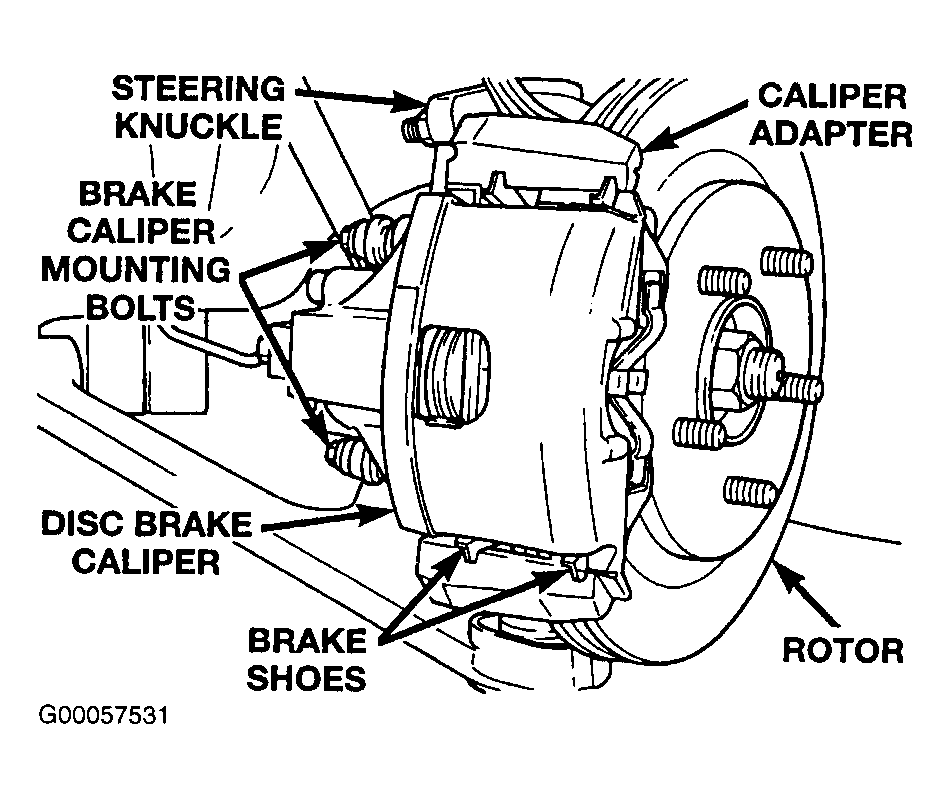

Fig 1: Front Disc Brake Components

Courtesy of CHRYSLER CORP.

Fig 2: Front Disc Brake Caliper Assembly (Exploded View)

Courtesy of CHRYSLER CORP.
