Door WATERSHIELD: Removal

  1. Remove door trim panel.
  2. Remove door trim pull cup mount bracket.
  3. Remove speaker.
  4. Peel watershield away from perimeter of inner door panel. See Fig 1 .

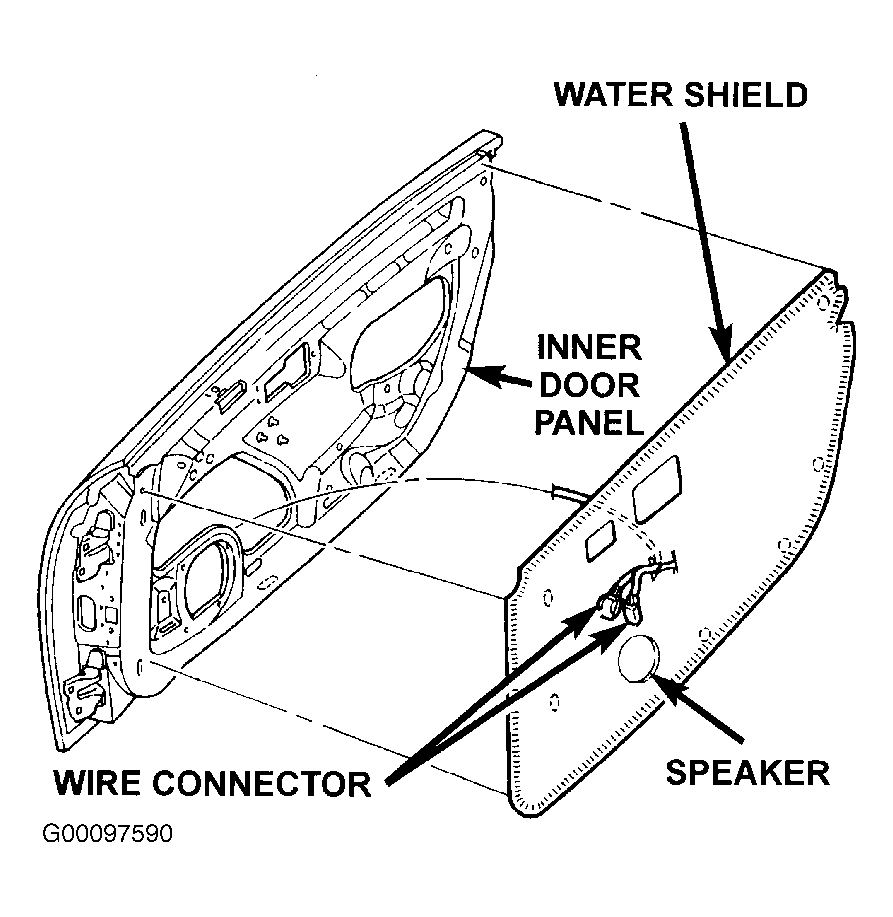

Fig 1: Removing Door Watershield
G00097590Courtesy of CHRYSLER CORP.
