No Intermittent Wiper, Low & High Speeds okay

  1. Turn ignition switch to ON position.
  2. Remove intermittent relay from PDC.
  3. Check for battery voltage at terminals No. 13 and 29 of intermittent relay in PDC. See Figure . If no voltage repair V6 circuit. If voltage is okay, go to next step.
  4. Turn ignition switch to OFF position. Disconnect motor wire harness connector. Place Multi-Function switch in Intermittent wiper position. Check for continuity between terminal No. 37 of PDC and terminal No. 5 of wiper motor wire harness connector. See Figure . If not okay, go to next step. If okay, go to Step  6 .
  5. Refer to Multi-Function Switch Test and perform test. If okay, repair V3/V5 circuit. If not okay, replace Multi-Function switch.
  6. Install intermittent relay in PDC. Disconnect BCM connectors.
  7. Place a jumper wire between ground and terminal No. 73 of BCM. See Fig 1 . Do wiper run continuous? If no, go to next step. If yes, go to Step  10 .
  8. Refer to Multi-Function Switch Test and perform test. If okay, go to next step. If not okay, replace Multi-Function switch.
  9. Check for continuity between terminal No. 7 of BCM and terminal No. 1 of Multi-Function switch. If okay, replace BCM. If not okay, repair wire circuit.
  10. Remove intermittent relay. Check for continuity between terminal 73 of BCM and terminal 15 of PDC. If okay, replace intermittent relay. If not okay, repair wire circuit.

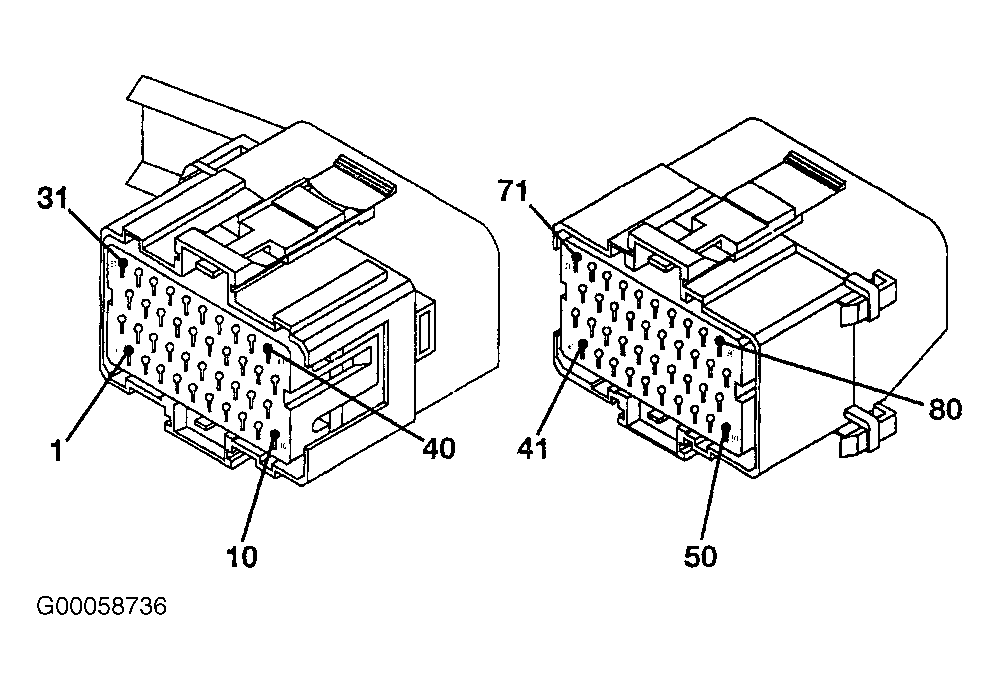

Fig 1: BCM Connectors
G00058736Courtesy of CHRYSLER CORP.
