Foot Well Courtesy Lamp Bulb

The foot well courtesy lamp bulb is located on either side of floor tunnel under instrument panel above foot well area. See Fig 1 and Fig 2 . The bulb is exposed and is serviced by pulling bulb straight outward.

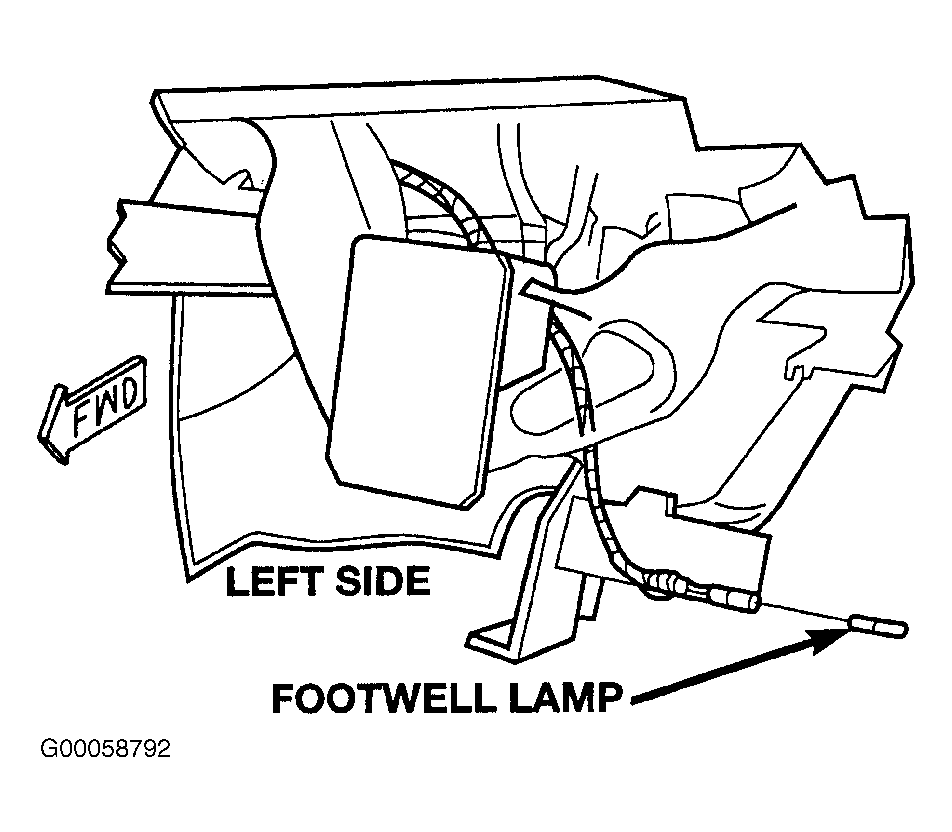

Fig 1: Left Side Foot Well Lamp

Courtesy of CHRYSLER CORP.

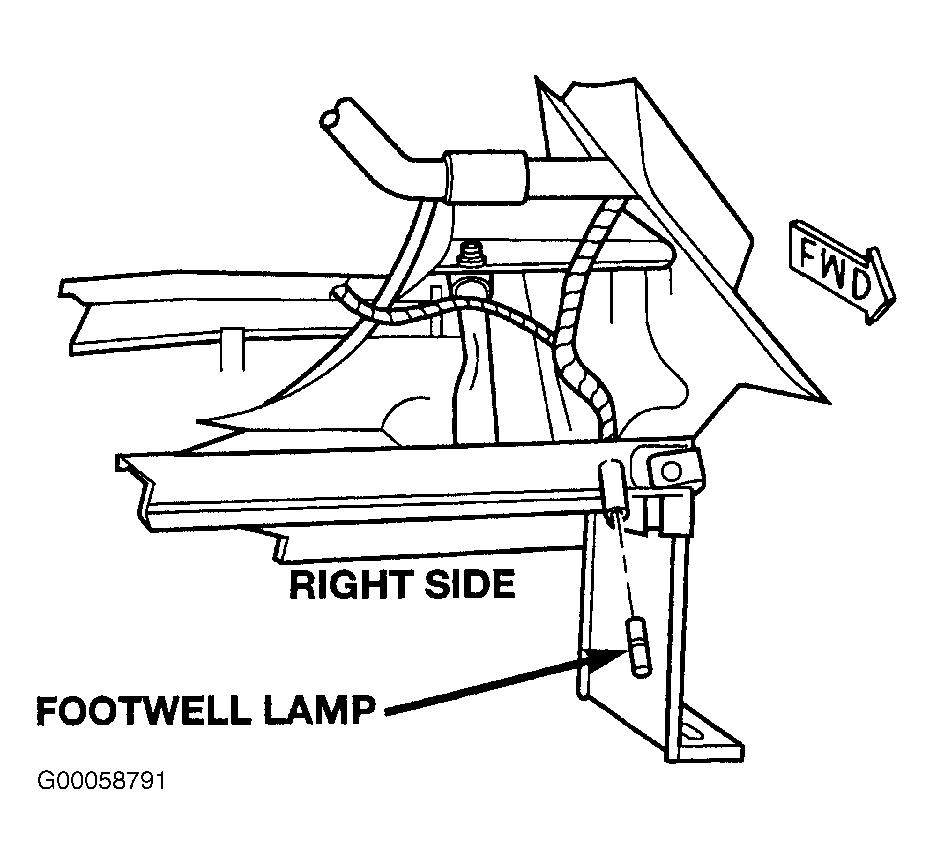

Fig 2: Right Side Foot Well Lamp

Courtesy of CHRYSLER CORP.
