Headlamp Alignment

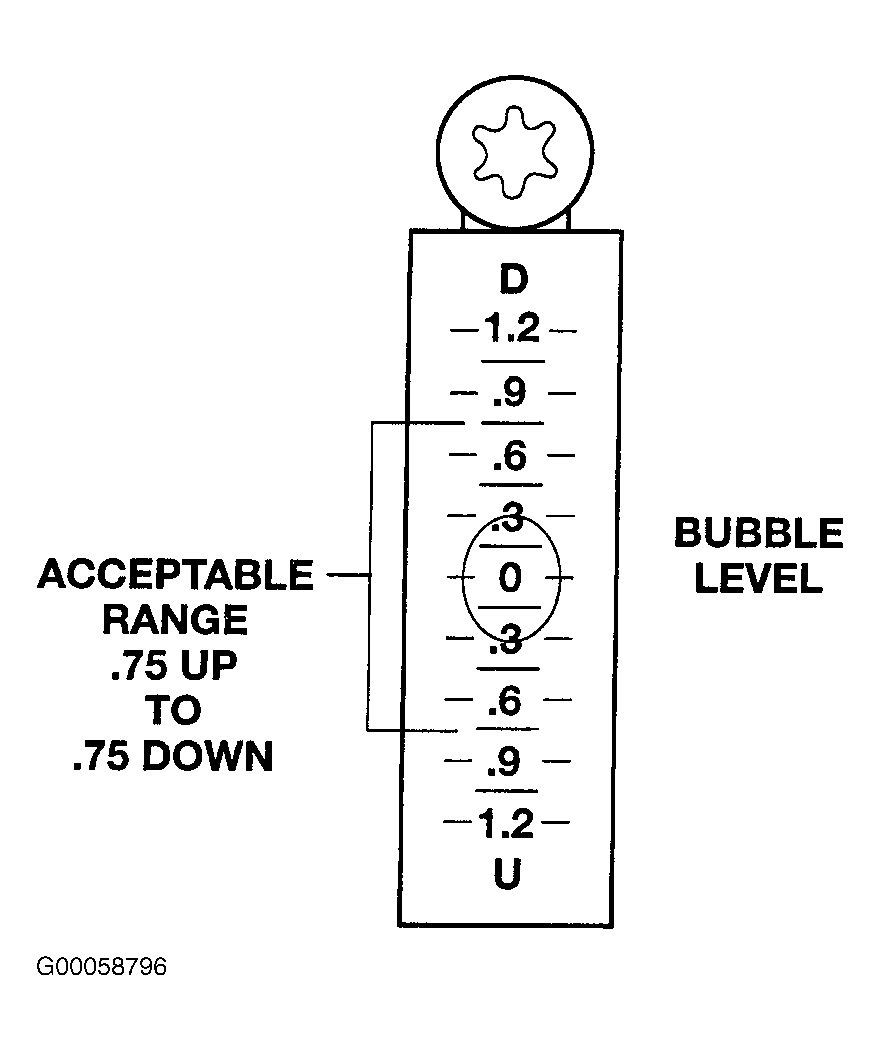

Headlamps are equipped with a bubble level to aid up/down headlamp alignment. See Fig 1 . The bubble level is used to assist headlamp alignment when compensating for vehicle ride height changes due to heavy luggage compartment loads. See Figure . The bubble level cannot be calibrated, headlamps must be replaced if bubble level vial is faulty. An aiming scale and pointer system is located on top of headlamp module to assist left/right alignment.
