Removal & Instalation

Remove 2 screws from vacuum reservoir. Remove vacuum hoses from reservoir. See Fig 1 . Remove vacuum reservoir. To install, install vacuum reservoir. Install 2 screws and tighten. Install vacuum hoses to reservoir.

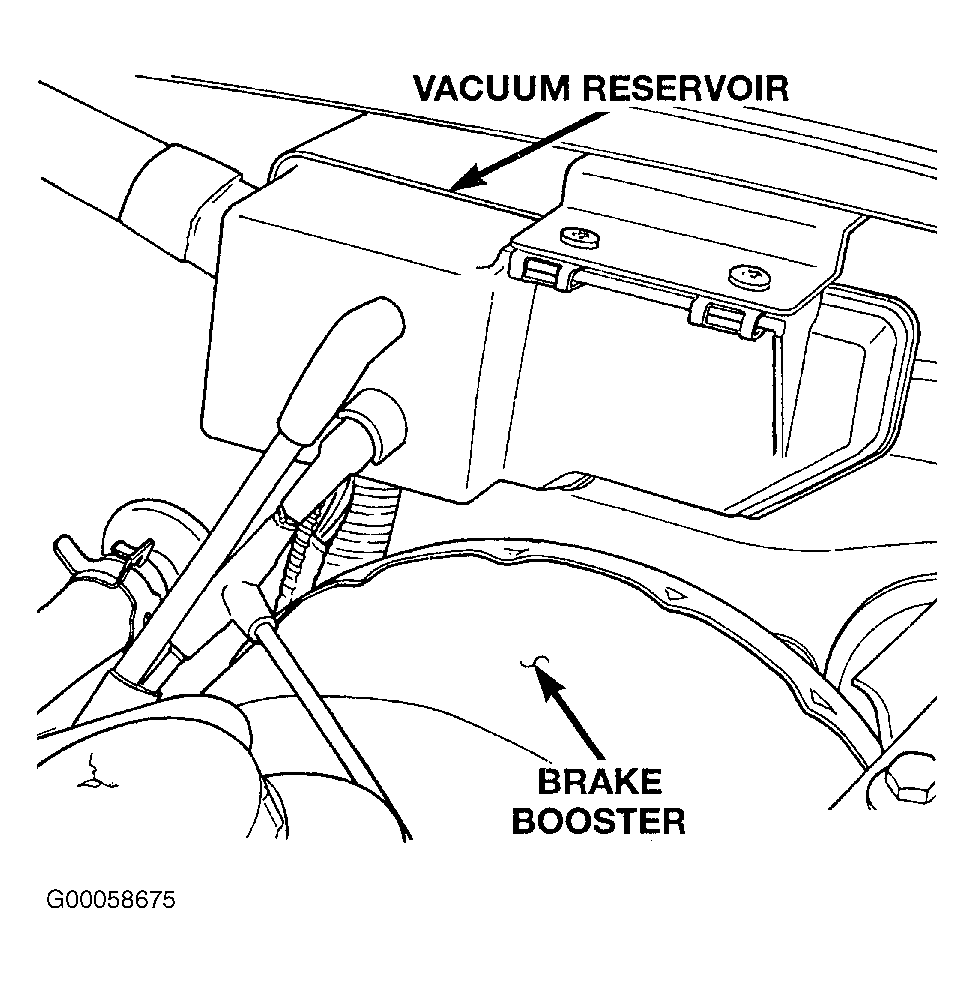

Fig 1: Identifying Vacuum Reservoir

Courtesy of CHRYSLER CORP.
