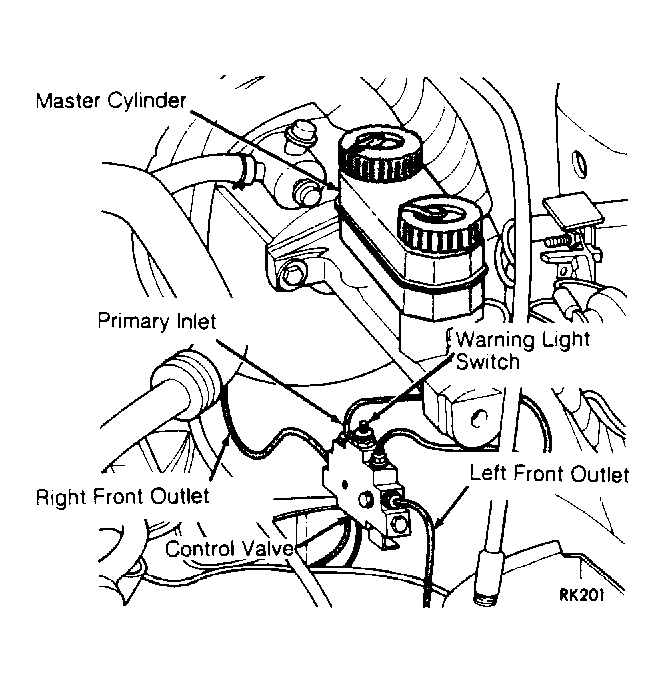

Master Cylinder: Installation
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1991 Plymouth Sundance, 1991 Plymouth Acclaim, 1991 Dodge Spirit, 1991 Dodge Shadow, and 1991 Dodge Dynasty. However, it is still accessible from the selected car via links, so may be relevant.
- Bleed master cylinder. See BENCH BLEEDING MASTER CYLINDER . To complete installation, reverse removal procedure. Bleed hydraulic brake system. See BLEEDING BRAKE SYSTEM .
- Check master cylinder compensating ports. Remove master cylinder cover and observe brake fluid. Have an assistant press brake pedal. A small spurt should appear in one or both reservoirs. If no spurt appears, push rod may be improperly adjusted.
- On manual brakes, adjust push rod at brake pedal. Push rod should have a slight amount of play when brake pedal is released.
