System, Anti-Lock Warning Light & Pump/Motor Relay: Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 1992 Eagle Premier, 1992 Dodge Monaco, 1992 Dodge Dynasty, 1992 Chrysler New Yorker Fifth Avenue, and 1992 Chrysler New Yorker. However, it is still accessible from the selected car via links, so may be relevant.

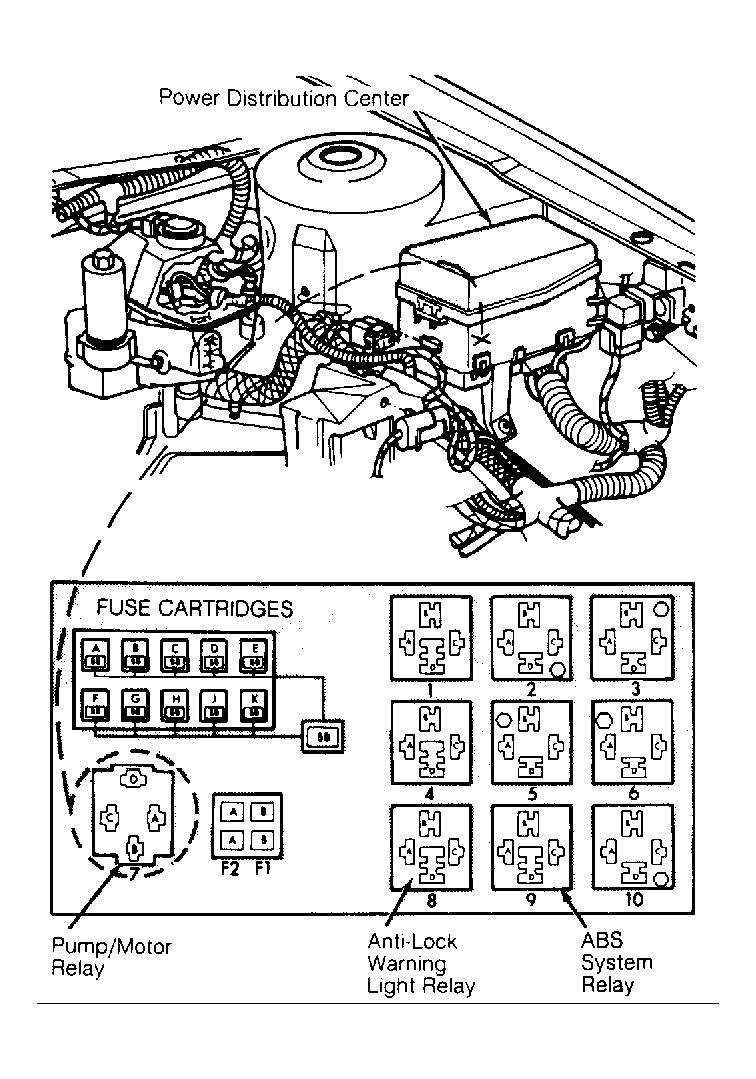

NOTE: See Figure , Figure and Figure to locate and identify ABS relay, fuse cartridge and connector circuits.
