Section 7 (Anti-Lock Brake System): Description
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 1992 Eagle Premier, 1992 Dodge Monaco, 1992 Dodge Dynasty, 1992 Chrysler New Yorker Fifth Avenue, and 1992 Chrysler New Yorker. However, it is still accessible from the selected car via links, so may be relevant.

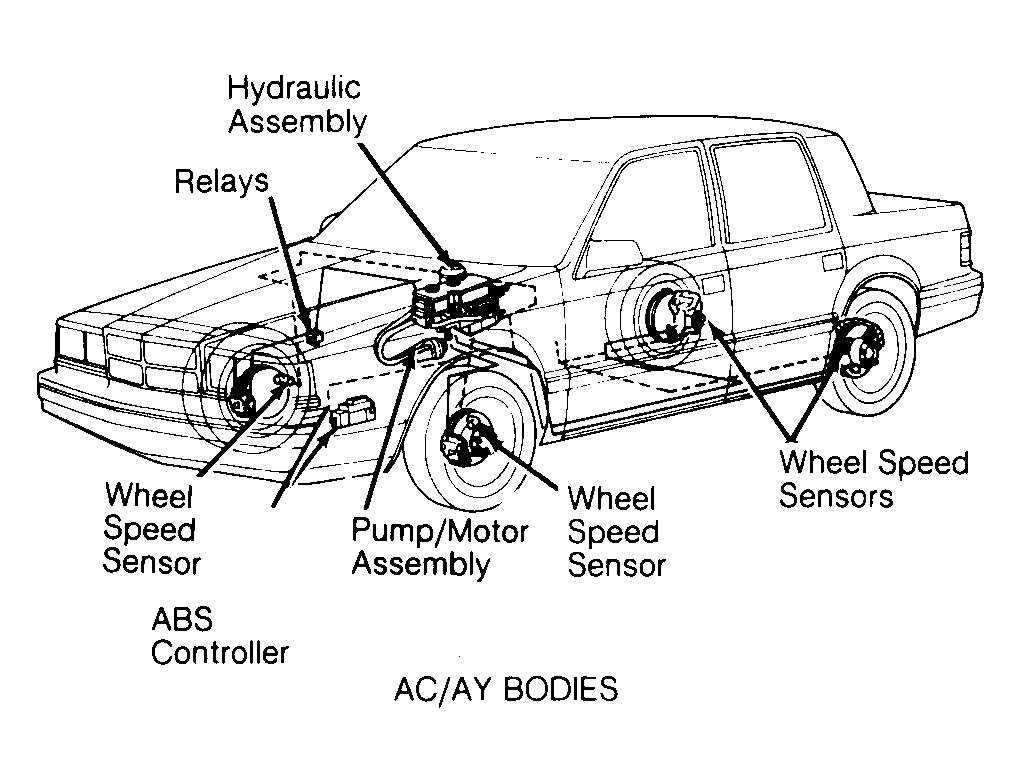

Bendix-10 Anti-Lock Brake System (ABS) is designed to prevent wheel lock-up during heavy braking. This allows operator to maintain steering control, while stopping vehicle in shortest distance possible. Major components consist of hydraulic assembly, 4 wheel speed sensors, Anti-Lock Brake Controller (CAB), 2 warning lights (Red BRAKE and MD14Amber ANTI-LOCK) and pump/motor assembly. See Figure . ABS has a self-diagnostic system to warn of system malfunction and for trouble shooting.
NOTE:
For more information on brake system, see appropriate BRAKE SYSTEM article. Refer to the following menu:
- For 1990 Models, see: BRAKE SYSTEM .
- For 1991 Models, see: BRAKE SYSTEM .
- For 1992 Models, see: BRAKE SYSTEM .
