Test 8B: Boost Pressure Fault

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 1992 Eagle Premier, 1992 Dodge Monaco, 1992 Dodge Dynasty, 1992 Chrysler New Yorker Fifth Avenue, and 1992 Chrysler New Yorker. However, it is still accessible from the selected car via links, so may be relevant.

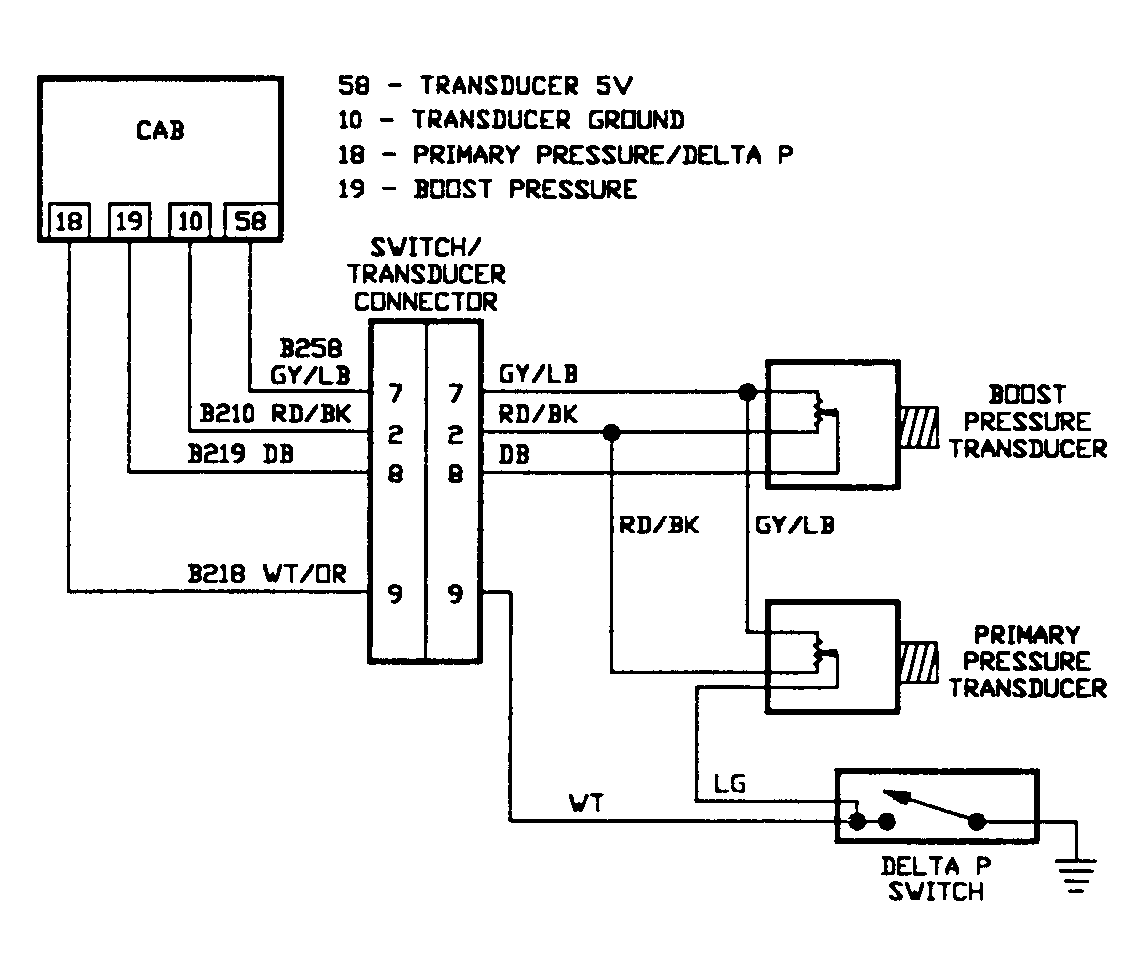

Fig 1: Test 8B - Boost Pressure Fault, Schematic

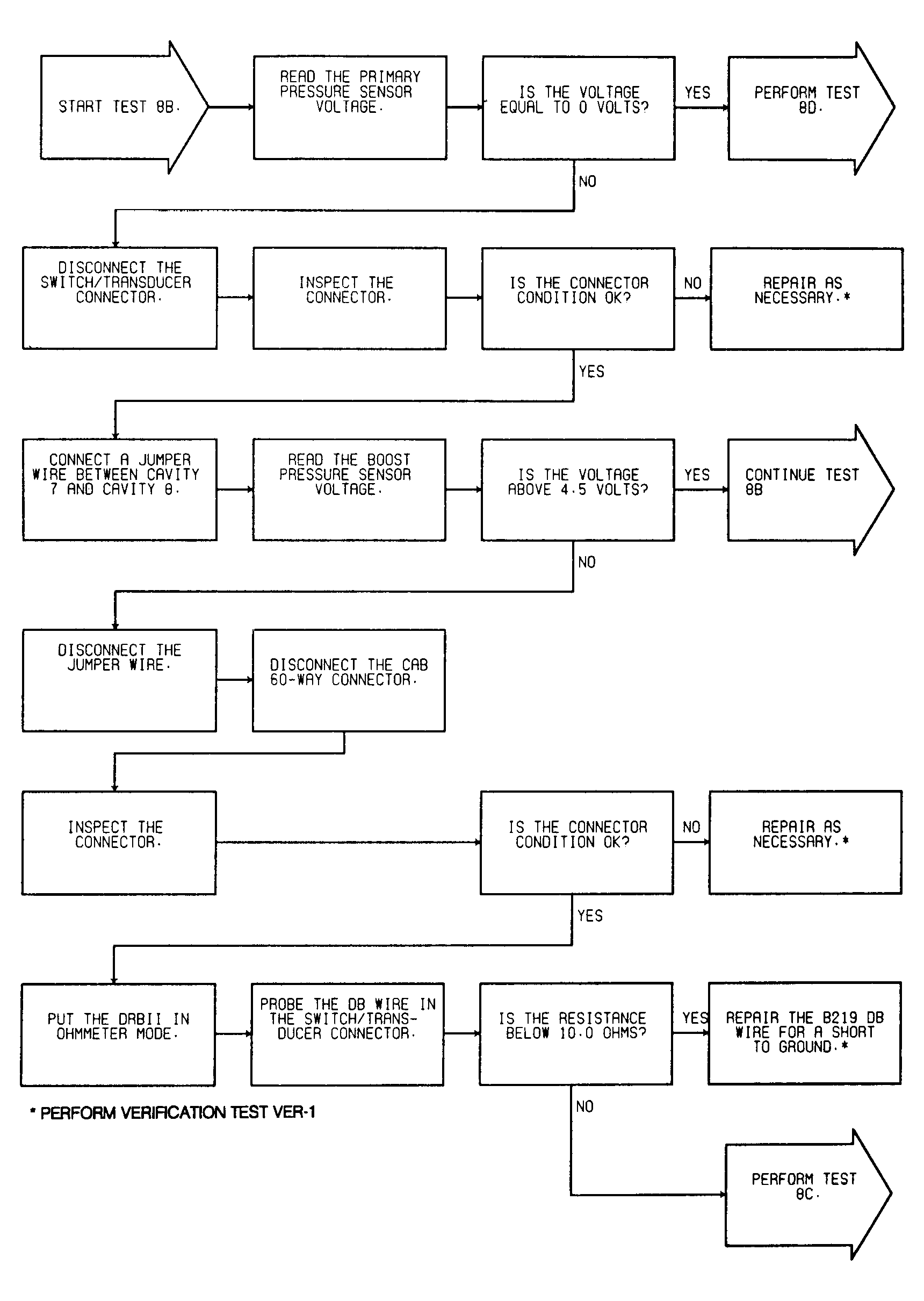

Fig 2: Test 8B - Boost Pressure Fault, Flow Chart

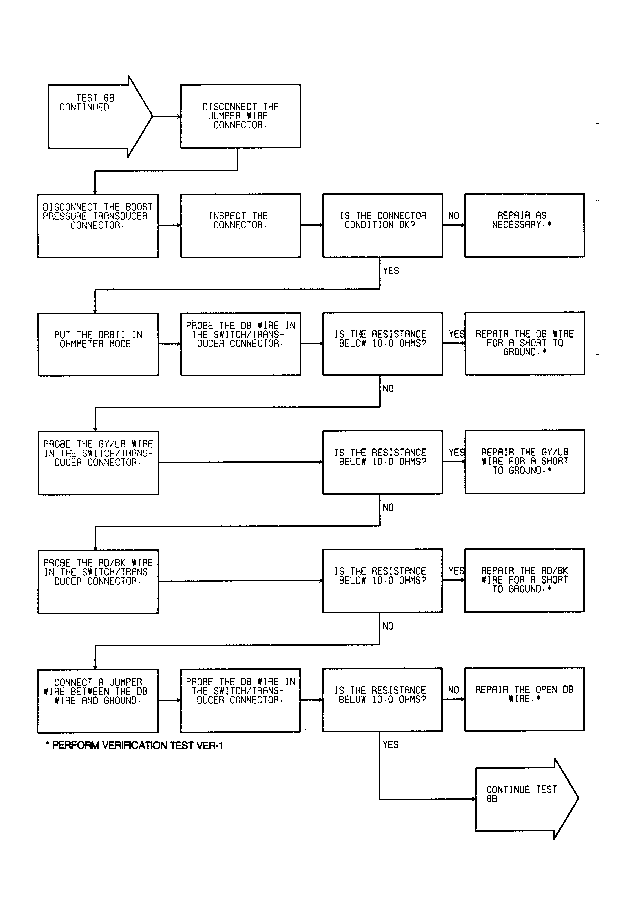

Fig 3: Test 8B - Boost Pressure Fault, Flow Chart

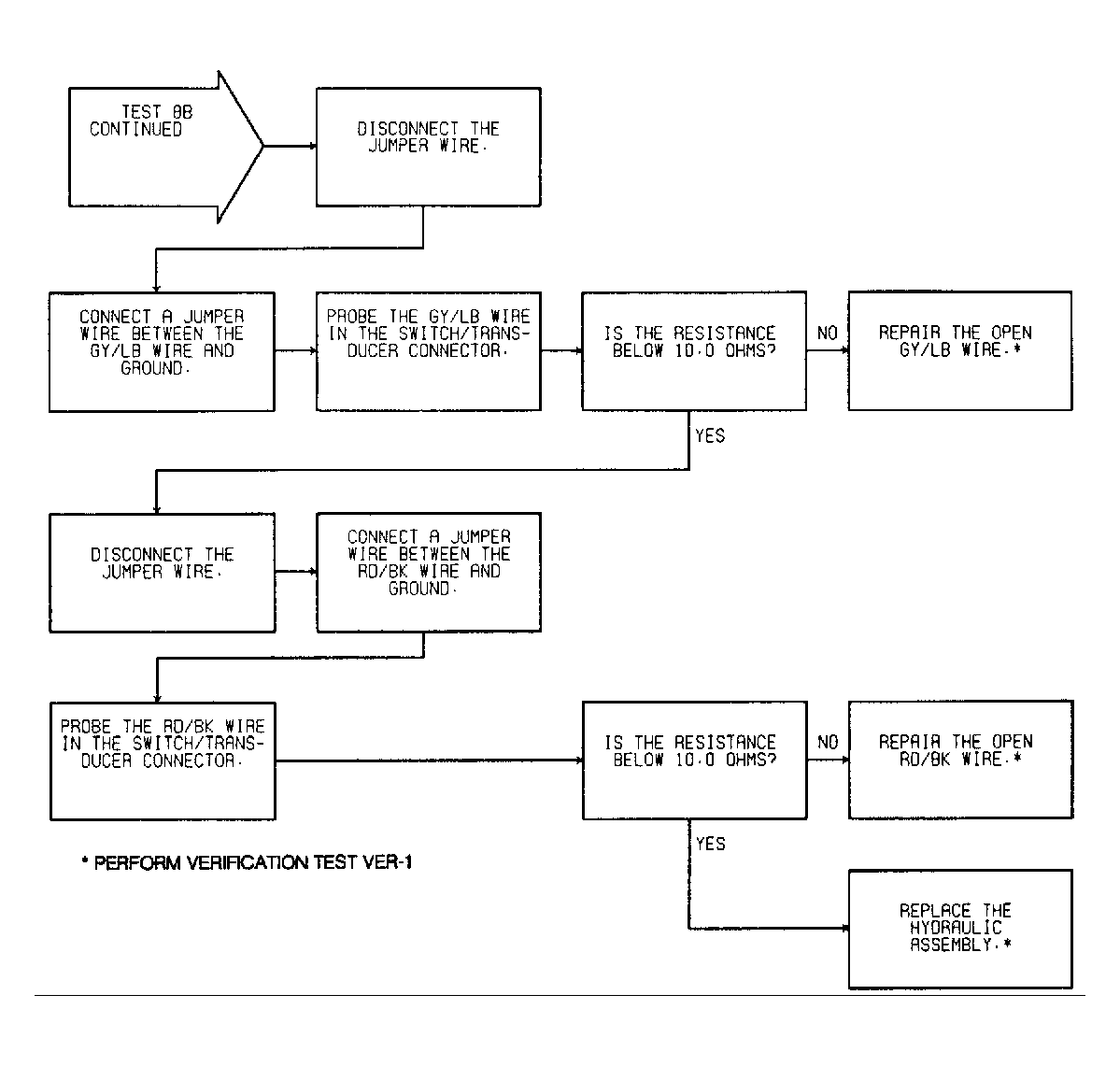

Fig 4: Test 8B - Boost Pressure Fault, Flow Chart
