Test 21D: Hydraulic Pump/Motor Circuit Test

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 1992 Eagle Premier, 1992 Dodge Monaco, 1992 Dodge Dynasty, 1992 Chrysler New Yorker Fifth Avenue, and 1992 Chrysler New Yorker. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Test 21D - Hydraulic Pump/Motor Circuit Test, Schematic
G91B10869
Fig 2: Test 21D - Hydraulic Pump/Motor Circuit Test, Flow Chart
G91H10873

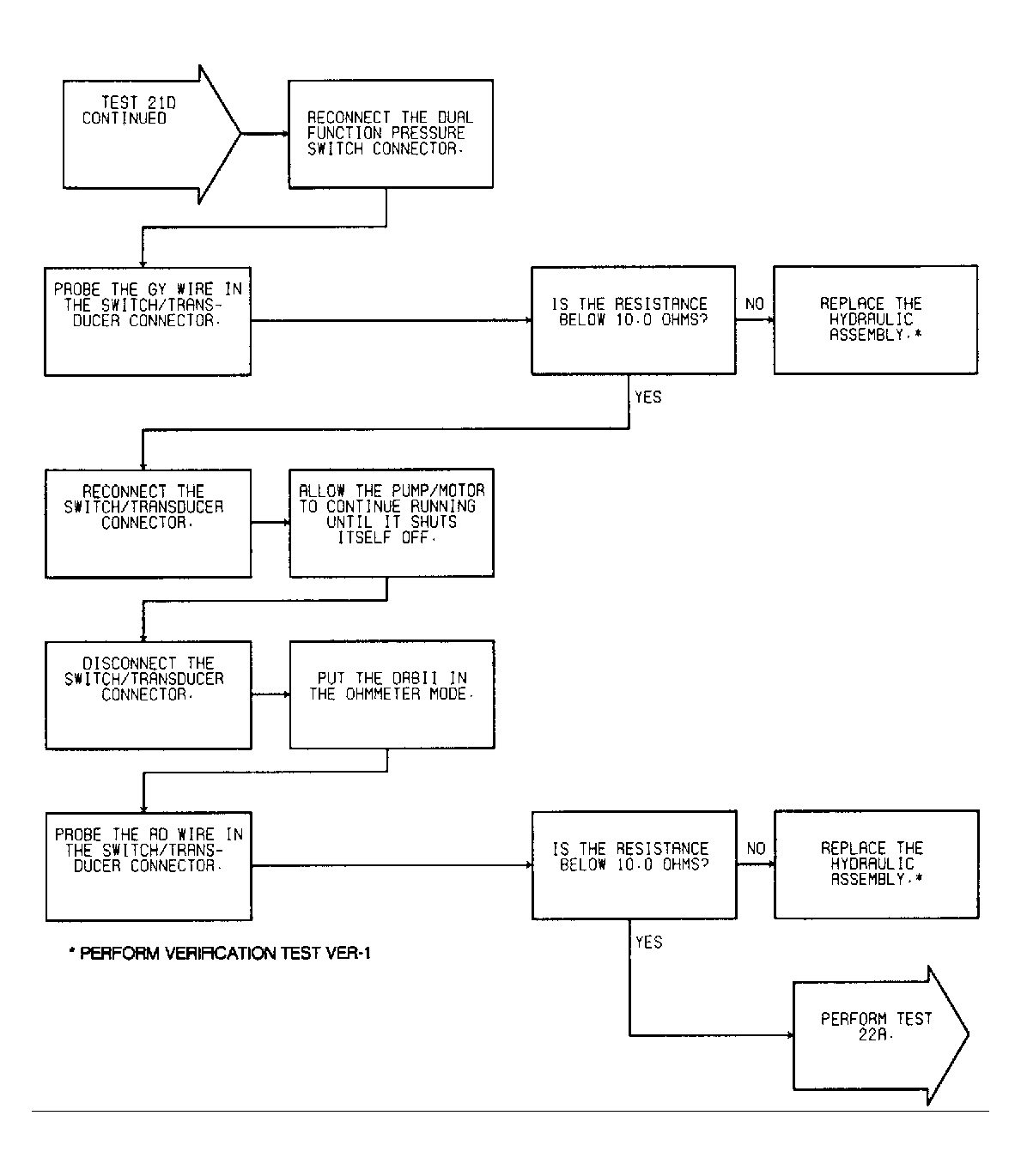

Fig 3: Test 21D - Hydraulic Pump/Motor Circuit Test, Flow Chart
G91I10874
