Test 10H: LR Wheel Speed Sensor Fault

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 1992 Eagle Premier, 1992 Dodge Monaco, 1992 Dodge Dynasty, 1992 Chrysler New Yorker Fifth Avenue, and 1992 Chrysler New Yorker. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Test 10H - LR Wheel Speed Sensor Fault, Schematic

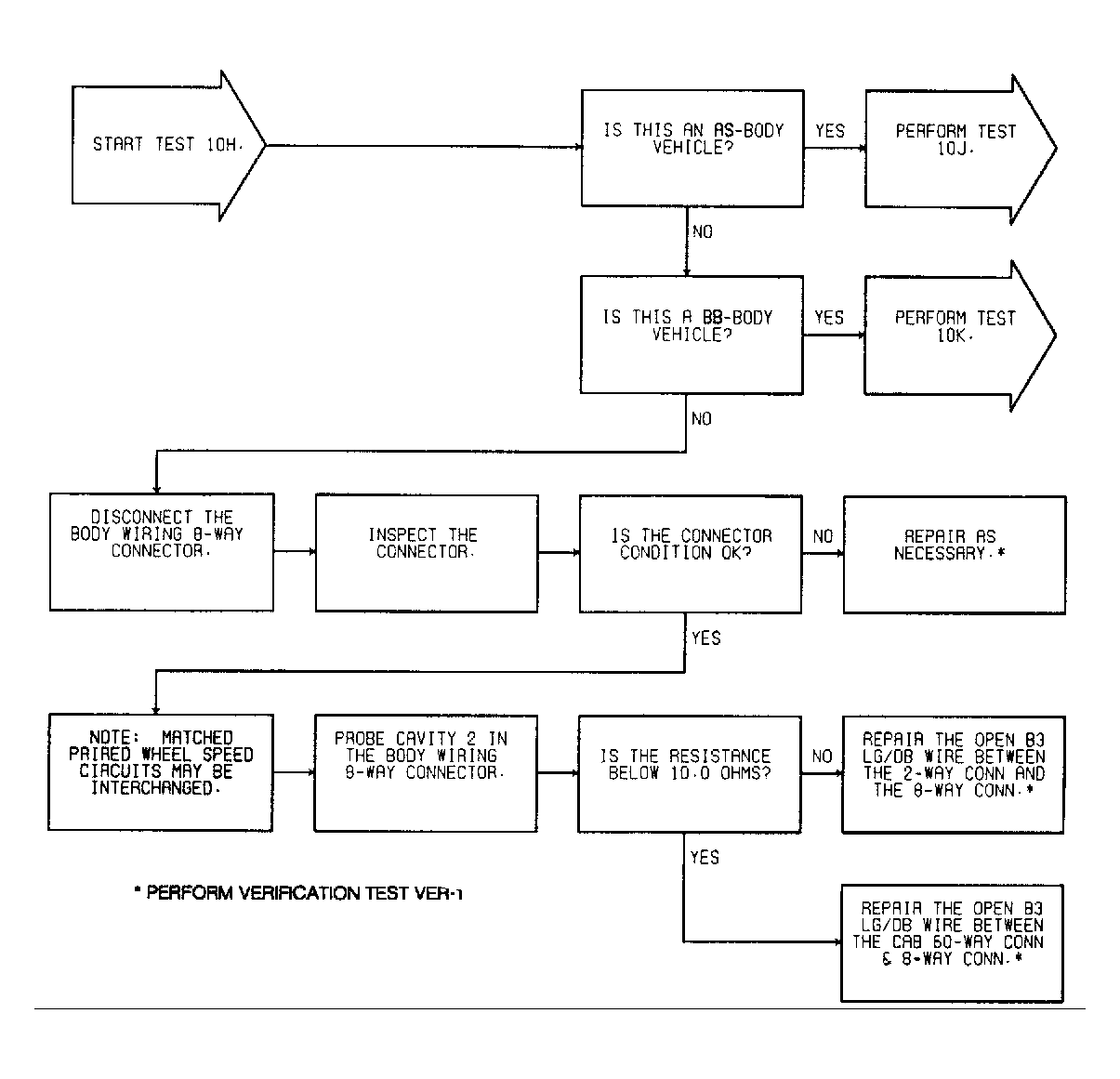

Fig 2: Test 10H - LR Wheel Speed Sensor Fault, Flow Chart
