Removal & Installation (AA Body)

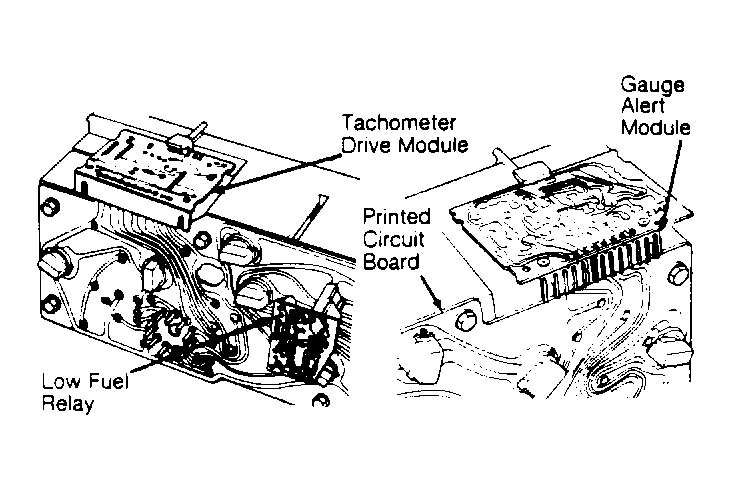

Remove instrument cluster. See INSTRUMENT CLUSTER R & I under REMOVAL & INSTALLATION. Remove gauge alert module or low fuel relay from printed circuit board. See Fig 1 . To install, reverse removal procedure. Ensure module or relay is correctly aligned with printed circuit board terminals to avoid damaging printed circuit board.
