Removal & Installation (Colt Vista)

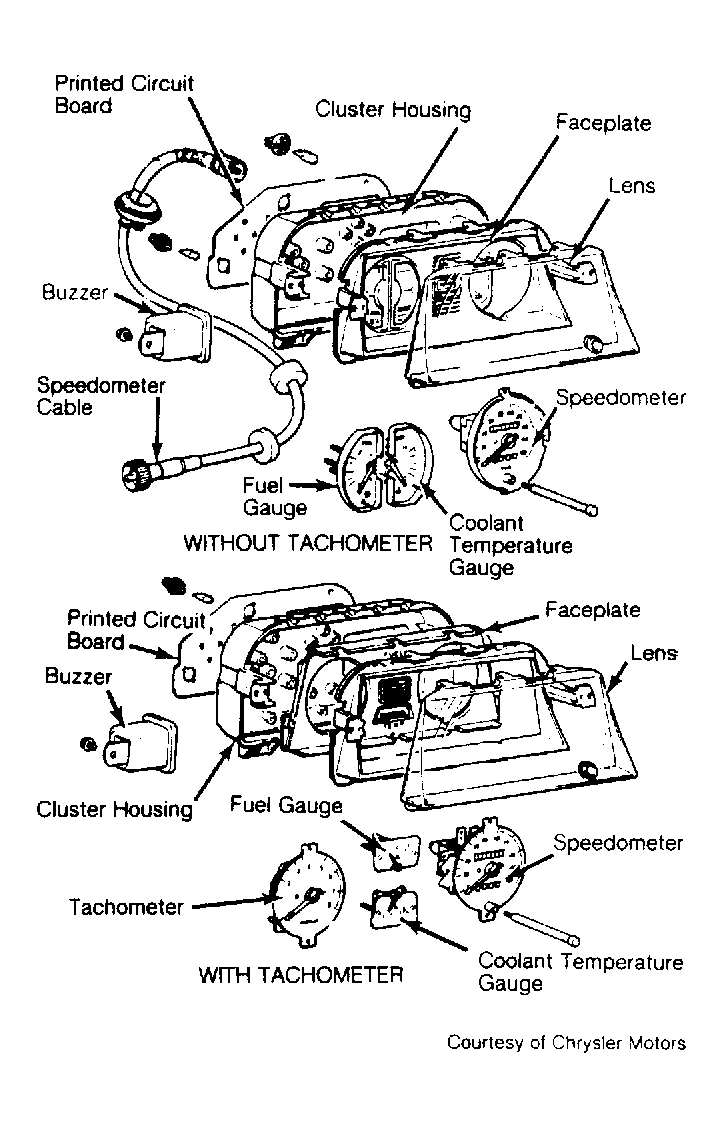

Disconnect negative battery cable. Remove steering wheel and ashtray. Remove cluster hood mounting screws and remove cluster hood. Remove 4 cluster mounting screws and pull cluster slightly toward rear. Disconnect speedometer cable and unplug electrical connectors. See Fig 1 . Remove instrument cluster. To install, reverse removal procedure.
