Drum Brake Shoes - MONACO & Premier: Removal
- Remove wheel and tire assembly. Remove grease cap from hub and drum assembly. Remove wheel bearing lock nut. Remove drum and hub assembly as a unit, being careful not to drag seal across spindle threads.

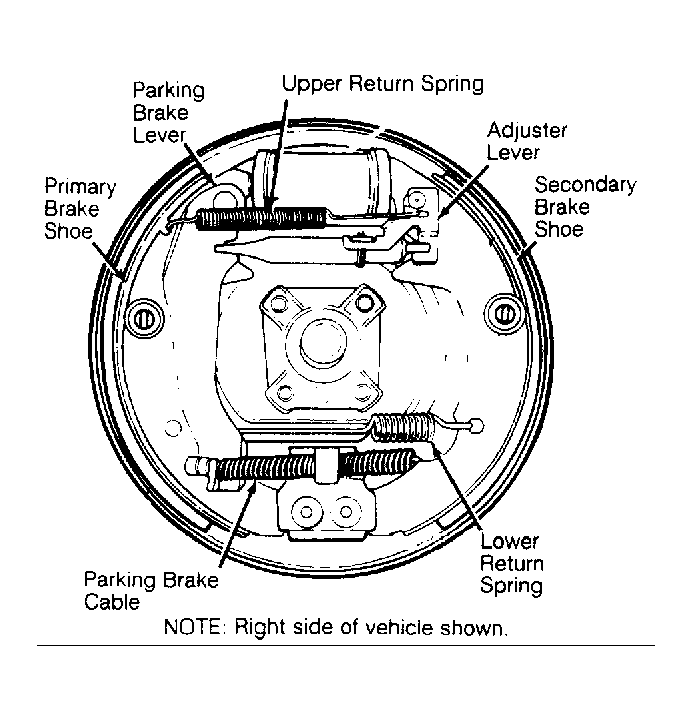

- Remove upper return spring. Remove adjuster lever spring. Remove hold-down spring and pins. Lift brake shoe and adjuster assembly off support plate. Install wheel cylinder cup retainer. Remove parking brake cable from parking brake lever. Remove parking brake lever from rear shoe.
Courtesy of CHRYSLER MOTORS
