Instrument Cluster Bulbs R & I

Instrument cluster may require removal for bulb replacement. Bulbs can be replaced by removing bulb from rear of instrument cluster. Note bulb identification. See Fig 1 through Fig 5 .

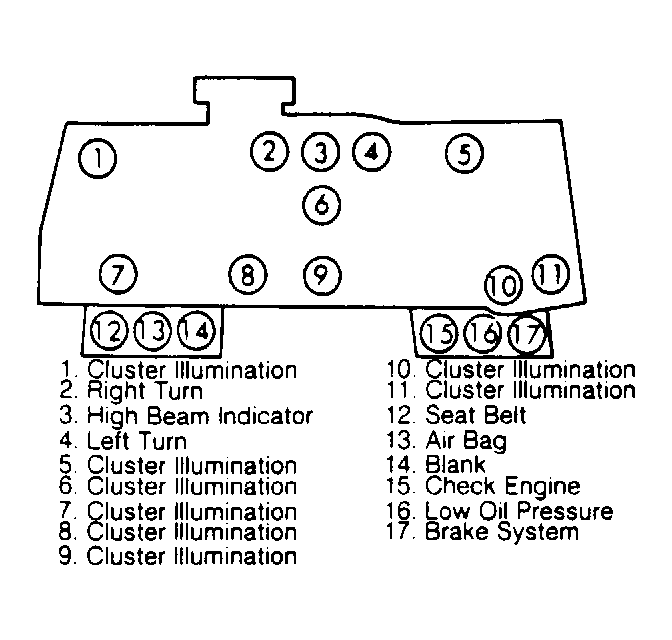

Fig 1: Instrument Cluster Bulb Identification (A Body)

Courtesy of CHRYSLER MOTORS.

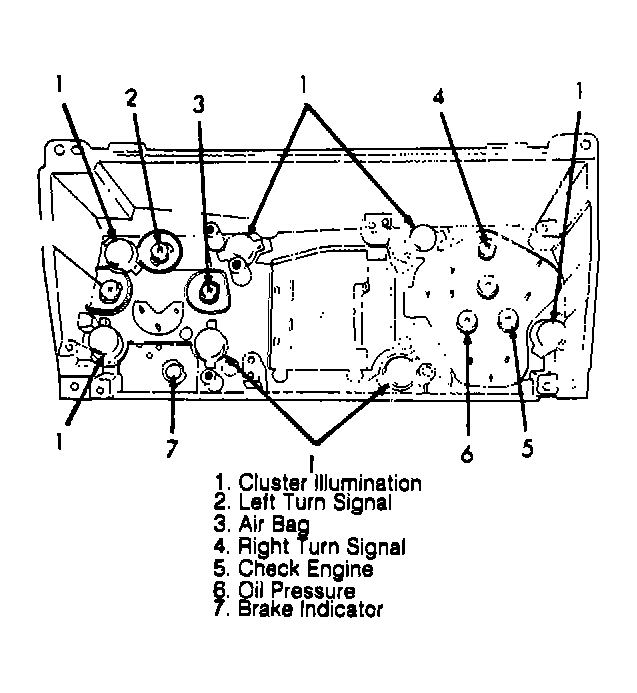

Fig 2: Instrument Cluster Bulb Identification (C & Y Bodies)

Courtesy of CHRYSLER MOTORS.

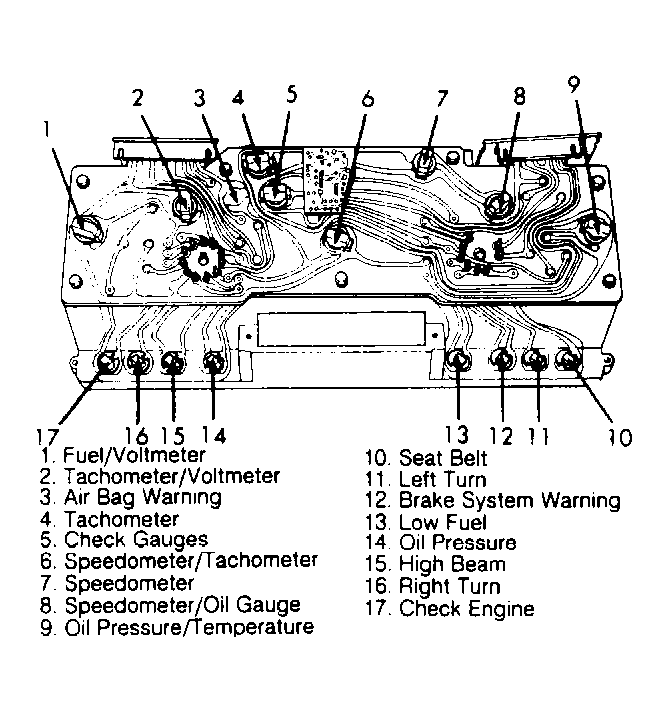

Fig 3: Instrument Cluster Bulb Identification (G & J Bodies)

Courtesy of CHRYSLER MOTORS.

Fig 4: Instrument Cluster Bulb Identification (L Body)

Courtesy of CHRYSLER MOTORS.

Fig 5: Instrument Cluster Bulb Identification (P Body)

Courtesy of CHRYSLER MOTORS.
