Temperature Gauge Circuit Test

Remove temperature gauge (or temperature-voltmeter-oil pressure gauge assembly). Check for continuity in wire between temperature sensor and temperature sensor input pin. With ignition in "ON" position, check for battery voltage at positive (B+) pin and ground pin. See Fig 1 thru Fig 6 .

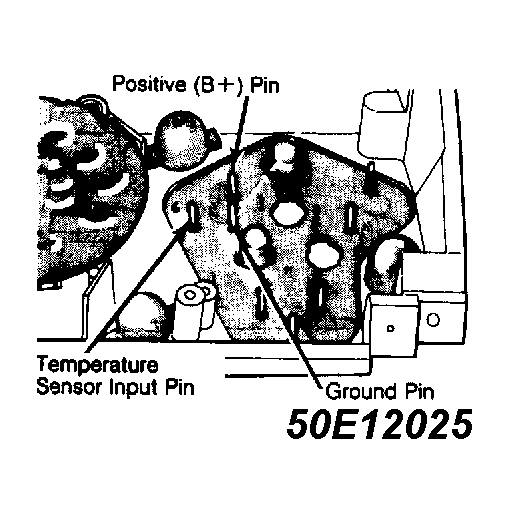

Fig 1: Temperature Gauge Circuit Test (Horizon & Omni)

Fig 2: Temperature Gauge Circuit Test (Aries, Caravelle, Reliant & 600)

Fig 3: Temperature Gauge Circuit Test (Daytona, LeBaron Convertible/Coupe)

Fig 4: Temperature Gauge Circuit Test (Lancer & LeBaron GTS)

Fig 5: Temperature Gauge Circuit Test (Dynasty & New Yorker)

Fig 6: Temperature Gauge Circuit Test (Shadow & Sundance)
