Dynasty & New Yorker

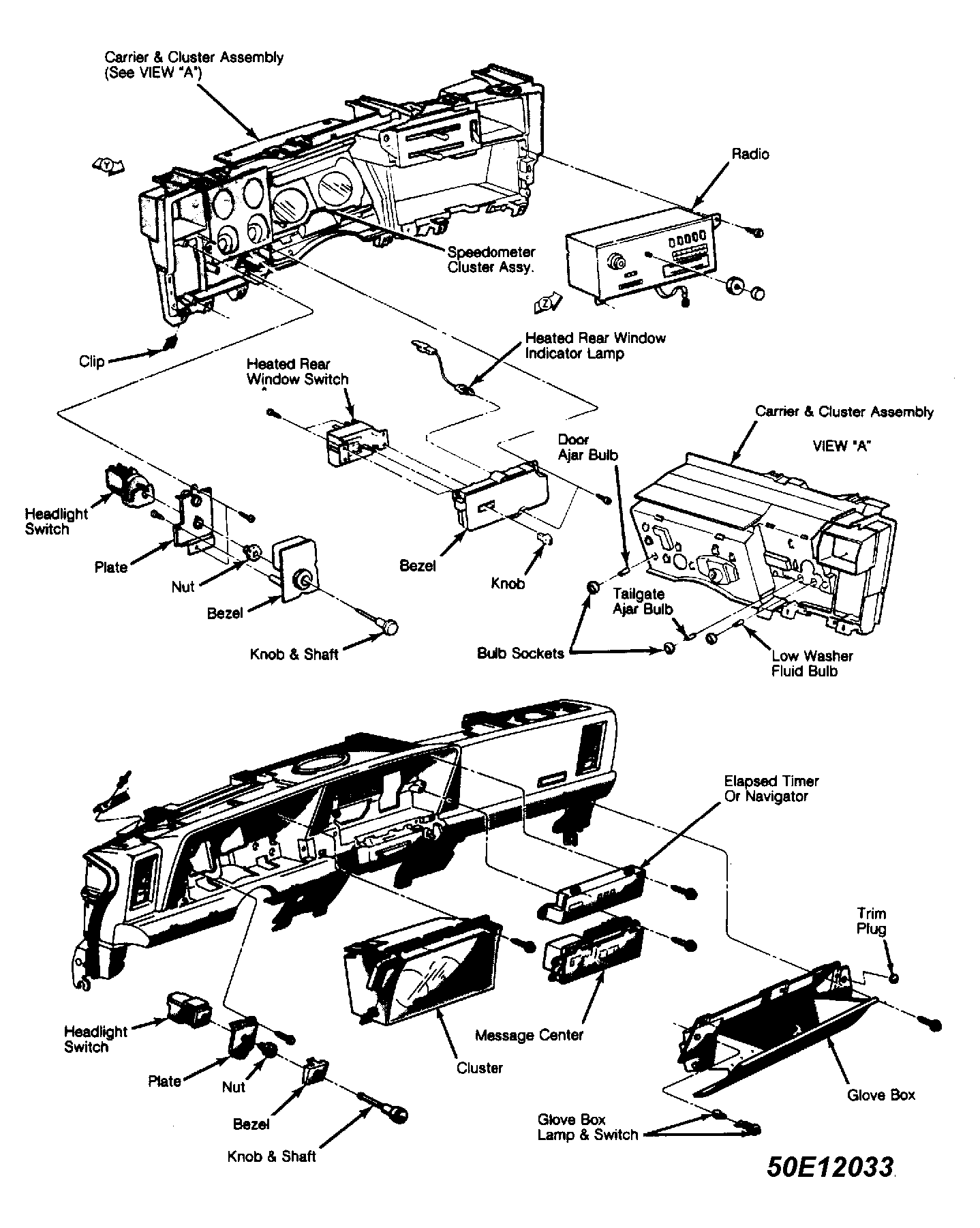

- Move gear selector lever to low position. Remove 5 Torx head screws from bezel. Pry bezel loose from fasteners on lower part of bezel. Lift bezel over steering wheel.
- Remove trip reset knob by pulling straight back. Remove 2 screws attaching mask and lens to cluster. Remove 2 screws attaching mask and lens and cluster to instrument panel.
- Remove lower steering column cover. Remove speedometer and disconnect speedometer cable. Remove cluster assembly.
- To install, reverse removal procedure.
