All FWD Models

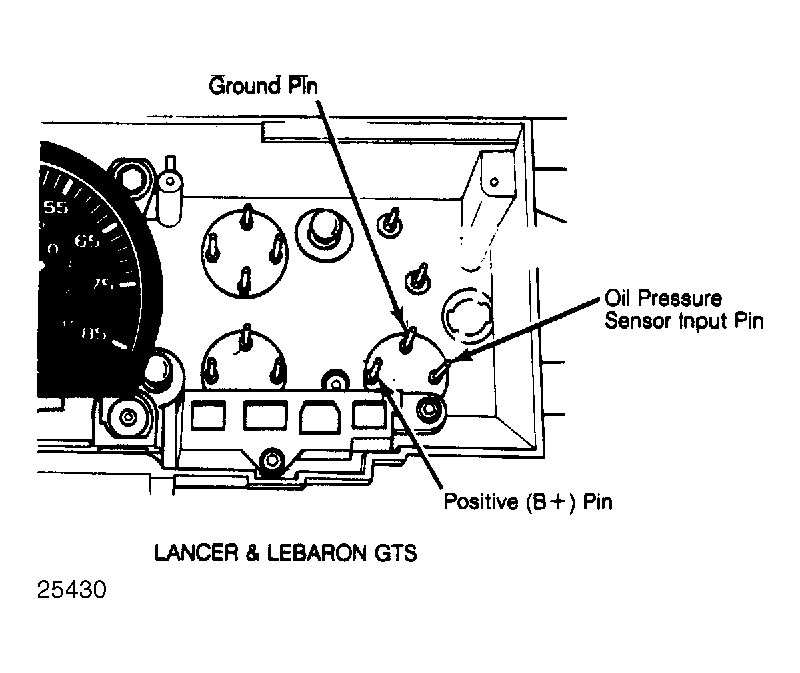

Remove oil pressure gauge or temperature/oil pressure gauge assembly. Check for continuity in wire between oil pressure sensor and oil pressure sensor input pin. Check for battery voltage at positive (B+) pin and ground pin. See Figure through Figure .
