Wheel Bearings: Installation

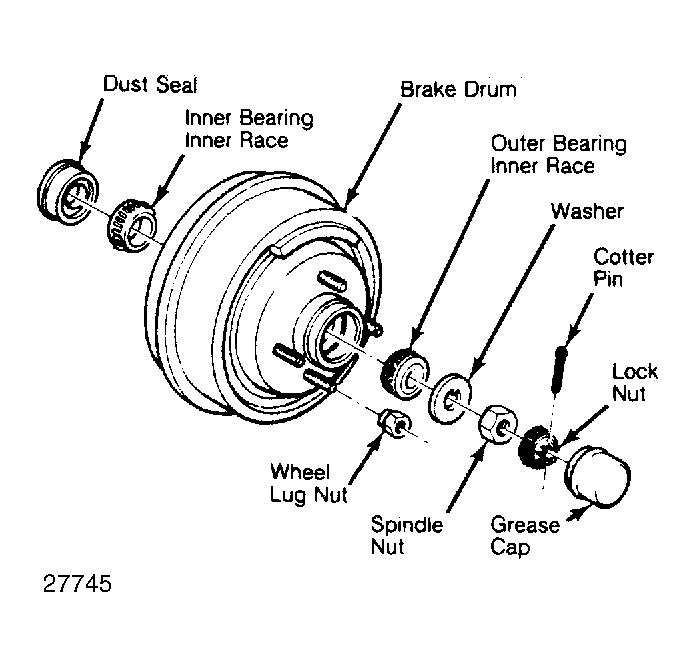

- Seat new inner and outer bearing outer races against shoulder in hub. Force lubricant between all bearing rollers. Install inner bearing inner race and new seal. Position seal lip inward. Install seal flush with end of hub.
- Install drum on spindle and install outer bearing, washer and adjusting nut. Adjust wheel bearings as previously described. Install lock nut and cotter pin. Install wheel and tire assembly and lower vehicle.
