Removal (RWD Models)

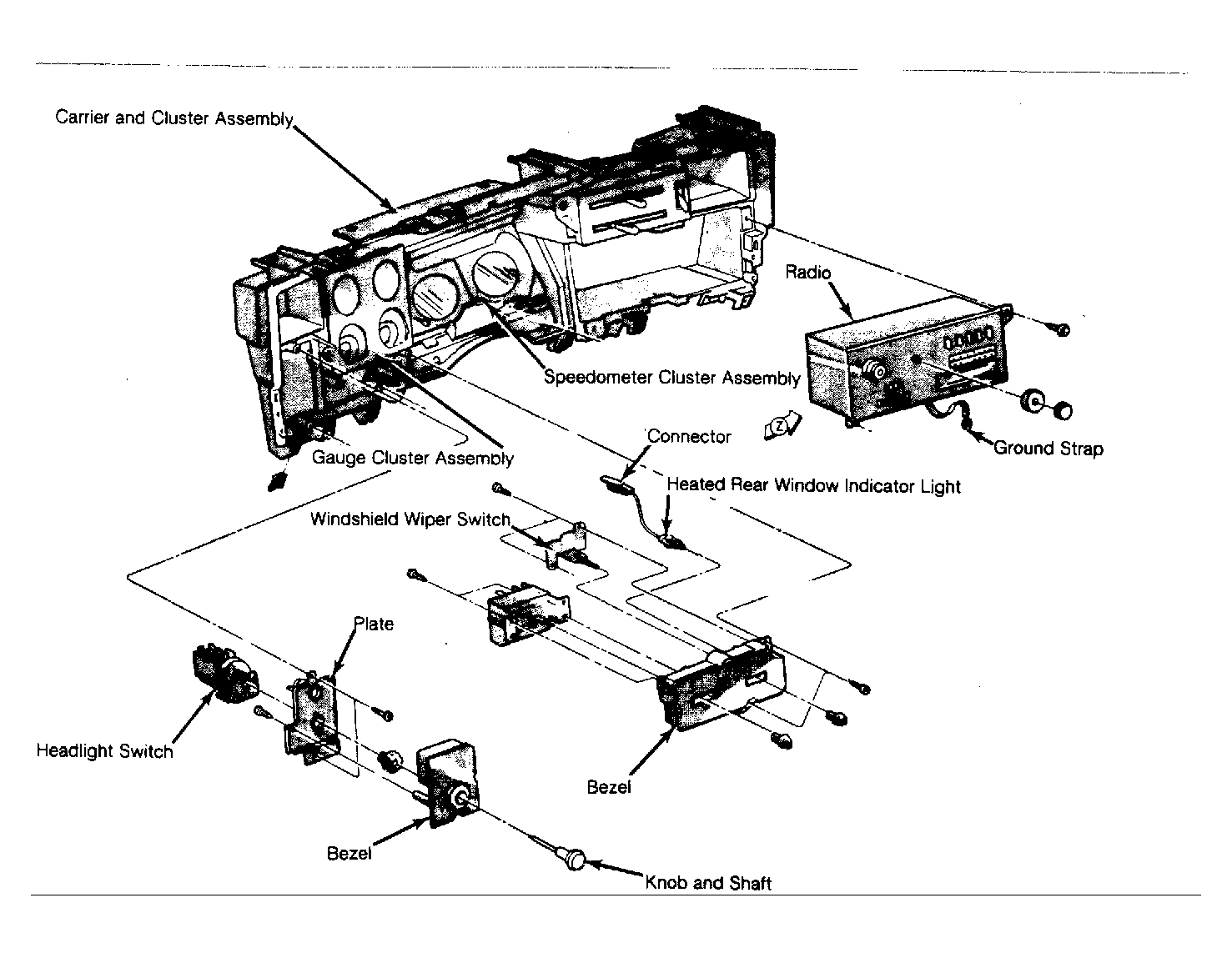

Fig 1: Diplomat, 5th Avenue, Gran Fury and Newport Instrument Panel
G2103
  1. Remove cluster bezel screws. Position gearshift in 1st gear and pull bezel away from dash. Remove gearshift pointer by loosening set screw on side of column.
  2. Disconnect speedometer cable and remove cluster screws. Disconnect wiring and remove cluster. Remove odometer knob. Remove 4 plastic pins and pull lens and mask away from cluster housing.
  3. Remove 2 screws and speedometer. Disconnect odometer switch connector, if equipped. To remove separate gauge cluster, remove 3 screws, disconnect wiring and remove cluster. To remove circuit boards, pry away from cluster assembly and remove voltage limiter.
