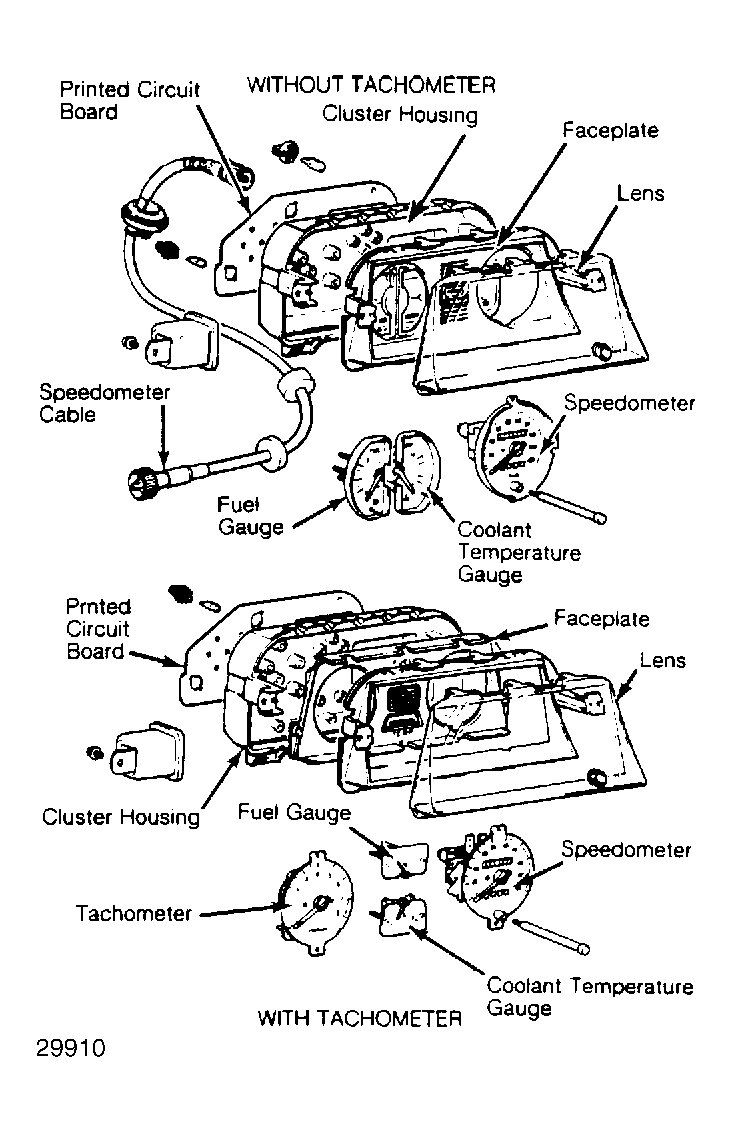

Removal & Installation (Colt Vista)
- Disconnect negative battery cable. Remove steering wheel and ashtray. Remove cluster hood mounting screws and pull cluster hood slightly toward rear. Unplug electrical connectors from cluster hood. Remove cluster hood from instrument panel.
- Remove 4 cluster mounting screws and pull cluster slightly toward rear. Disconnect speedometer cable and unplug electrical connectors. Remove instrument cluster. To install, reverse removal procedure.
