Oil Pump: Installation

To install, reverse removal procedure, assuring that oil pump gear mating marks are aligned and that Woodruff key on counterbalance shaft fits in keyway of driven gear.

CAUTION: Prior to installing oil pump (all models), fill with .33oz (10 cc) of engine oil to prime pump.

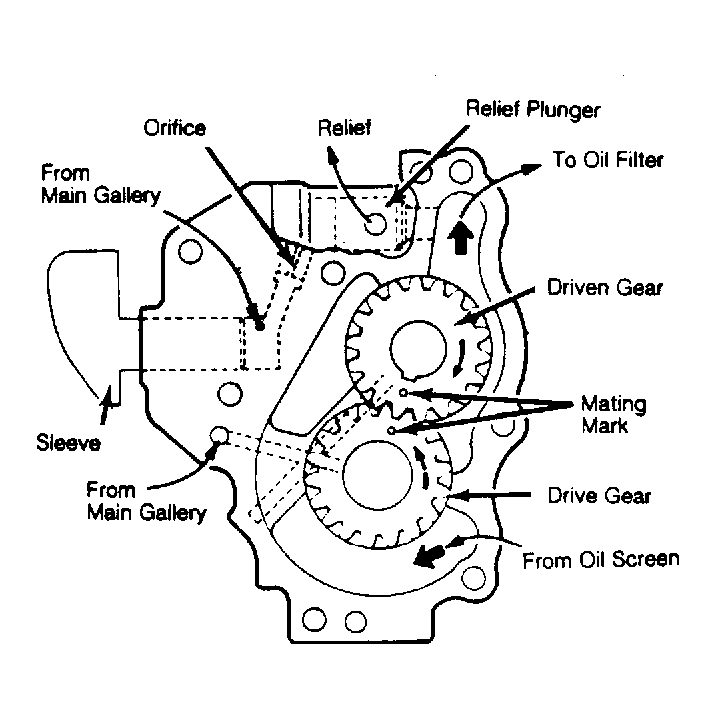

Fig 1: Mating Marks of Oil Pump Gears Align marks during assembly.
G82081
OIL PUMP SPECIFICATIONS

Application Clearance: In. (mm)
Gear Tip-to-Body Clearance .0043-.0059 (.11-.15)
Gear End Play .0024-.0047 (.06-.12)
Drive Gear-to-Bearing .0008-.0020 (.02-.05)
Drive Gear-to-Rear Bearing .0016-.0028 (.04-.07)
