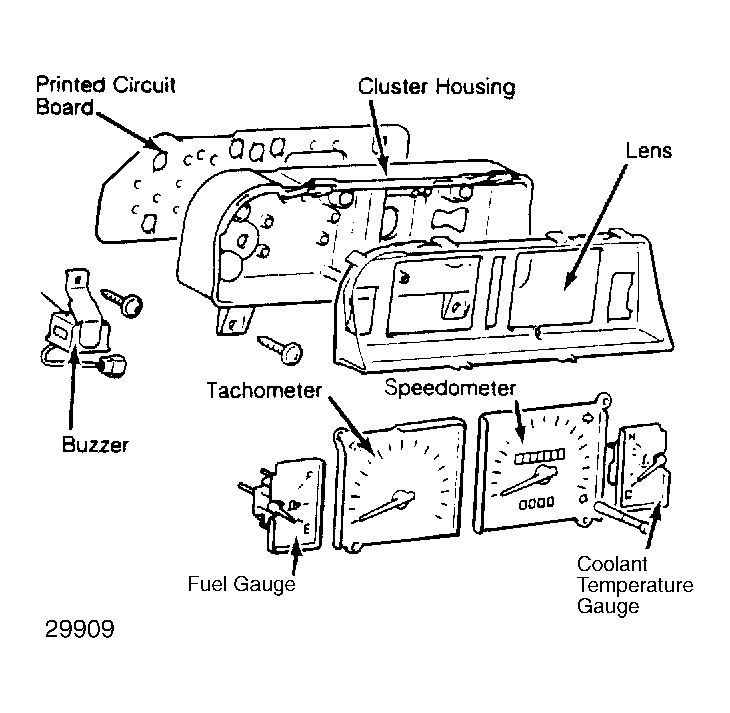

Removal & Installation (Colt)
- Disconnect negative battery cable. Remove steering wheel. Remove heater control knobs. Remove instrument cluster panel mounting screws. Remove light switch, wiper switch, clock and indicator connectors. Remove cluster panel.
- Remove instrument cluster attaching screws. Pull out instrument cluster slightly, remove speedometer cable and disconnect electrical connectors. Remove instrument cluster. To install, reverse removal procedure.
