Challenger & Sapporo With Rear Drum Brakes

  1. Remove bleeder cap from one of the bleeder screws. Connect one end of a vinyl tube to bleeder screw. Place other end in a glass container. Loosen bleeder screw.

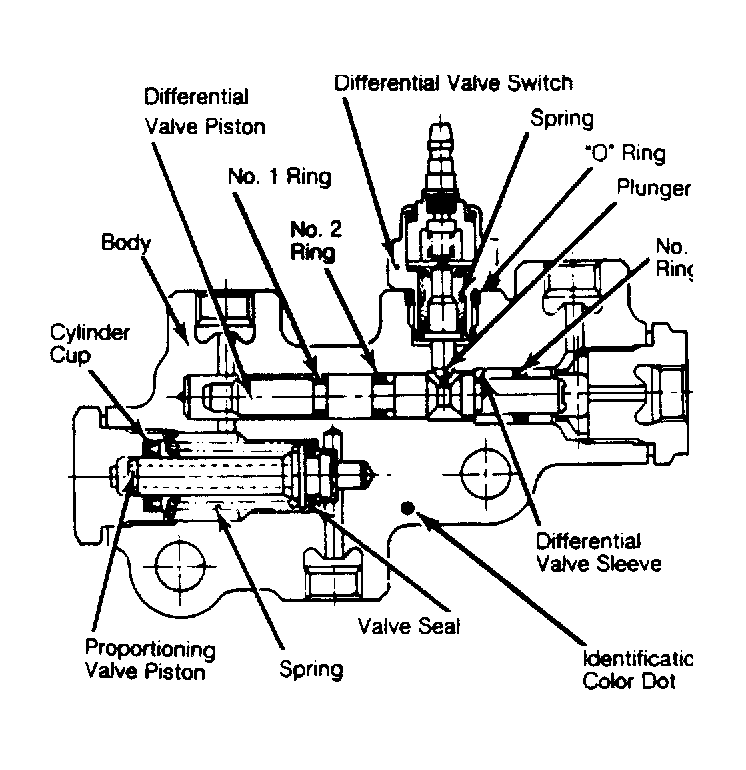

  2. Connect ohmmeter leads to combination valve's differential valve switch and ground. See Figure. Depress brake pedal. If continuity exists, differential valve switch is good.
