Rear Disc Brake Pads: Installation

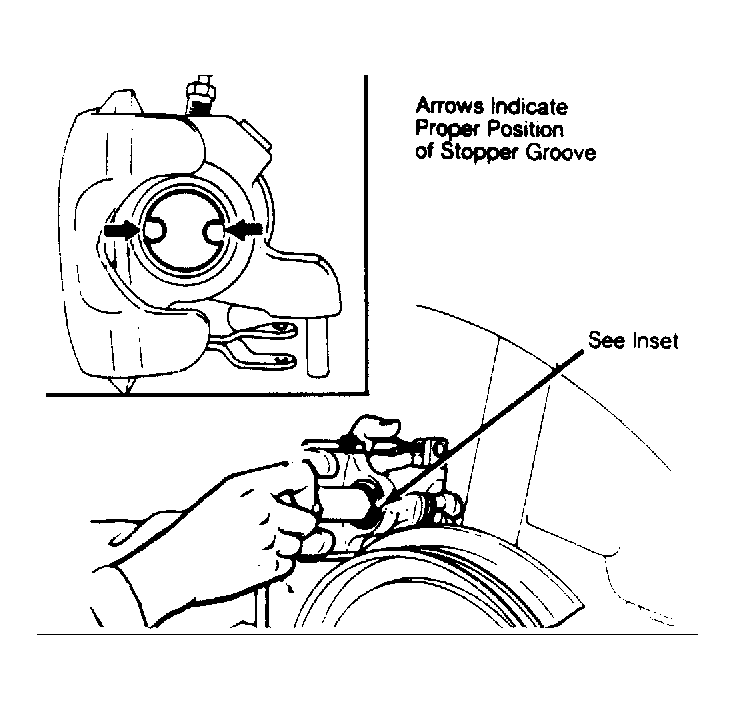

To install, reverse removal procedure. Using a special driver (MB990652), screw the piston into its original position using a clockwise rotation. Ensure piston stopper groove is positioned, so projection on back of pad will securely fit groove. See Figure. Pad clips must be installed properly.

NOTE: DO NOT  use a screwdriver to push piston into original position.
