Removal (Challenger & Sapporo)

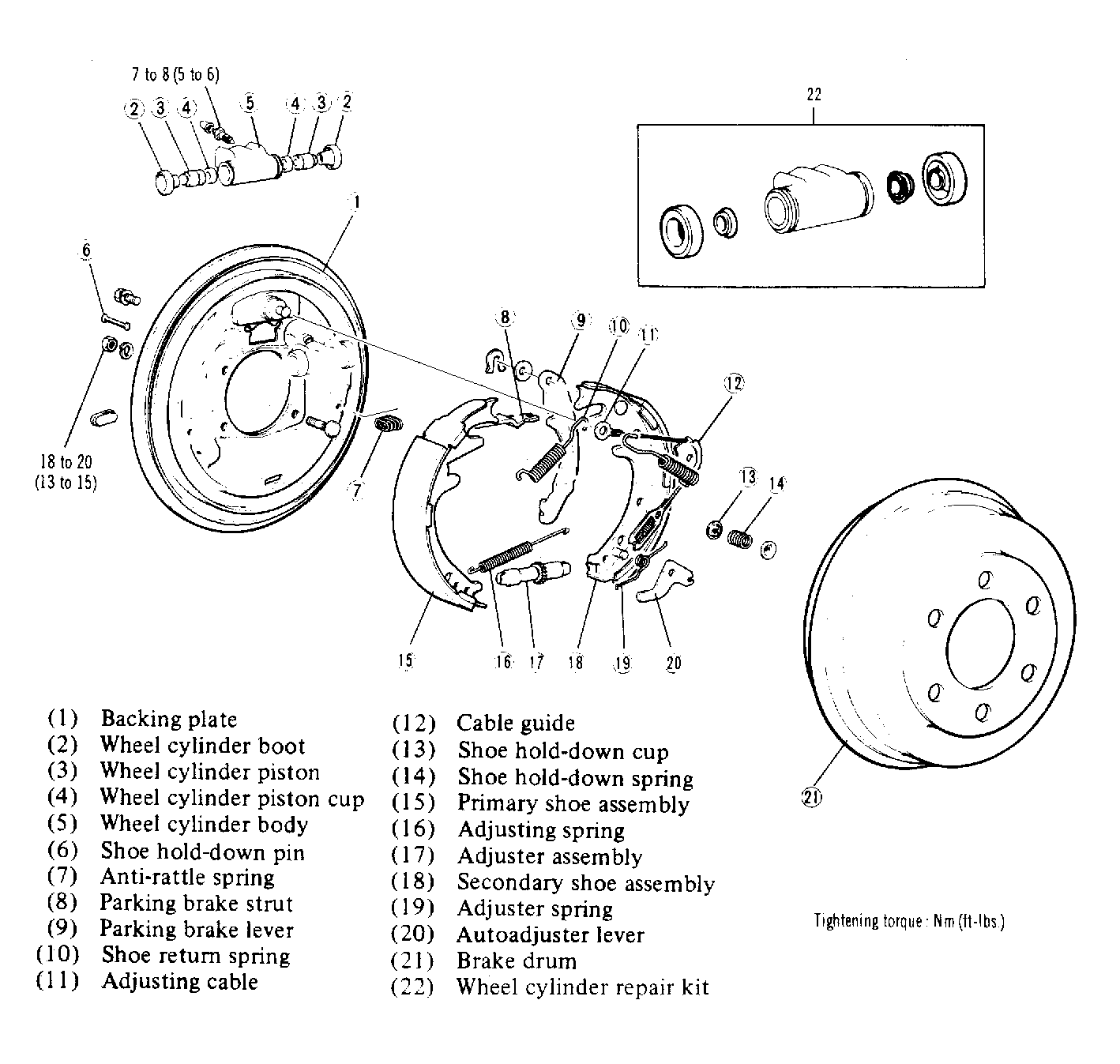

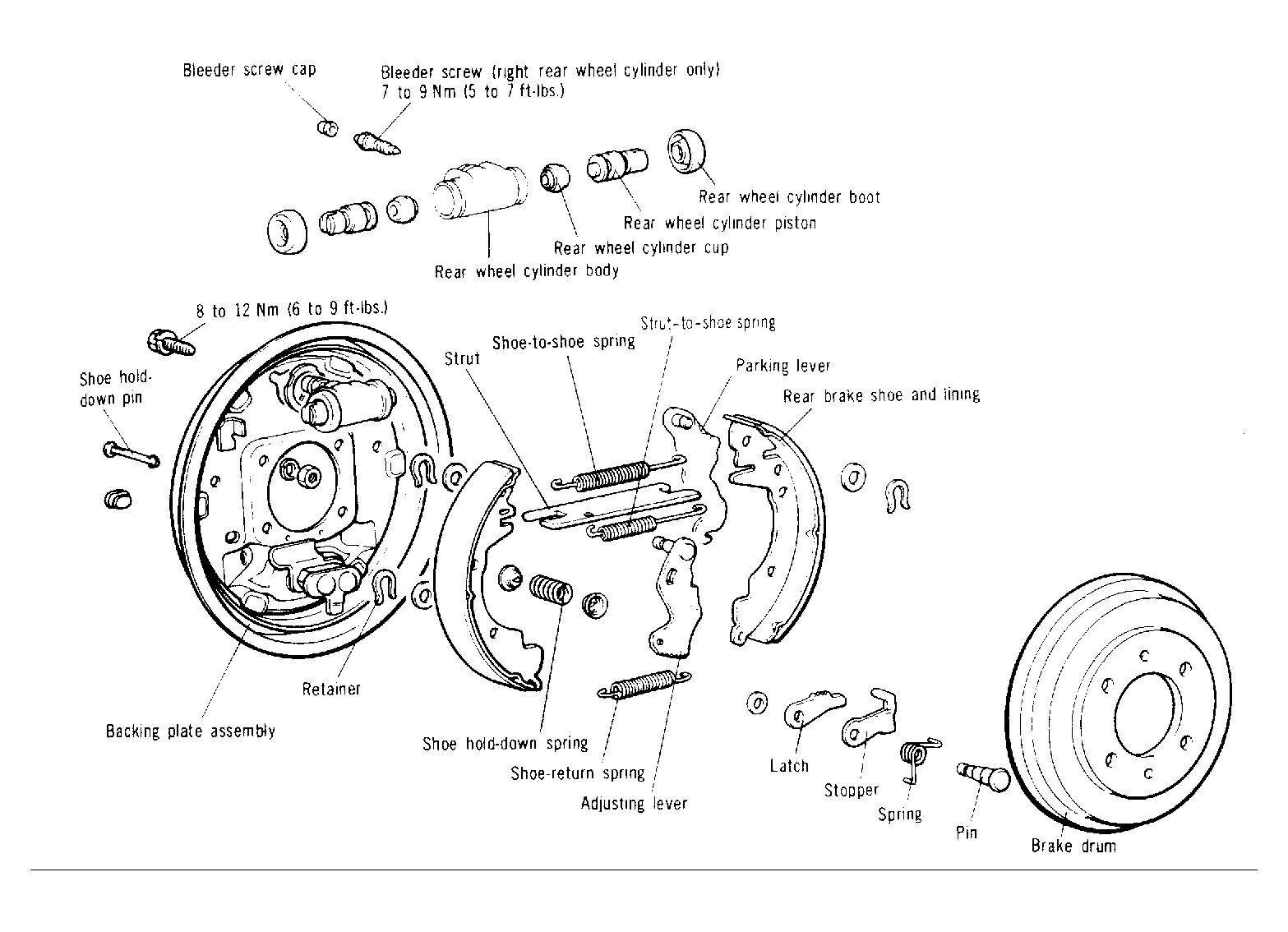

- Raise and support vehicle. Remove brake drum and remove hold-down springs. See Fig 1 & Fig 2 . Disconnect strut-to-shoe spring and upper shoe return spring end from trailing shoe.
- Remove trailing shoe and lower return spring. Hold adjuster latch down, pull adjuster lever toward center of brake.
- Remove leading shoe assembly. Remove upper shoe return spring and strut-to-shoe spring.
