Aries & Reliant

Install switch in retaining bracket and push it forward as far as possible. Brake pedal will move slightly forward. Gently pull back on pedal, bringing striker back toward switch until pedal will go no farther. This will cause switch to ratchet backward to correct position.

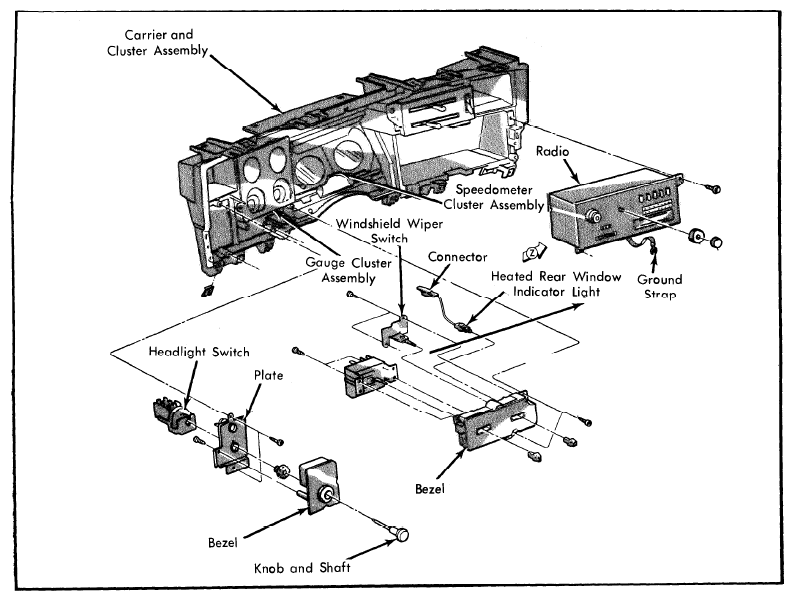

Fig 1: Diplomat & Lebaron Instrument Cluster
G09351754Courtesy of CHRYSLER GROUP, LLC
