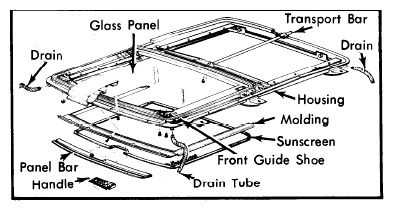

Roof Panel And Trim: Installation
To install, reverse removal procedures and check for proper operation.
Position rear guides in tracks. Connect transport cable, then move panel back while holding switch "ON". Check position of small rear guide shoe, insert guide pins, and adjust panel. Reverse removal procedures to complete installation.
Courtesy of CHRYSLER GROUP, LLC
