Steering Column Lowering & Raising: Lowering
- Disconnect fusible link, remove steering column cover, lower reinforcement and gearshift pointer from steering column on Aspen, Volare, Diplomat and LeBaron.
Courtesy of CHRYSLER GROUP, LLC

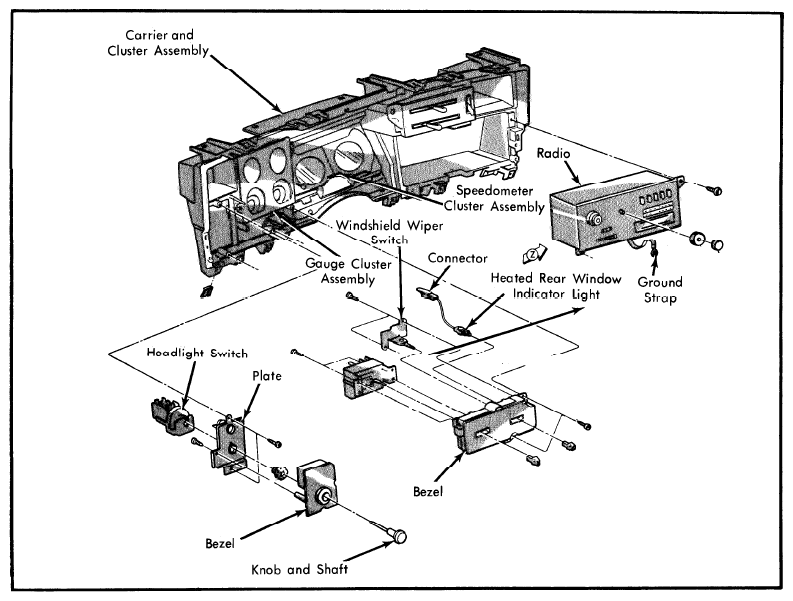

- Remove lower bezel and cluster reinforcement bracket for Cordoba and Mirada.
- Remove lower left and right bezels, and gearshift pointer cable for St. Regis, Newport and New Yorker.
- Remove 3 toe plate bolts at firewall, 2 nuts and washers attaching steering column support bracket and lower steering column to seat.
