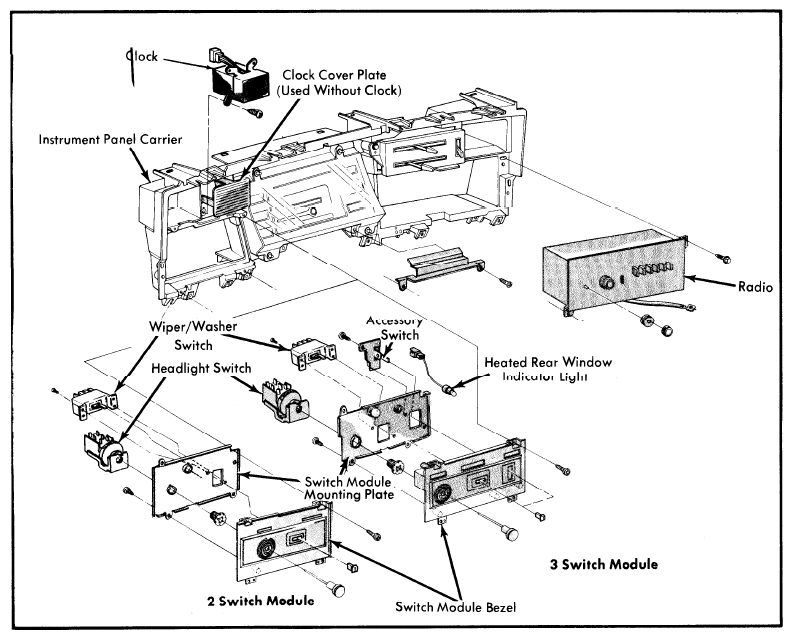

Removal (Omni, Horizon)
- Disconnect battery. Remove lens bezel assembly by pulling retaining pins (located at lower corners) out with pliers. Pull panel back and down, then remove. Remove 2 screws and speedometer, then disconnect 2 wiring harness connectors.
- Remove cluster screws at lower corners of cluster, then disengage from spring clips and pull cluster out. Disconnect clock wires and remove cluster from vehicle. Gauges may be serviced by removing mounting screws.
Courtesy of CHRYSLER GROUP, LLC
