Combination Gauge (Console Mounted): Pickups

Remove screws securing console and pull console rearward. Working behind the console, remove 3 mounting screws and remove combination gauge from console. Disconnect electrical plug from combination gauge.

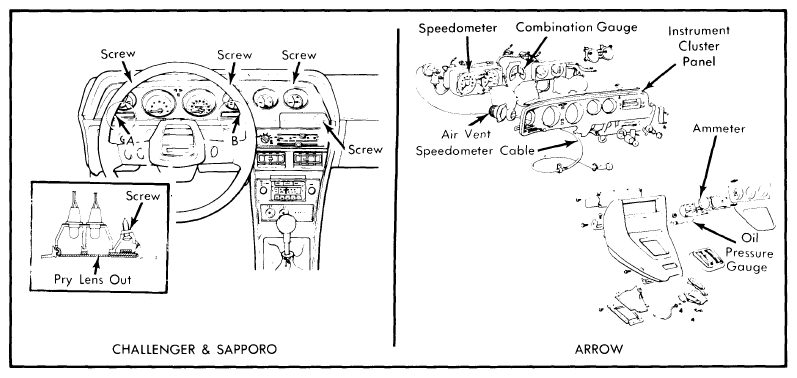

Fig 1: Chrysler Corp. Import Instrument Cluster Arrangements

Courtesy of CHRYSLER GROUP, LLC
