Sliding Panel, Halo Moulding Or Sun Shade: Installation

To install, reverse removal procedure.

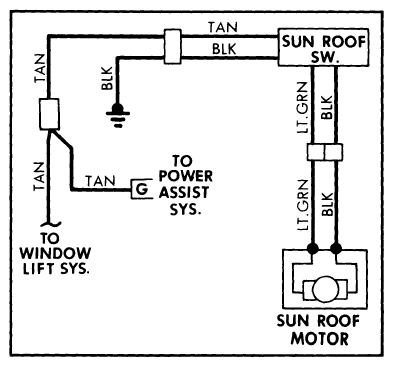

Fig 1: Chrysler Corp. Sunroof Wiring Diagram

Courtesy of NOT AVAILABLE

To install halo moulding, reverse removal procedure.

To install, reverse removal procedure.

To install, reverse removal procedure.

1. Position rear slide surface of halo moulding into track assembly pulling down on rear center section of moulding to engage slide surfaces into upper track.
2. Slide halo moulding and glass panel rearward approximately 3", pull forward center portion of moulding down and install front horizontal tabs into track. Position halo moulding and attach with 3 retaining screws.

To install, reverse removal procedure.
